Siemens 6SL3320-1TG31-0AA3

Siemens 6SL3320-1TG31-0AA3 – Overview

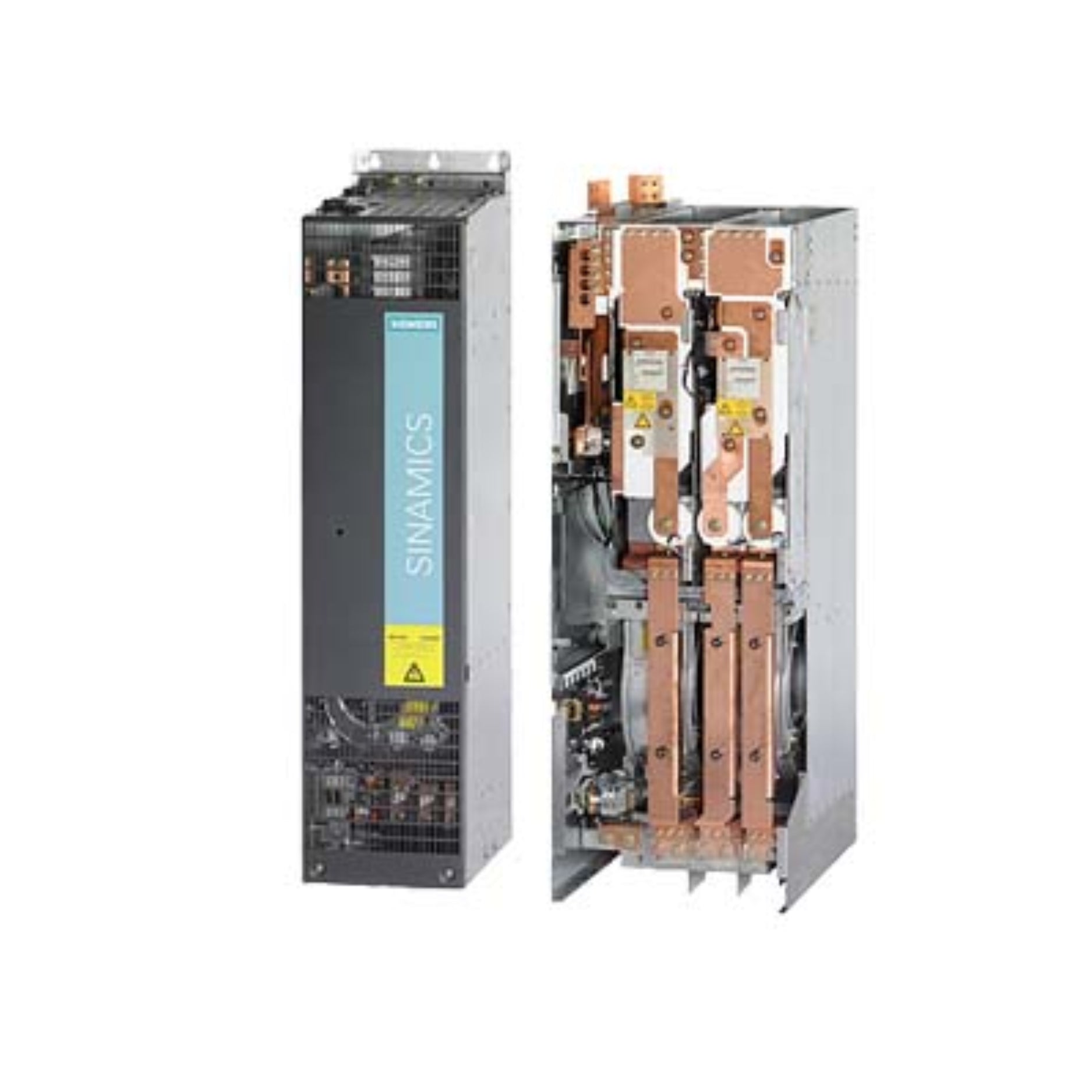

The Siemens SINAMICS 6SL3320-1TG31-0AA3 is a single motor module (chassis format) in the S120 drive family. It is designed to convert a high-voltage DC link into a three-phase AC motor output. The module supports efficient, high power motor control in demanding industrial applications, with internal air cooling and support for safety features and feedback integration.

Key Features

• Supports high DC link input (675 to 1035 V DC)

• 3-phase AC output capability in the 500–690 V range

• Continuous current rating: 100 A

• Chassis / open-frame format (IP20)

• Internal forced-air cooling

• Integrated support for safety functions and Drive-CLiQ interface

• Suitable for modular multi-motor systems sharing DC bus

Technical Specifications

• Part Numbers:
    – 6SL3320-1TG31-0AA3
    – 6SL3320/1TG31/0AA3

• DC Input Voltage: 675 V to 1035 V

• AC Output Voltage: 500 V to 690 V, three-phase

• Continuous Output Current: 100 A

• Cooling: Internal forced-air

• Protection / Enclosure: Chassis format (IP20)

• Feedback / Interface: Drive-CLiQ support, safety integrated features

• Other Environmental / Installation Considerations:
    – Frame / chassis mounting in appropriate enclosures
    – Proper ventilation for air cooling
    – Standard industrial ambient conditions

Applications

• High-power AC motors (pumps, compressors, turbines)

• Modular drive systems in process control environments

• Systems requiring high voltage and current motor modules

• Industrial installations using Sinamics S120 architecture

Why Choose Siemens 6SL3320-1TG31-0AA3

• High voltage DC link to AC conversion capability

• Good current handling (100 A) in a compact module

• Integration with SINAMICS S120 architecture for scalable systems

• Air-cooled design for ease of installation

• Designed for modern industrial motor drive systems

Order Now

The Siemens 6SL3320-1TG31-0AA3 SINAMICS S120 single motor module is available to order.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
