Siemens 3SU1801-0AA00-0AB1

Siemens 3SU1801-0AA00-0AB1 | SIRIUS ACT 22mm Plastic Enclosure

Overview:

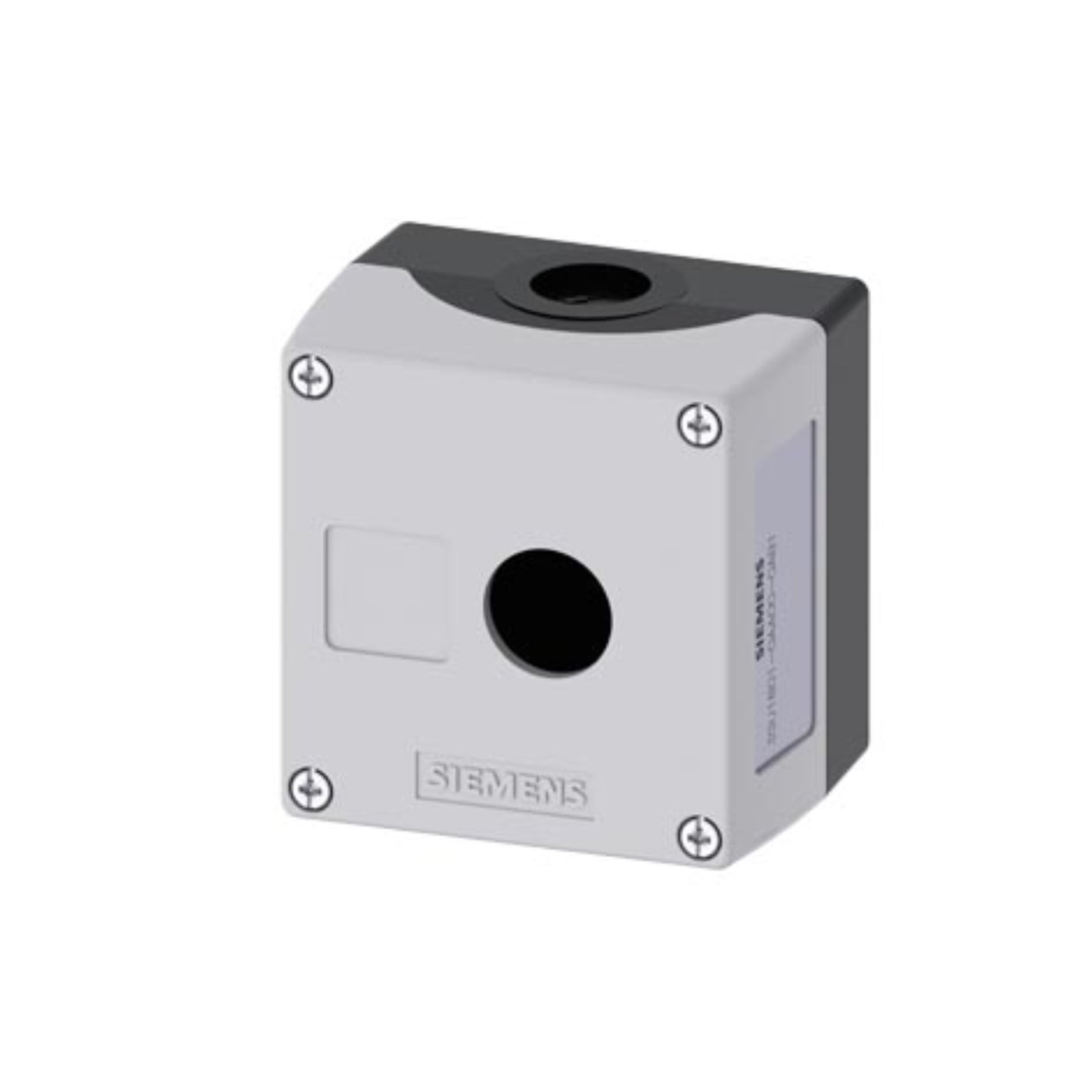

The Siemens 3SU1801-0AA00-0AB1 is part of the SIRIUS ACT series, offering a durable and aesthetically designed enclosure for 22mm command devices. Constructed from high-quality plastic with a gray top, this enclosure is tailored for a single control point and includes a recess specifically designed for labeling, ensuring clear identification in control panels.

Key Features:

• Design:
  • Enclosure Material: High-grade plastic ensures durability and resistance to industrial environments.
  • Color: Gray top part provides a neutral and professional appearance.
  • Control Points: Accommodates one 22mm command device, suitable for various control applications.
  • Labeling Recess: Integrated recess allows for easy and secure placement of labels, facilitating clear identification.
• Protection Ratings:
  • IP66, IP67, IP69K: Offers superior protection against dust, water ingress, and high-pressure cleaning, making it suitable for harsh industrial environments.
  • NEMA Ratings: Complies with NEMA standards 1, 2, 3, 3R, 4, 4X, 12, and 13, ensuring versatility across various applications.
• Mounting and Installation:
  • Mounting Type: Designed for floor mounting, providing stability and ease of installation.
  • Cable Entries: Equipped with multiple metric cable gland entries: one M20 entry each on the top, bottom, and rear, and one M16 entry on the side, offering flexible wiring options.
  • Dimensions: Compact design with dimensions of 85 mm in height, 85 mm in width, and 64 mm in depth, optimizing space within control panels.
• Environmental Specifications:
  • Operating Temperature: Suitable for a wide range of temperatures, from -25°C to +70°C, ensuring reliable performance in diverse conditions.
  • Storage Temperature: Can be stored safely within a temperature range of -40°C to +80°C.
  • Environmental Compliance: Meets various environmental standards, including RoHS compliance since October 1, 2014.

Technical Specifications:

• Product Type: Enclosure for command devices
• Part Number: 3SU1801-0AA00-0AB1
• Material: Plastic
• Color: Gray top part
• Number of Control Points: 1
• Protection Class: IP66, IP67, IP69K
• NEMA Rating: 1, 2, 3, 3R, 4, 4X, 12, 13
• Dimensions (H x W x D): 85 mm x 85 mm x 64 mm
• Mounting Diameter: 22.3 mm with a positive tolerance of 0.4 mm
• Cable Entries: 1 x M20 (top), 1 x M20 (bottom), 1 x M20 (rear), 1 x M16 (side)
• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +80°C
• Weight: Approximately 247 grams
• Standards Compliance: RoHS compliant since October 1, 2014

Applications:

• Industrial Control Panels: Ideal for housing emergency stop buttons, start/stop controls, and other critical command devices.
• Machinery and Equipment: Provides a protective enclosure for control devices on various industrial machinery, ensuring safety and reliability.
• Automation Systems: Suitable for use in automated systems requiring robust and clearly labeled control points.
• Harsh Environments: With high protection ratings, it is well-suited for applications in environments exposed to dust, moisture, and rigorous cleaning processes.

The Siemens 3SU1801-0AA00-0AB1 enclosure combines functionality, durability, and design, making it a reliable choice for various industrial applications requiring secure and accessible command device housing.
