Festo DSNU-32-100-PPS-A

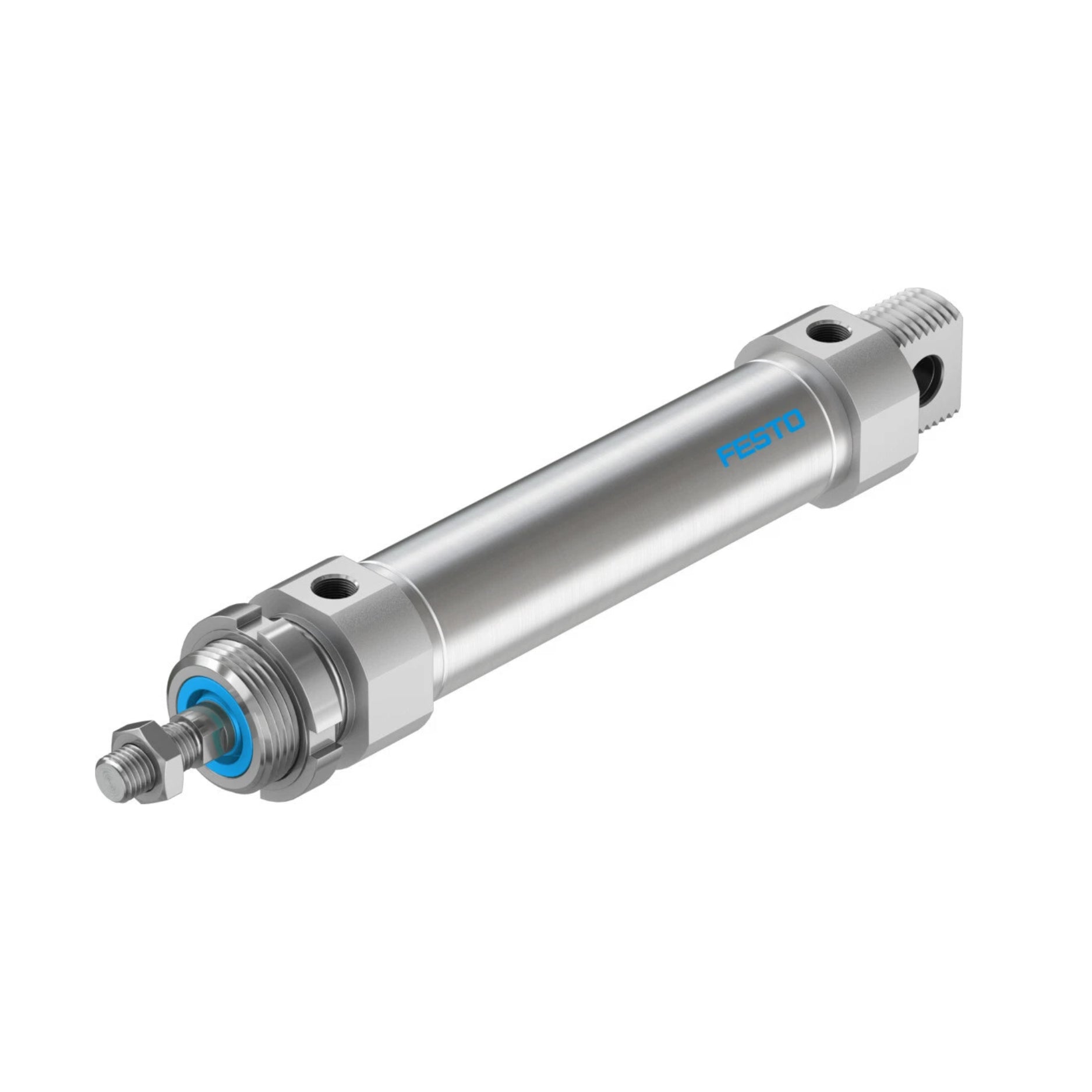

Festo DSNU-32-100-PPS-A (559299) ISO Round Cylinder

Overview

The Festo DSNU-32-100-PPS-A is a high-performance double-acting pneumatic round cylinder featuring a 32 mm piston diameter and 100 mm stroke. Built to ISO standards, this cylinder is ideal for precise linear motion in industrial automation applications. It includes self-adjusting pneumatic end-position cushioning, ensuring smooth operation and longer service life.

Key Features

• Mode of Operation: Double-acting

• Piston Diameter: 32 mm

• Stroke Length: 100 mm

• Theoretical Force at 6 bar: 482.5 N (advance stroke)

• Cushioning Type: Self-adjusting pneumatic end-position cushioning

• Design: Round cylinder (ISO standard)

• Mounting: Universal mounting options

• Construction: Corrosion-resistant, robust housing

• Compact and efficient design

Technical Specifications

• Manufacturer: Festo

• Part Number: DSNU-32-100-PPS-A

• GTIN: 4052568205751

• Series: DSNU

• Bore Size: 32 mm

• Stroke: 100 mm

• Force Output (at 0.6 MPa): 482.5 N

• Cushioning: Pneumatic, self-adjusting

• Operating Pressure Range: Typically up to 10 bar

• Standard Compliance: ISO 6432

• Condition: New

Applications

• Packaging machinery

• Conveyor systems

• Assembly automation

• General industrial use

• Compact linear actuation

Benefits

• Smooth and efficient movement

• Extended lifespan due to self-adjusting cushioning

• Easy to integrate with various mounting options

• Precise and repeatable performance

• Trusted Festo quality for demanding applications

Shipping & Availability

The DSNU-32-100-PPS-A is available for fast worldwide shipping.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
