Sharp LQ038Q5DR01

Sharp LQ038Q5DR01

Overview

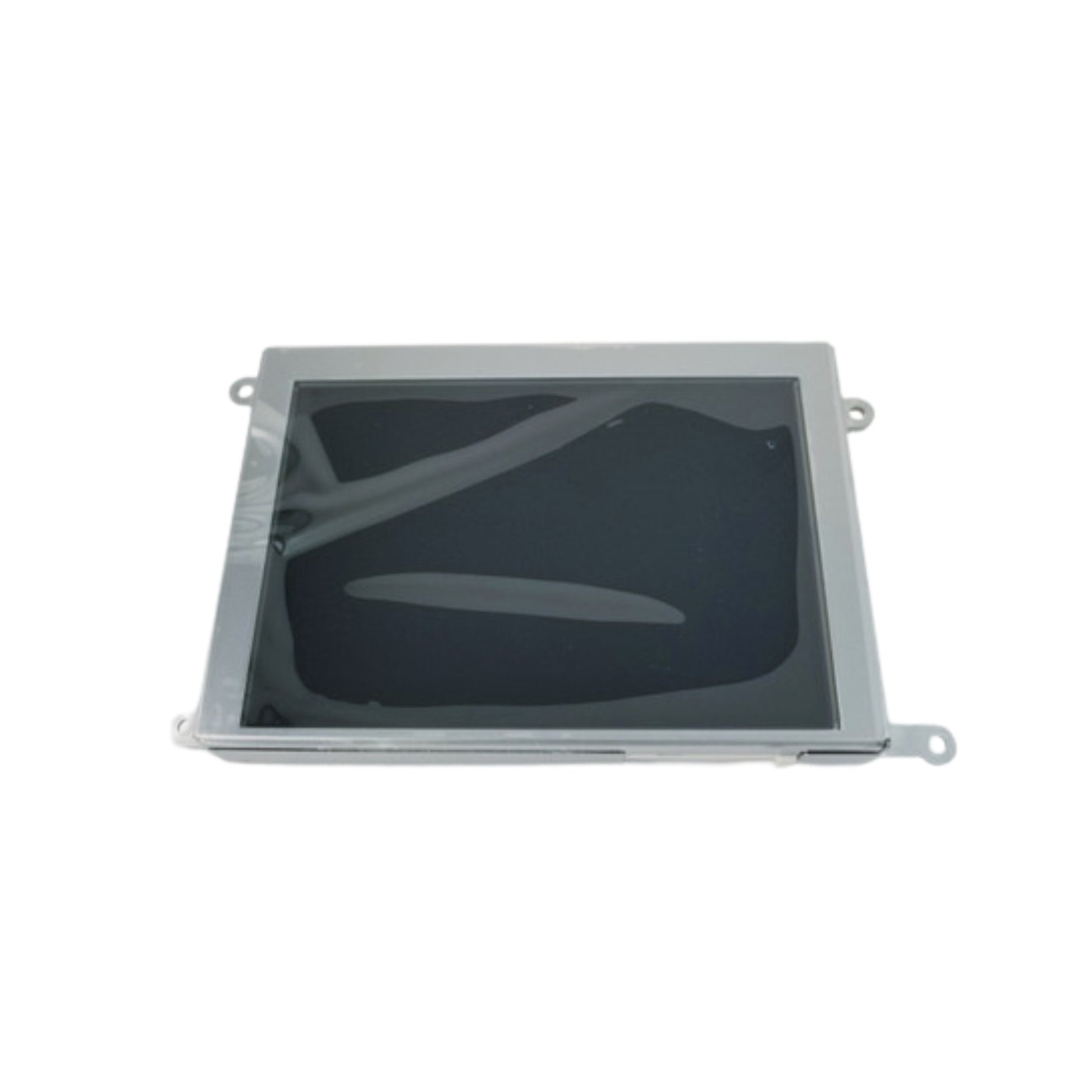

The Sharp LQ038Q5DR01 is a 3.8-inch TFT LCD module designed for handheld and embedded applications requiring clear visuals and low power consumption. With its 320×240 (QVGA) resolution and LED backlight, this display offers high reliability and consistent image quality across various industrial and portable environments.

Key Features

• 3.8-inch TFT LCD panel

• QVGA resolution: 320×240

• LED backlight for long lifespan and energy efficiency

• Compact and lightweight for space-limited systems

• Excellent image uniformity and viewing angles

• Reliable Sharp quality for continuous operation

Technical Specifications

• Sharp Code: LQ038Q5DR01

• Display Size: 3.8"

• Resolution: 320×240 (QVGA)

• Display Type: TFT LCD

• Backlight: LED

• Brightness: 350 cd/m² (typical)

• Contrast Ratio: 400:1 (typical)

• Viewing Angle: 120° horizontal / 100° vertical

• Interface: RGB

• Operating Temperature: –10 °C to +60 °C

• Storage Temperature: –20 °C to +70 °C

Applications

• Portable and handheld devices

• Industrial measurement equipment

• Medical and diagnostic instruments

• Human-Machine Interfaces (HMIs)

• Embedded control systems

Why Choose Sharp LQ038Q5DR01?

• Compact and power-efficient TFT LCD solution

• Sharp display technology ensures clear, vivid images

• Long-life LED backlight for dependable use

• Optimized for embedded and mobile industrial systems

Order Now

Enhance your compact device or industrial system with the Sharp LQ038Q5DR01 — a 3.8-inch TFT LCD built for clarity, reliability, and energy efficiency.
