SEW-Eurodrive MDX61B0150-503-4-00 | 15 kW Inverter Drive

SEW-Eurodrive MDX61B0150-503-4-00 | High-Performance 15 kW Inverter Drive for Industrial Applications

Overview

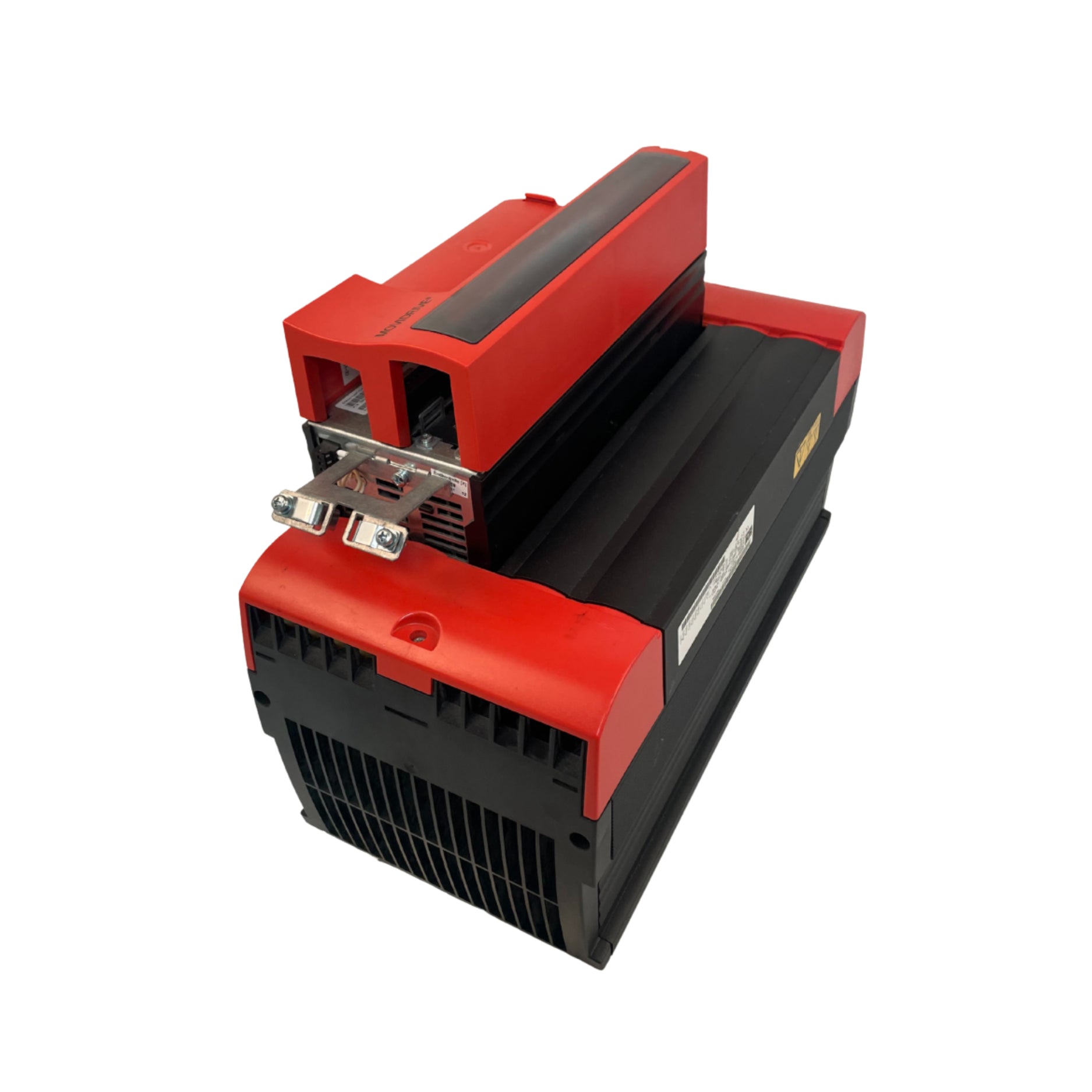

The SEW-Eurodrive MDX61B0150-503-4-00 is a 15 kW inverter drive from the MOVIDRIVE® B series, designed for precise control of both asynchronous AC and synchronous servo motors. With a supply voltage range of 3× 380–500 V AC and a rated output current of 32 A, this drive offers robust performance for various industrial automation applications.

Key Features

• Motor Power: 15 kW (20 HP)

• Supply Voltage: 3× 380–500 V AC

• Output Current: 32 A

• Output Power: 22.2 kVA

• Drive Size: Size 3

• Control Modes: VFC (Voltage Frequency Control), CFC (Current Frequency Control), SERVO

• PWM Frequency: Adjustable (4/8/16 kHz)

• Speed Range: –6000 to +6000 rpm

• Protection Class: IP20

• Cooling Method: Forced air cooling with temperature-controlled fan

• Integrated Safety Function: STO (Safe Torque Off) compliant with PL d (EN ISO 13849-1)

• Modular Design: Supports optional communication and encoder modules

Technical Specifications

• Model: MDX61B0150-503-4-00

• Input Voltage: 3× 380–500 V AC (±10%)

• Input Frequency: 50/60 Hz (±5%)

• Rated Output Current: 32 A

• Output Power: 22.2 kVA

• Recommended Motor Power: 15 kW (constant load)

• Dimensions (W×H×D): 200 × 465 × 308 mm

• Weight: 15 kg

• Ambient Temperature Range: 0 °C to +50 °C (with derating above 40 °C)

• Installation Altitude: Up to 1000 m without derating; derating applies above 1000 m

• Compliance: CE, UL, cUL, GOST-R, C-Tick

Applications

• Material Handling Systems

• Packaging Machinery

• Conveyor Systems

• Automated Assembly Lines

• Pumps and Fans

• Textile Machinery

Why Choose SEW-Eurodrive MDX61B0150-503-4-00?

• Versatile Motor Control: Suitable for both asynchronous and synchronous motors

• High Performance: Delivers precise speed and torque control

• Modular Expandability: Supports various communication and encoder options

• Compact Design: Space-saving installation in control cabinets

• Enhanced Safety: Integrated STO function for machine safety compliance

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
