SEW-Eurodrive MDX61B0040-5A3-4-0T | 4 kW Inverter Drive

SEW-Eurodrive MDX61B0040-5A3-4-0T | Advanced 4 kW Inverter Drive for Precision Motion Control

Overview

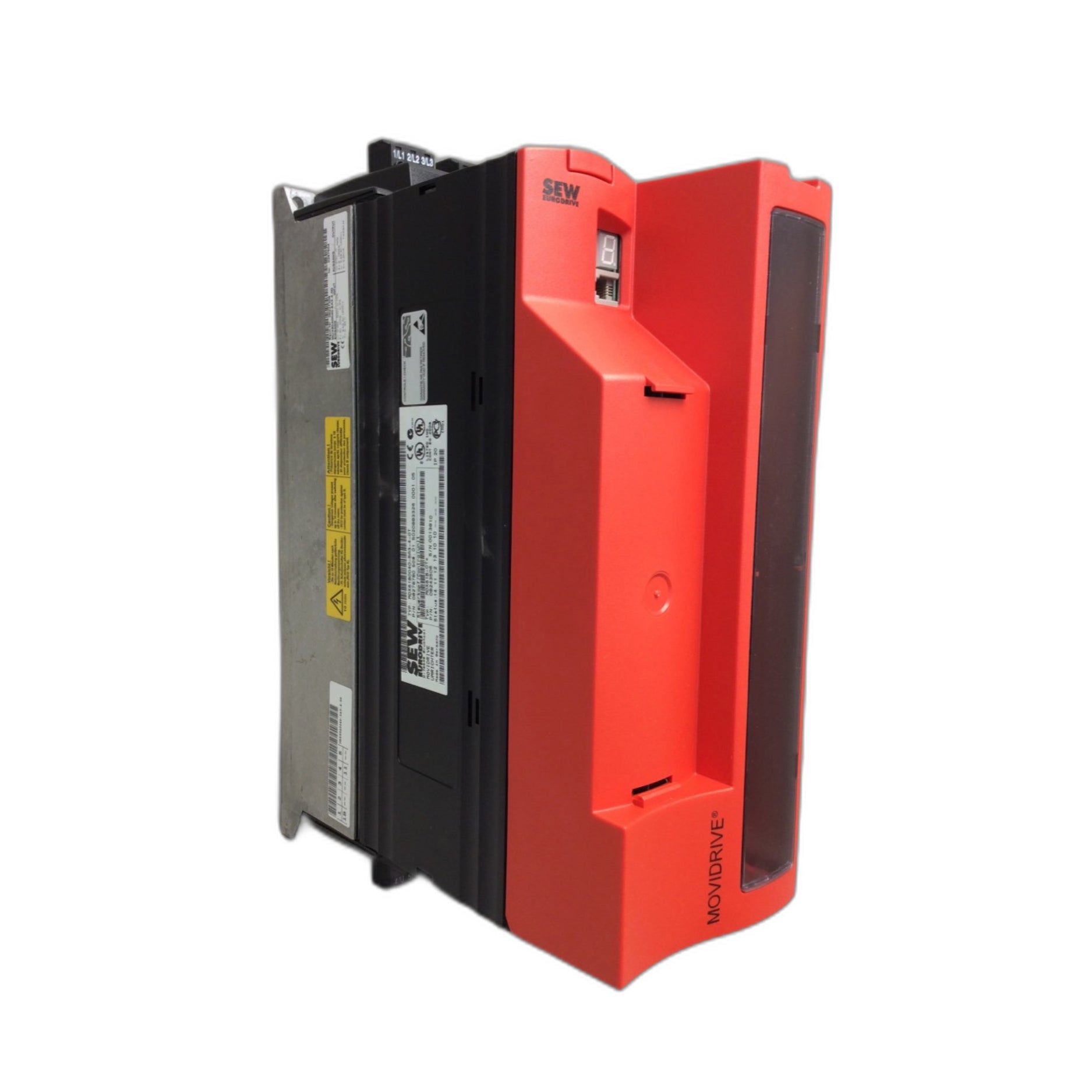

The SEW-Eurodrive MDX61B0040-5A3-4-0T is a 4 kW inverter drive from the MOVIDRIVE® B series, designed for precise control of both asynchronous AC and synchronous servo motors. As an application version, it includes advanced motion control features such as electronic cam and internal synchronous operation. With a supply voltage range of 3× 380–500 V AC and a rated output current of 10.5 A, this drive offers robust performance for various industrial automation applications.

Key Features

• Motor Power: 4 kW (5.4 HP)

• Supply Voltage: 3× 380–500 V AC

• Output Current: 10.5 A

• Output Power: 7.2 kVA

• Drive Size: Size 1

• Control Modes: VFC (Voltage Frequency Control), CFC (Current Frequency Control), SERVO

• Integrated Positioning: IPOSplus® positioning and sequence control system

• Application Version: Includes electronic cam and internal synchronous operation

• Protection Class: IP20

• Cooling Method: Forced air cooling

• Integrated Safety Function: STO (Safe Torque Off) compliant with PL d (EN ISO 13849-1)

• Modular Design: Supports optional communication and encoder modules

Technical Specifications

• Model: MDX61B0040-5A3-4-0T

• Input Voltage: 3× 380–500 V AC (±10%)

• Input Frequency: 50/60 Hz (±5%)

• Rated Output Current: 10.5 A

• Output Power: 7.2 kVA

• Recommended Motor Power: 4 kW (constant load)

• Dimensions (W×H×D): 105 × 314 × 234 mm

• Weight: 3.5 kg

• Ambient Temperature Range: 0 °C to +40 °C (with derating above 40 °C)

• Installation Altitude: Up to 1000 m without derating; derating applies above 1000 m

• Compliance: CE, UL, cUL, GOST-R, C-Tick

Applications

• Material Handling Systems

• Packaging Machinery

• Conveyor Systems

• Automated Assembly Lines

• Pumps and Fans

• Textile Machinery

Why Choose SEW-Eurodrive MDX61B0040-5A3-4-0T?

• Advanced Motion Control: Application version with electronic cam and internal synchronous operation

• Versatile Motor Control: Suitable for both asynchronous and synchronous motors

• High Performance: Delivers precise speed and torque control

• Modular Expandability: Supports various communication and encoder options

• Compact Design: Space-saving installation in control cabinets

• Enhanced Safety: Integrated STO function for machine safety compliance

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
