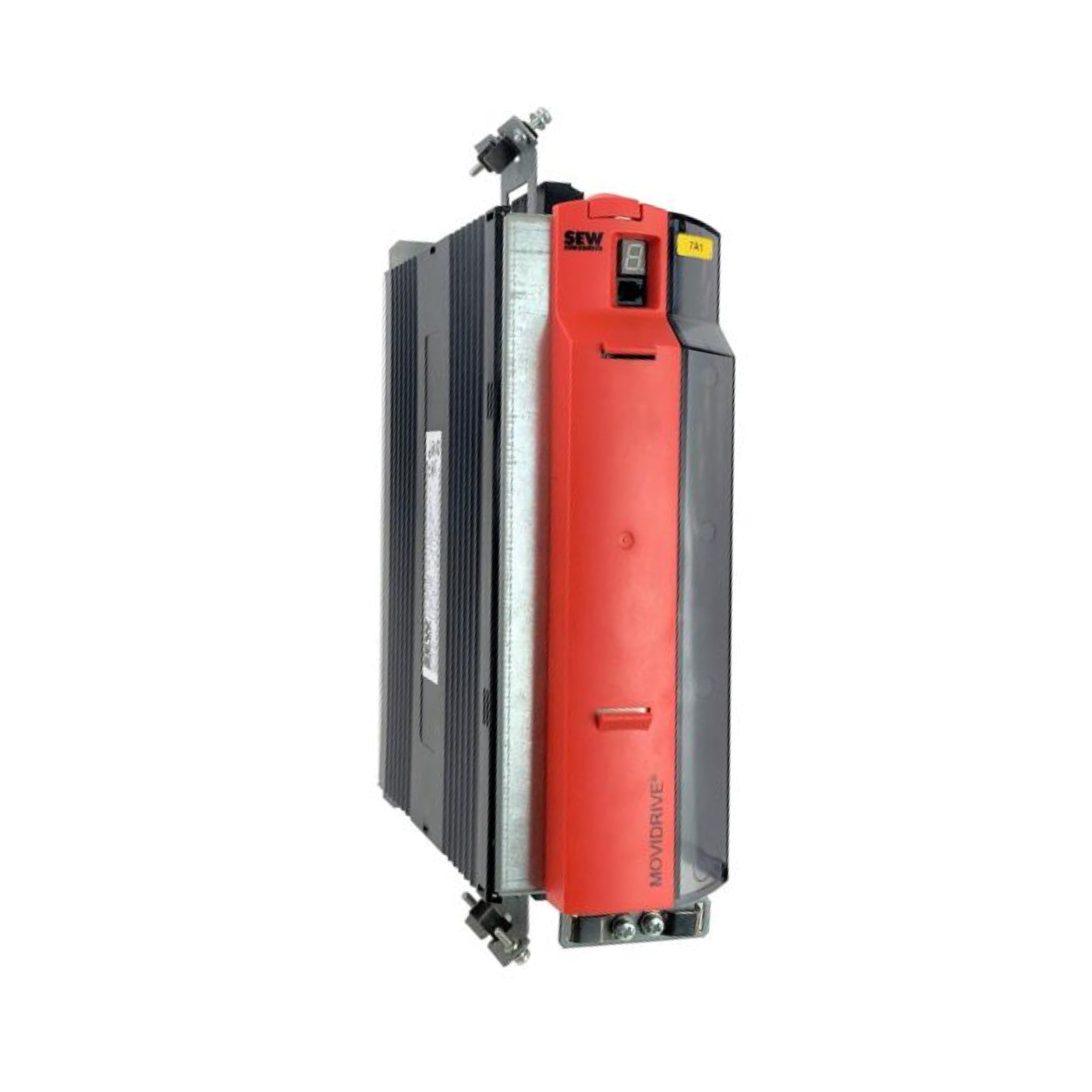

SEW-Eurodrive MDX61B0014-5A3-4-00 | Compact 1.5 kW Inverter Drive for Precise Motor Control
Overview
The SEW-Eurodrive MDX61B0014-5A3-4-00 is a 1.5 kW inverter drive from the MOVIDRIVE® B series, designed for precise control of both asynchronous AC and synchronous servo motors. With a supply voltage range of 3× 380–500 V AC and a rated output current of 4 A, this drive offers robust performance for various industrial automation applications.
Key Features
-
Motor Power: 1.5 kW (2 HP)
-
Supply Voltage: 3× 380–500 V AC
-
Output Current: 4 A
-
Output Power: 2.8 kVA
-
Drive Size: Size 0M
-
Control Modes: VFC (Voltage Frequency Control), CFC (Current Frequency Control), SERVO
-
Integrated Positioning: IPOSplus® positioning and sequence control system
-
Protection Class: IP20
-
Cooling Method: Forced air cooling
-
Integrated Safety Function: STO (Safe Torque Off) compliant with PL d (EN ISO 13849-1)
-
Modular Design: Supports optional communication and encoder modules
Technical Specifications
-
Model: MDX61B0014-5A3-4-00
-
Input Voltage: 3× 380–500 V AC (±10%)
-
Input Frequency: 50/60 Hz (±5%)
-
Rated Output Current: 4 A
-
Output Power: 2.8 kVA
-
Recommended Motor Power: 1.5 kW (constant load)
-
Dimensions (W×H×D): 95 × 317 × 260 mm
-
Weight: 2.8 kg
-
Ambient Temperature Range: 0 °C to +50 °C (with derating above 40 °C)
-
Installation Altitude: Up to 1000 m without derating; derating applies above 1000 m
-
Compliance: CE, UL, cUL, GOST-R, C-Tick
Applications
-
Material Handling Systems
-
Packaging Machinery
-
Conveyor Systems
-
Automated Assembly Lines
-
Pumps and Fans
-
Textile Machinery
Why Choose SEW-Eurodrive MDX61B0014-5A3-4-00?
-
Versatile Motor Control: Suitable for both asynchronous and synchronous motors
-
High Performance: Delivers precise speed and torque control
-
Modular Expandability: Supports various communication and encoder options
-
Compact Design: Space-saving installation in control cabinets
-
Enhanced Safety: Integrated STO function for machine safety compliance
