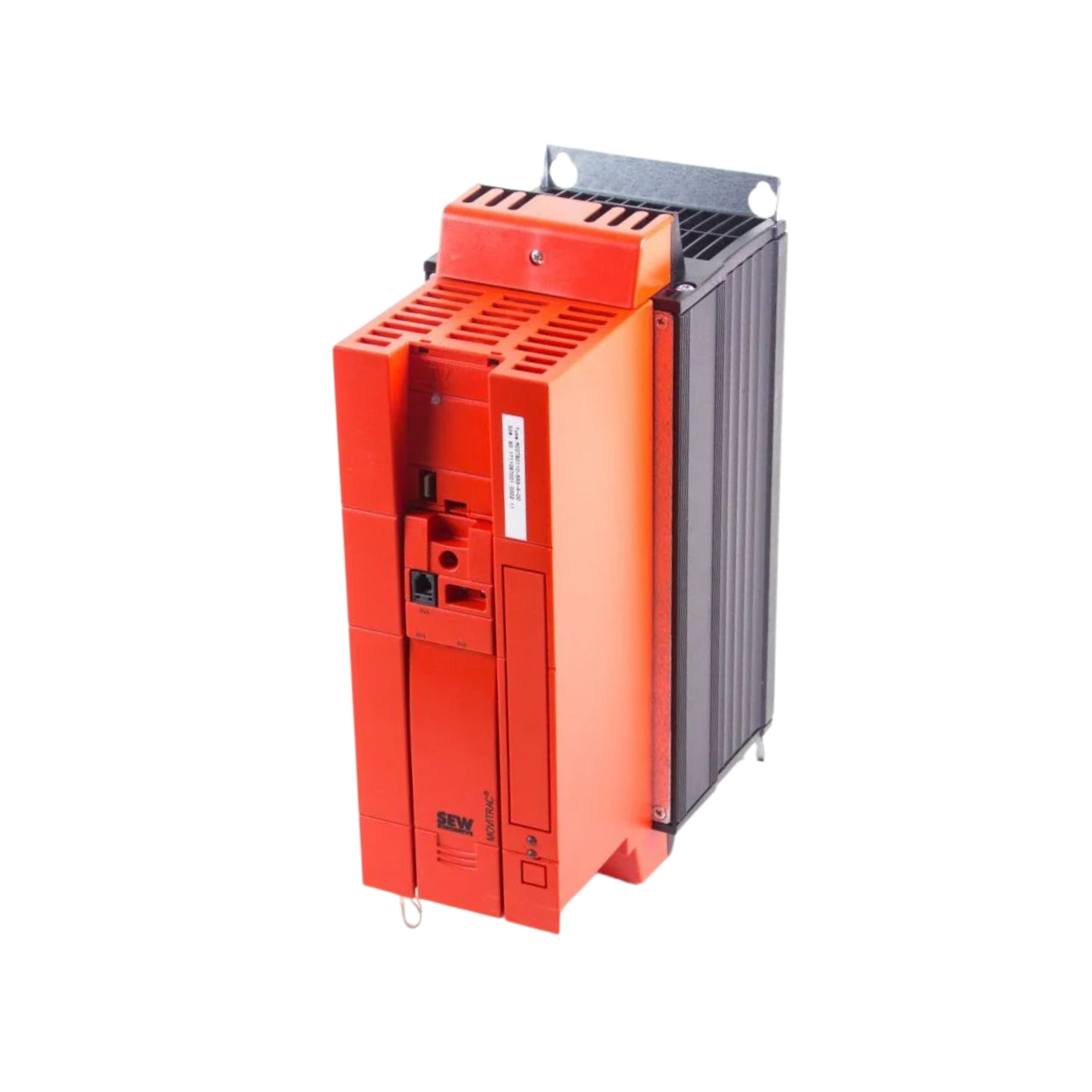

SEW-Eurodrive MC07B0110-5A3-4-00 | 11 kW Inverter Drive

SEW-Eurodrive MC07B0110-5A3-4-00 | High-Performance 11 kW Inverter Drive for Industrial Applications

Overview

The SEW-Eurodrive MC07B0110-5A3-4-00 is an 11 kW inverter drive from the MOVITRAC® B series, designed for precise control of asynchronous AC motors. With a supply voltage range of 3× 380–500 V AC and a rated output current of 24 A, this drive offers robust performance for various industrial automation applications. The standard version includes an integrated brake chopper for efficient braking operations.

Key Features

• Motor Power: 11 kW (15 HP)

• Supply Voltage: 3× 380–500 V AC

• Output Current: 24 A

• Drive Size: 2

• Control Modes: V/f and VFC (Voltage Frequency Control)

• Integrated Brake Chopper: Enables 4-quadrant operation

• Protection Class: IP20

• Cooling Method: Forced air cooling

• Modular Design: Supports optional communication modules and accessories

• Part Number: MC07B0110-5A3-4-00

Technical Specifications

• Model: MC07B0110-5A3-4-00

• Input Voltage: 3× 380–500 V AC (±10%)

• Input Frequency: 50/60 Hz (±5%)

• Rated Output Current: 24 A

• Output Power: 11 kW (15 HP)

• Output Frequency: 0–600 Hz (V/f), 0–150 Hz (VFC)

• Dimensions (W×H×D): 130 × 335 × 229 mm

• Weight: Approximately 6.6 kg

• Ambient Temperature Range: 0 °C to +50 °C (with derating above 40 °C)

• Installation Altitude: Up to 1000 m without derating; derating applies above 1000 m

• Compliance: CE, UL, cUL, GOST-R, C-Tick

Applications

• Material Handling Systems

• Packaging Machinery

• Conveyor Systems

• Automated Assembly Lines

• Pumps and Fans

• Textile Machinery

Why Choose SEW-Eurodrive MC07B0110-5A3-4-00?

• Efficient Motor Control: Optimized for asynchronous motors

• High Performance: Delivers reliable speed and torque control

• Modular Expandability: Supports various communication options

• Compact Design: Space-saving installation in control cabinets

• Proven Reliability: Trusted performance in industrial environments

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
