SEW Eurodrive DER11B | Resolver Encoder Card

SEW Eurodrive DER11B | Resolver Encoder Card for Precise Motion Control

Overview

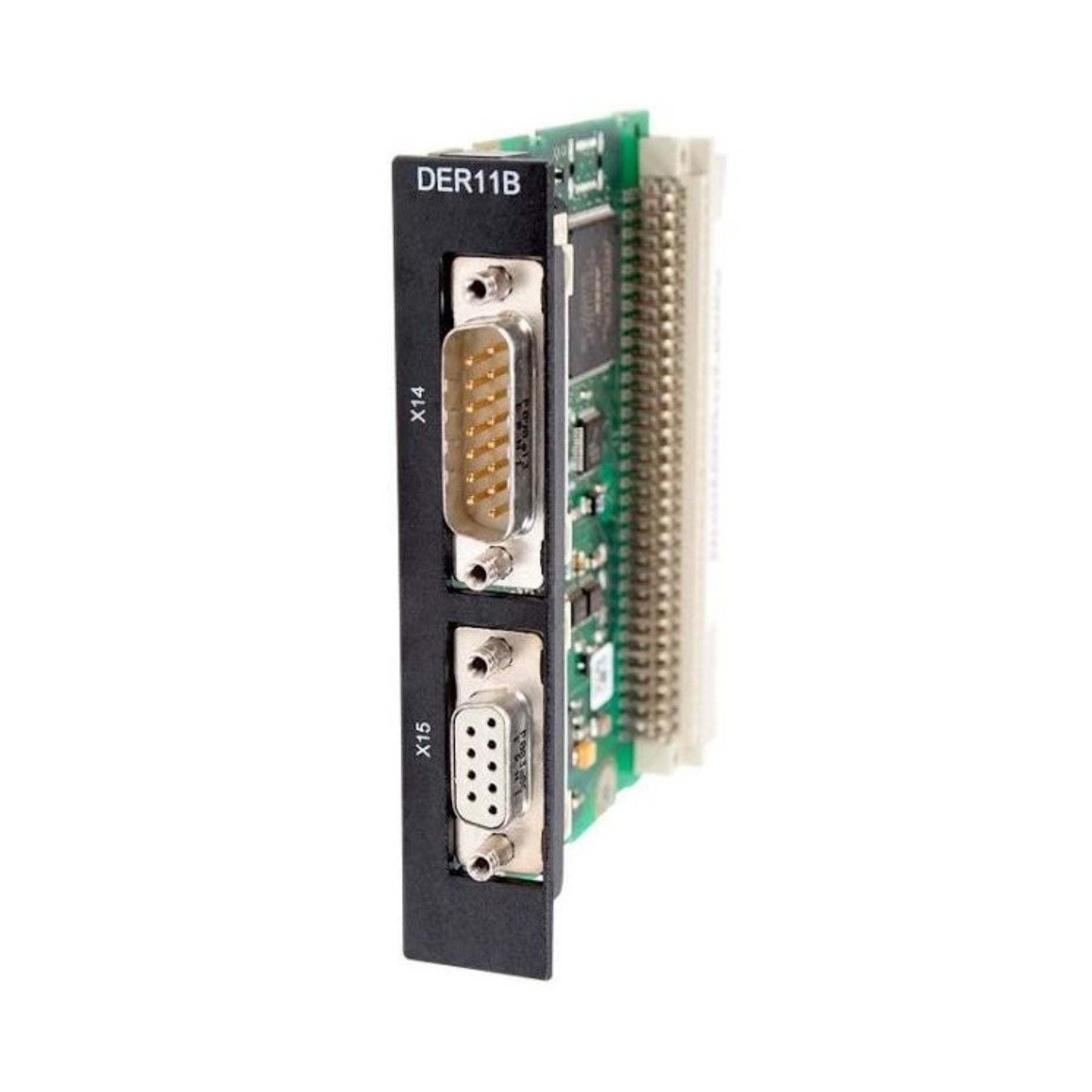

The SEW Eurodrive DER11B is a resolver encoder card designed for use with MOVIDRIVE® MDX61B inverters. It provides inputs for both motor and external encoders, facilitating precise motion control in industrial applications.

Key Features

• Motor Encoder Input: Resolver connection for accurate motor position feedback

• External Encoder Input: Supports various encoder types for distance measurement

• Incremental Encoder Simulation: Outputs 1024 pulses/revolution via RS422

• Encoder Power Supply: 12 VDC (10.5–13 V), max 650 mA

• Compatibility: Designed for MOVIDRIVE® MDX61B inverters

• Compact Design: Easy integration into existing systems

Technical Specifications

• Model: DER11B

• Motor Encoder Input (X15): Resolver, 2-pole, Vref = AC 7 V, 7 kHz, Vin/Vref = 0.5 ±10%

• External Encoder Input/Output (X14):

  • Input: Supports Hiperface®, sin/cos (1 Vpp), TTL (negated tracks), RS422

  • Output: RS422 signal, 1024 pulses/revolution

  • Max Input Frequency: 200 kHz

• Encoder Power Supply: 12 VDC (10.5–13 V), max 650 mA

• Maximum Cable Length: 100 m (328 ft)

• Part Number: 824 307 7

Applications

• Industrial Automation

• Material Handling Systems

• Packaging Machinery

• Robotics and CNC Machines

Why Choose SEW Eurodrive DER11B?

• Dual Encoder Inputs: Facilitates complex motion control tasks

• High Compatibility: Seamless integration with MOVIDRIVE® MDX61B inverters

• Robust Performance: Reliable operation in demanding industrial environments

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
