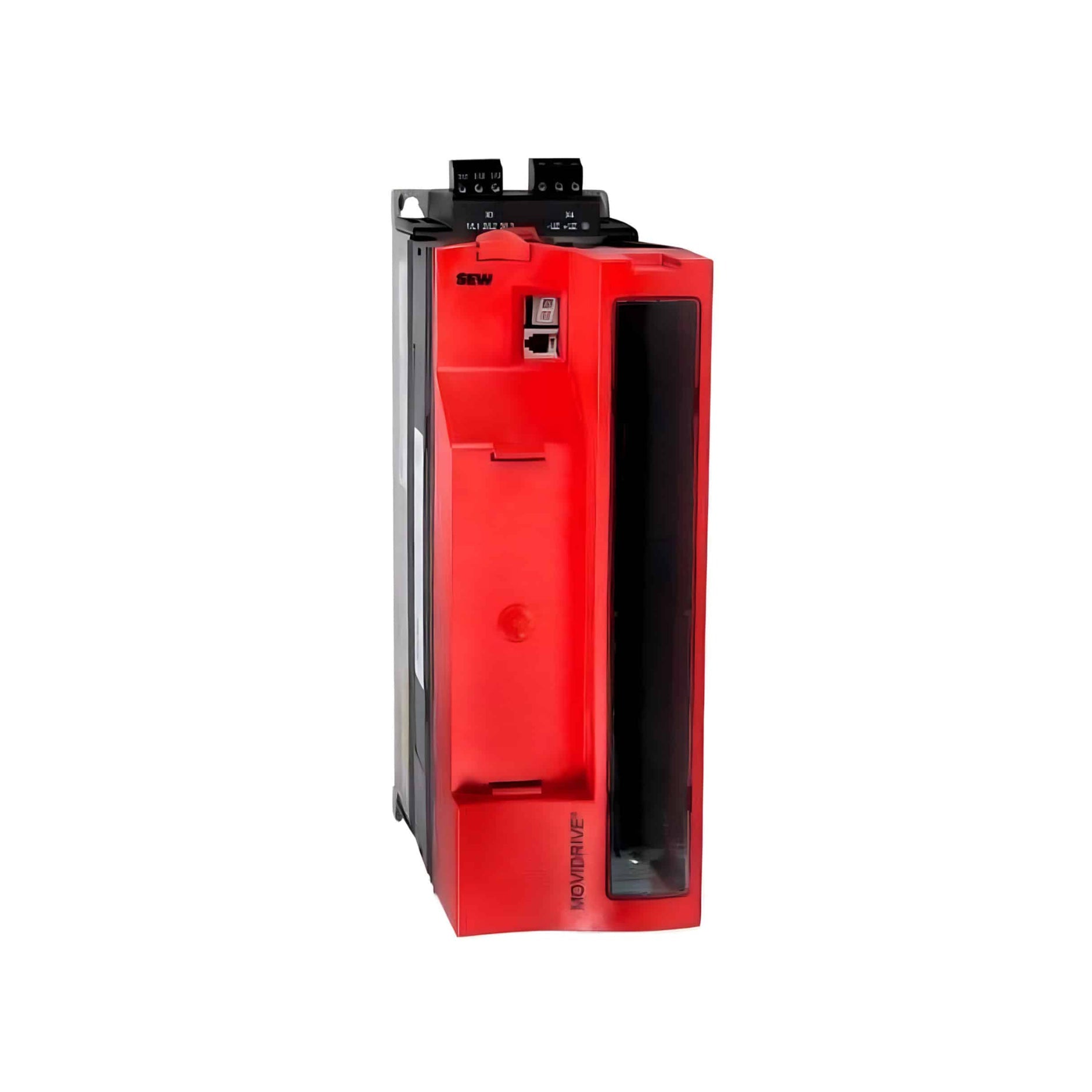

SEW-Eurodrive MDX61B0075-5A3-4-00

SEW-Eurodrive MDX61B0075-5A3-4-00

Overview

The SEW-Eurodrive MDX61B0075-5A3-4-00 is a 7.5 kW inverter from the MOVIDRIVE® B series, built for demanding motor control in industrial automation systems. This standard version includes a built-in brake chopper and provides precise, reliable control for asynchronous motors.

Key Features

• Motor Power: 7.5 kW (10 HP)

• Voltage Input: 3× 380–500 V AC

• Output Current: 16 A

• Drive Size: Size 2

• Control Modes: V/f and VFC (Voltage Flux Control)

• Integrated Brake Chopper: Yes

• Protection Class: IP20

• Cooling: Forced air

• Mounting: Panel mount

• Front Panel Interface: Keypad-compatible

• Expandable: Modular system for communication and encoder options

Technical Specifications

• Model: MDX61B0075-5A3-4-00

• Input Frequency: 50/60 Hz ±5%

• Output Frequency: 0–400 Hz

• Rated Output Current: 16 A

• Output Power: Approx. 11.2 kVA

• Dimensions (W×H×D): 130 × 335 × 294 mm

• Weight: ~6.6 kg

• Ambient Temperature: 0–50 °C (derating above 40 °C)

• Installation Altitude: Up to 1000 m (derating required above)

• Protection: Overvoltage, undervoltage, short circuit, and thermal

• Communication (optional): PROFIBUS, EtherCAT, DeviceNet, CANopen

Applications

• Conveyor and transport systems

• Packaging and labeling equipment

• Pumps and compressors

• Material handling

• Process and assembly lines

Why Choose SEW-Eurodrive MDX61B0075-5A3-4-00?

• Compact footprint with high power output

• Built-in brake chopper for efficient braking

• Reliable performance in industrial environments

• Flexible installation and modular expansion

• Trusted global brand in motion control





Explore our SEW-Eurodrive MOVIDRIVE MDX Series for more advanced motion control solutions.

Return to the SEW-Eurodrive Servo Drives to view the full collection of drive and automation systems.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
