Semikron SKM75GB12T4

Semikron SKM75GB12T4

Overview

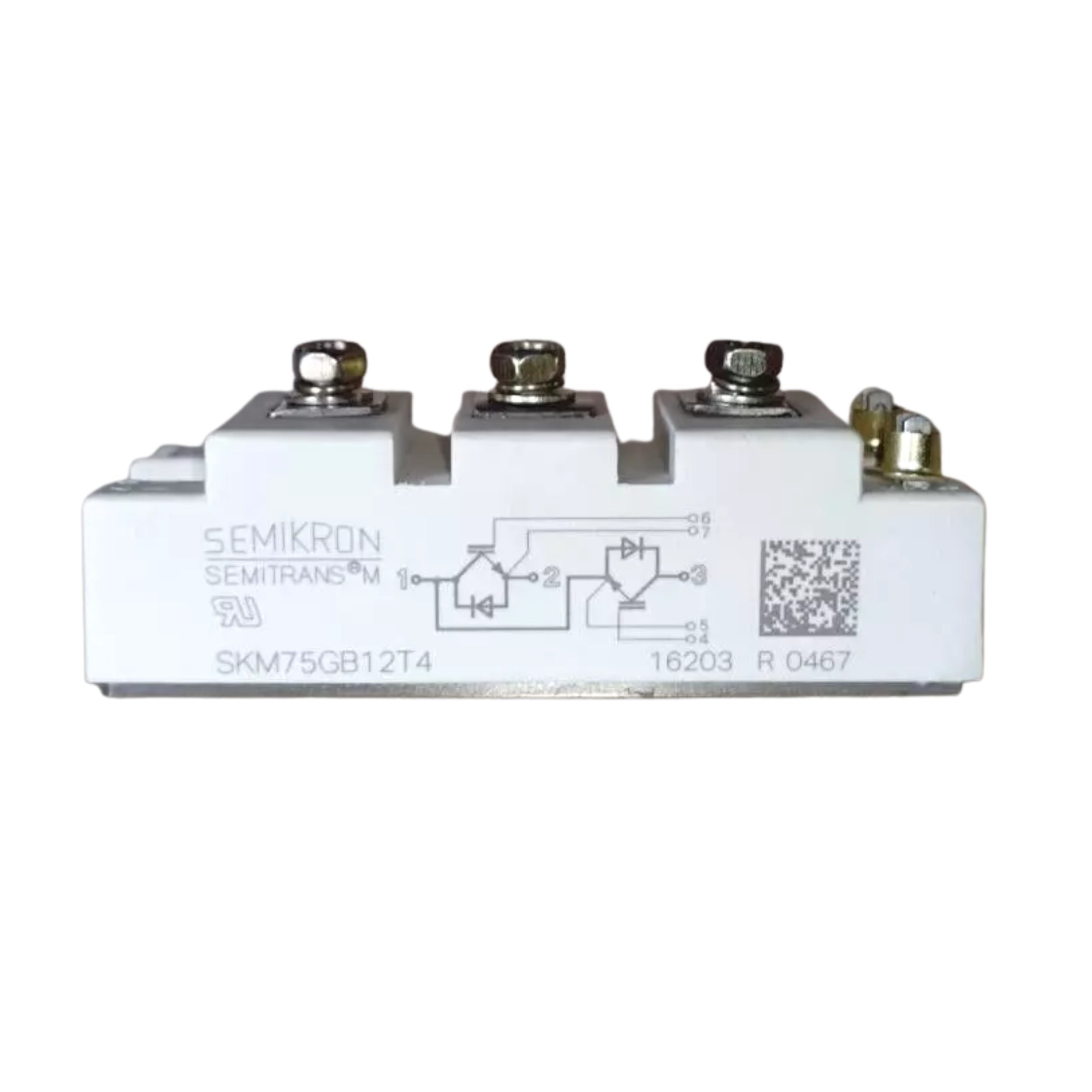

The Semikron SKM75GB12T4 is a single IGBT module rated for 75 A and 1200 V, utilizing the robust SEMITRANS 2 package. Designed for high-performance switching applications, this module features fast switching, low losses, and integrated freewheeling diode, making it ideal for motor control, UPS systems, and power inverters.

Key Features

• Collector-Emitter Voltage: 1200 V

• Collector Current: 75 A

• Low saturation voltage for high efficiency

• Integrated anti-parallel freewheeling diode

• Fast switching performance

• SEMITRANS 2 package

• Electrically isolated baseplate

• Chassis mount with screw terminals

Technical Specifications

• Part Number: SKM75GB12T4

• Configuration: Single IGBT with freewheeling diode

• VCE (Max): 1200 V

• IC (Nominal): 75 A

• VCE(sat): Typically 2.0 V

• Package: SEMITRANS 2

• Isolation Voltage: ≥2500 V AC

• Mounting: Chassis

• Operating Temperature: –40 °C to +150 °C

Applications

• AC motor drives

• Renewable energy systems (solar/wind)

• UPS and power supplies

• Industrial automation and controls

• Welding and induction heating

Why Choose the SKM75GB12T4

• High-performance IGBT for demanding applications

• Compact and reliable SEMITRANS 2 housing

• Easy installation with isolated mounting

• Excellent thermal management

• Proven Semikron quality

Order Now

The Semikron SKM75GB12T4 IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
