Semikron SKM400GAL12E4

Semikron SKM400GAL12E4

Overview

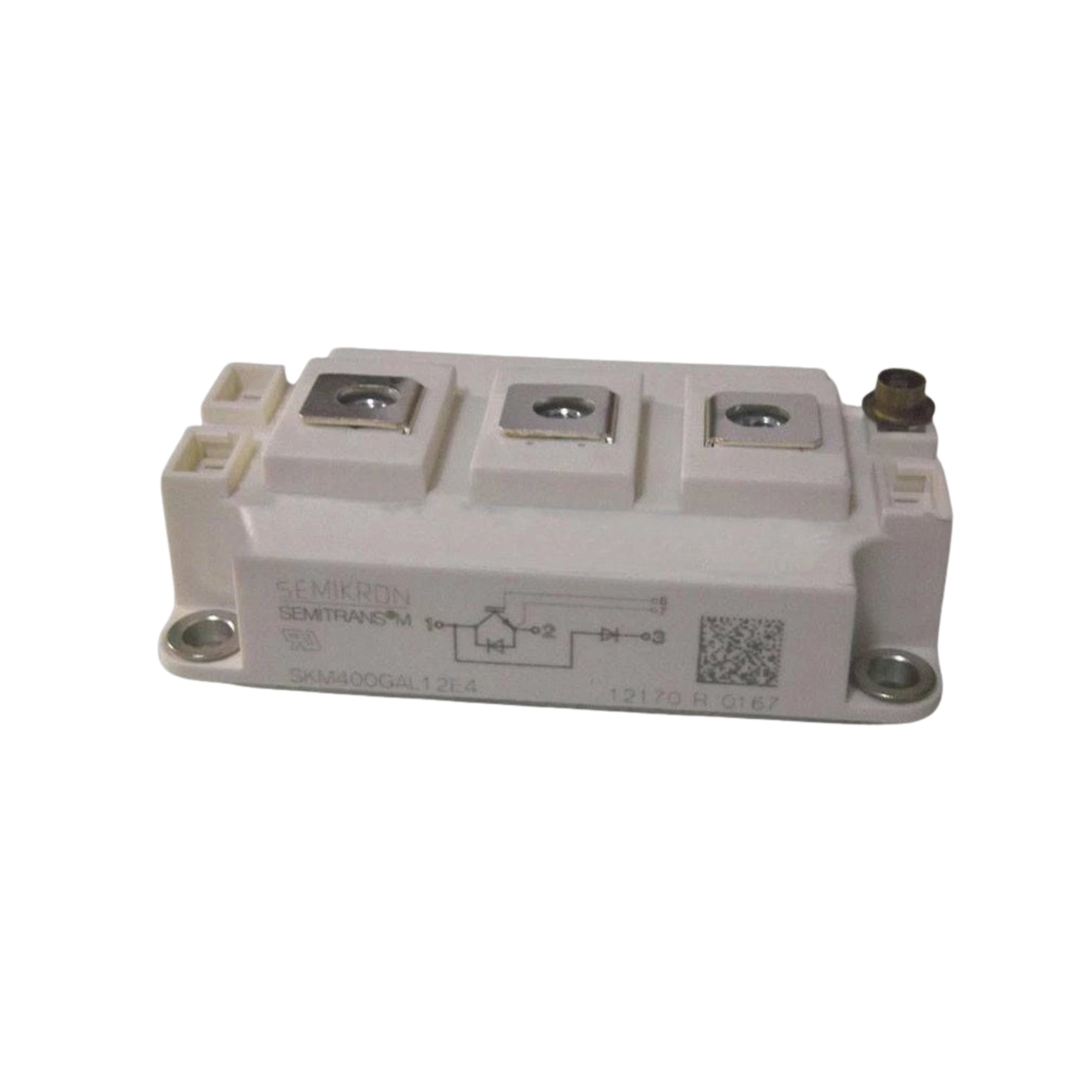

The SKM400GAL12E4 is a high-current IGBT module from Semikron's SEMITRANS 2 line, delivering 400 A at 1200 V. Built for rugged industrial environments, it integrates a fast IGBT and free-wheeling diode for optimal switching performance in demanding applications.

Key Features

• High current capacity: 400 A

• Voltage rating: 1200 V

• Low VCEsat for minimal conduction losses

• Fast-switching IGBT with anti-parallel diode

• SEMITRANS 2 industry-standard package

• Screw terminal mounting for robust connection

• High thermal cycling capability

Technical Specifications

• Part Number: SKM400GAL12E4

• Collector-Emitter Voltage (VCES): 1200 V

• Collector Current (IC): 400 A

• Package Type: SEMITRANS 2

• Configuration: Single IGBT with free-wheeling diode

• Isolation Voltage: ≥2500 V RMS

• Mounting: Chassis mount

• Switching Frequency: Optimized for medium to high frequency

Applications

• Industrial inverters

• Motor control systems

• Power converters

• Renewable energy (solar/wind) systems

• Uninterruptible Power Supplies (UPS)

• Traction and heavy-duty drives

Why Choose SKM400GAL12E4

• Reliable performance under high current loads

• Proven Semikron durability

• Compact format, ideal for dense power electronics systems

• Easy to install and integrate

Order Now

The SKM400GAL12E4 IGBT module from Semikron is available and ready for global shipping.
