Semikron SKM300GB12T4

Semikron SKM300GB12T4

Overview

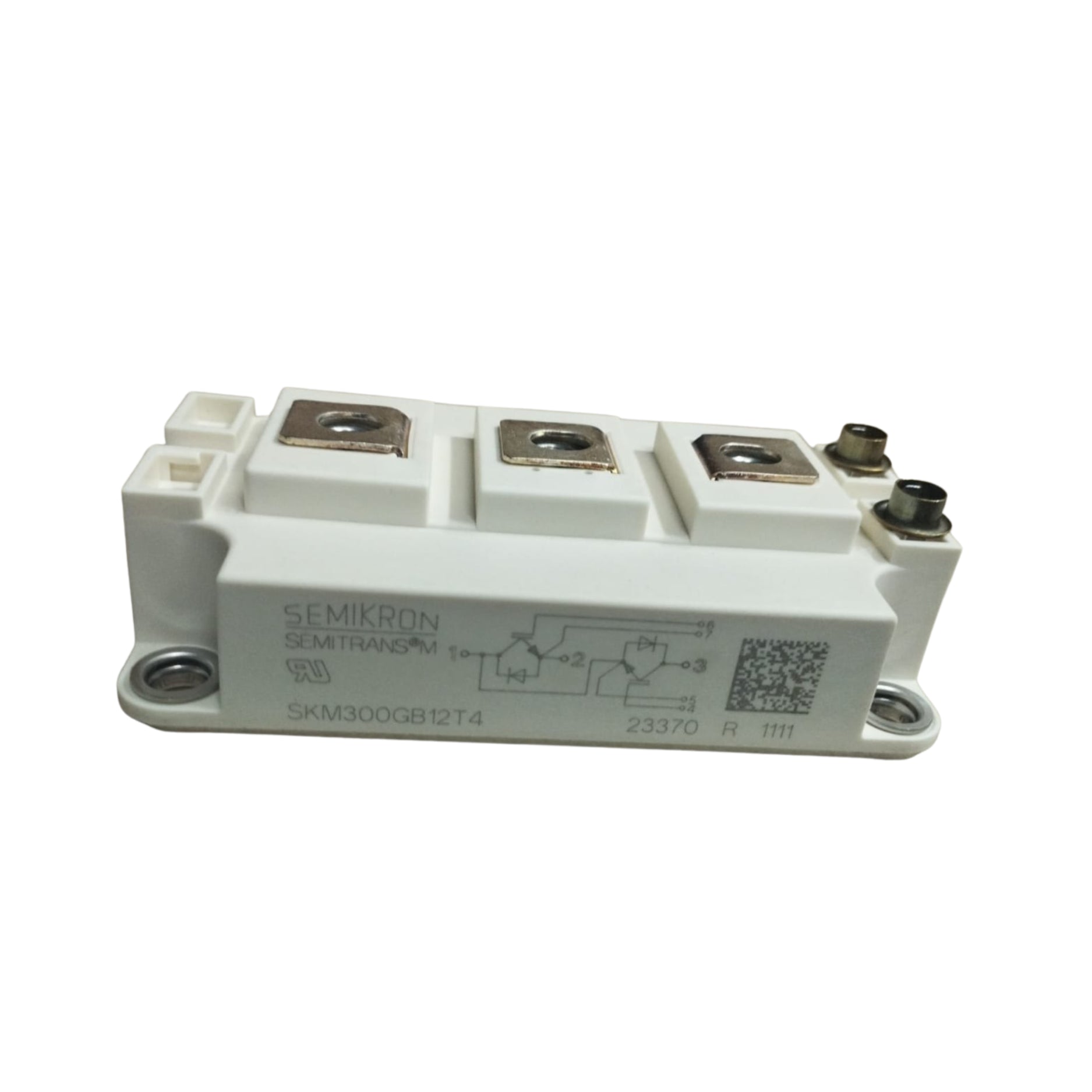

The Semikron SKM300GB12T4 is a single IGBT module designed for high-efficiency switching applications. Rated at 300 A and 1200 V, this device utilizes advanced trench IGBT and soft recovery diode technology, housed in the compact and robust SEMITRANS® 2 package. It is ideal for use in industrial inverters, motor drives, and power conversion systems.

Key Features

• Collector–Emitter Voltage: 1200 V

• Collector Current: 300 A

• Low saturation voltage and switching losses

• Integrated freewheeling diode

• SEMITRANS 2 standardized footprint

• Excellent thermal performance

• Screw-mount design for secure installation

• Electrically isolated baseplate

Technical Specifications

• Part Number: SKM300GB12T4

• Technology: Trench IGBT with freewheeling diode

• VCES: 1200 V

• IC: 300 A

• Housing: SEMITRANS 2

• Isolation Voltage: ≥2500 V AC

• Operating Temperature: –40 °C to +150 °C

• Mounting: Chassis mount

• Switching Frequency: Up to 20 kHz

• Gate Voltage: ±15 V typical

Applications

• Industrial drives and servo systems

• Inverters and converters

• Renewable energy systems

• UPS and power conditioning

• Electric vehicle motor control

Why Choose the SKM300GB12T4

• High current and voltage capacity in compact form

• Excellent switching efficiency

• Proven performance in industrial applications

• Reliable and easy to integrate

Order Now

The Semikron SKM300GB12T4 IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
