Semikron SKM200GB12E4

Semikron SKM200GB12E4

Overview

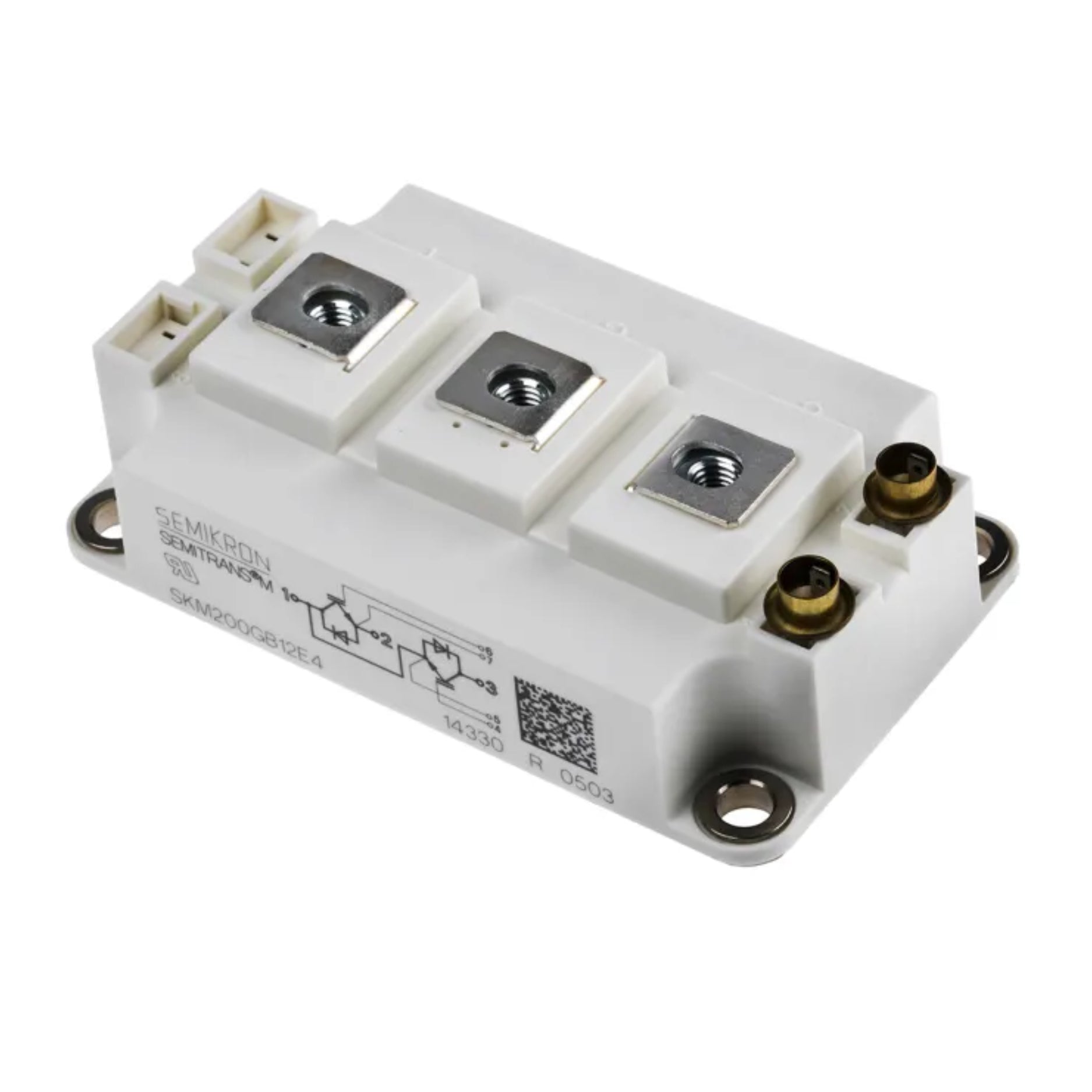

The Semikron SKM200GB12E4 is a single IGBT module rated at 200 A and 1200 V, engineered for high-efficiency switching and robust performance in industrial power systems. This module uses advanced trench field-stop IGBT technology and comes in a SEMITRANS 2 package for compact and reliable mounting.

Key Features

• Collector-Emitter Voltage: 1200 V

• Continuous Collector Current: 200 A

• Built-in freewheeling diode

• Electrically isolated baseplate

• Trench + Field Stop IGBT technology

• SEMITRANS 2 standard package

• High power density

• Optimized switching behavior

Technical Specifications

• Part Number: SKM200GB12E4

• VCE: 1200 V

• IC: 200 A

• VCE(sat) (typical): ~2.0 V

• Isolation Voltage: ≥2500 V AC

• Mounting: Chassis mount

• Package: SEMITRANS 2

• Operating Temperature: –40 °C to +150 °C

• Diode Included: Yes

• Switching Frequency: Up to 20 kHz (typical)

Applications

• Motor control and drives

• Inverters for renewable energy systems

• UPS and backup systems

• Induction heating and welding equipment

• Industrial automation

Why Choose the SKM200GB12E4

• High current capacity in a compact form

• Efficient thermal design

• Reduced conduction and switching losses

• Trusted Semikron quality and performance

Order Now

The Semikron SKM200GB12E4 IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
