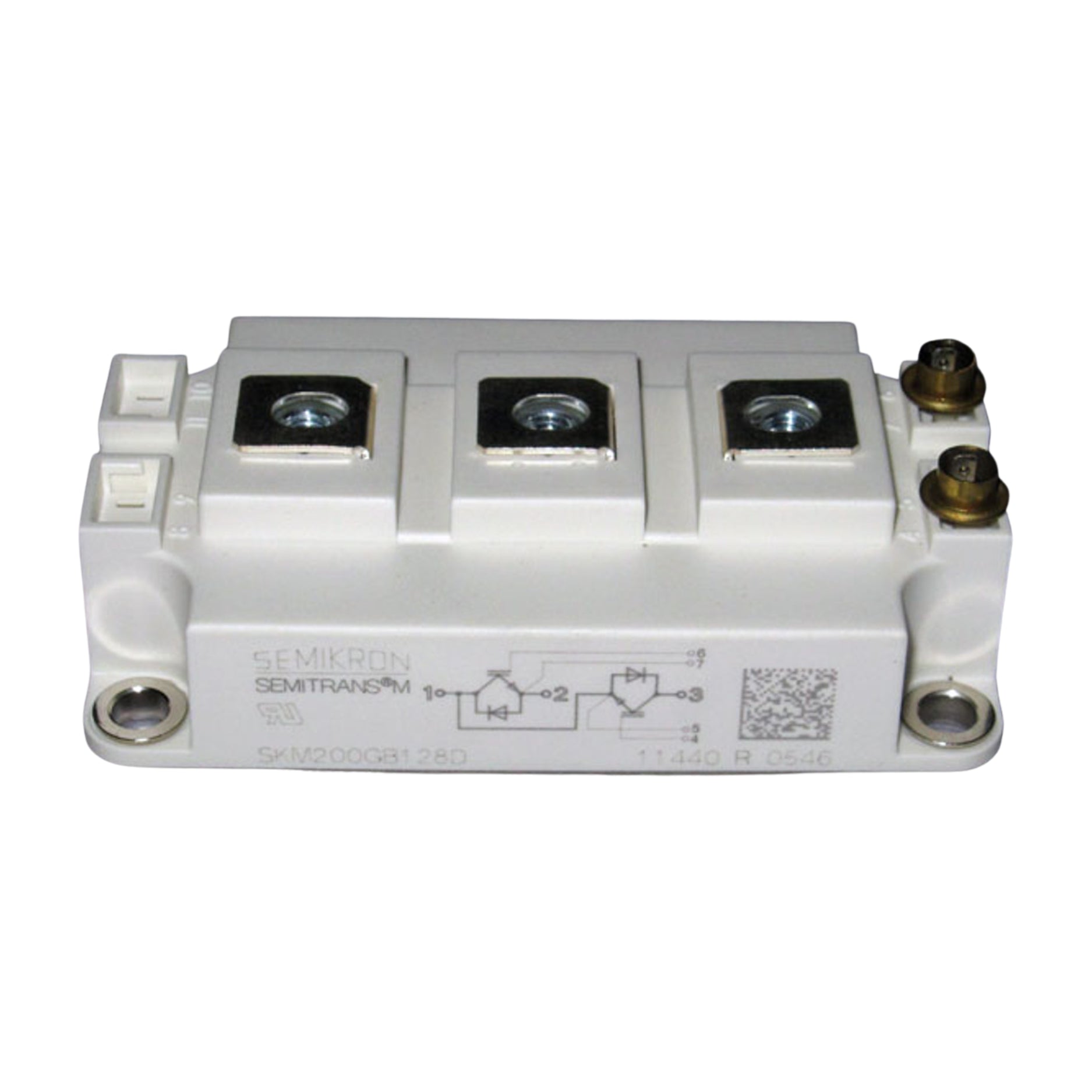

Semikron SKM200GB128D

Semikron SKM200GB128D

Overview

The Semikron SKM200GB128D is a single IGBT module rated at 200 A and 1200 V, engineered for high-efficiency switching in demanding power electronic applications. It utilizes field-stop trench IGBT technology and is housed in a robust SEMITRANS 2 package for efficient thermal performance and easy integration.

Key Features

• Voltage Rating: 1200 V

• Current Rating: 200 A

• Trench and Field Stop IGBT

• Integrated freewheeling diode

• Electrically isolated baseplate

• Compact SEMITRANS 2 package

• Chassis mount with screw terminals

• Optimized for low conduction and switching losses

Technical Specifications

• Part Number: SKM200GB128D

• VCE (Max): 1200 V

• IC: 200 A

• VCE(sat) (typical): ~2.0 V

• Isolation Voltage: ≥2500 V AC

• Package: SEMITRANS 2

• Mounting: Chassis

• Operating Temperature: –40 °C to +150 °C

• Integrated diode: Yes

Applications

• Industrial inverters

• Motor drives and servo systems

• Power converters

• Renewable energy systems

• Welding and heating equipment

Why Choose the SKM200GB128D

• High reliability and switching efficiency

• Compact and robust for industrial integration

• Cost-effective power solution

• Backed by SEMIKRON’s quality and global support

Order Now

The Semikron SKM200GB128D IGBT module is available and ships worldwide.
