Semikron SKM195GB066D

Semikron SKM195GB066D

Overview

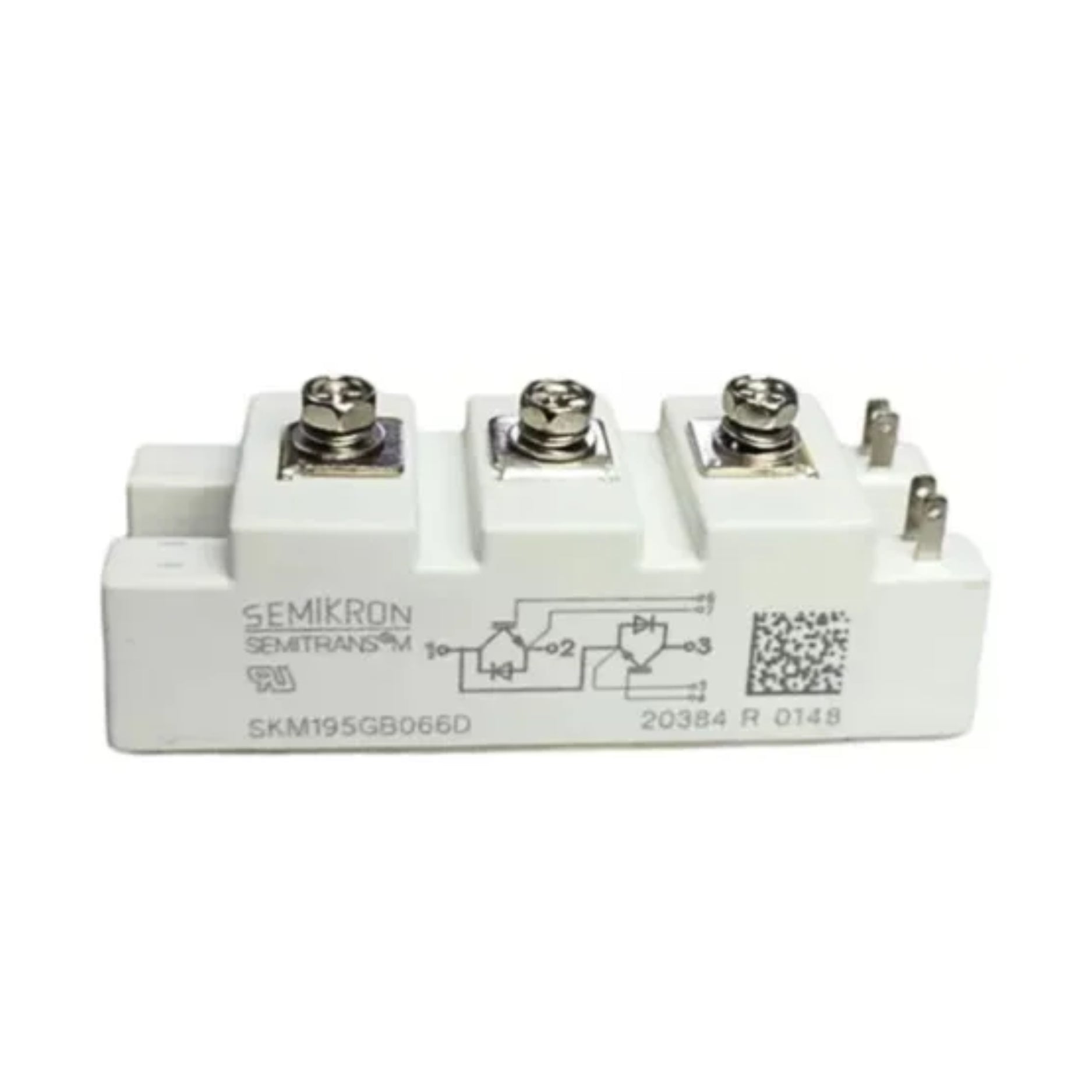

The Semikron SKM195GB066D is a single IGBT module rated at 600 V and 195 A, housed in the reliable SEMITRANS 2 package. Designed for demanding industrial applications, it features low VCE(sat), high switching speed, and robust thermal performance, making it ideal for inverters, power supplies, and motor drives.

Key Features

• Voltage Rating: 600 V

• Current Rating: 195 A

• Single IGBT module with freewheeling diode

• Low VCE(sat) for high efficiency

• Fast switching performance

• Electrically isolated baseplate

• Chassis mount with screw terminals

Technical Specifications

• Part Number: SKM195GB066D

• Configuration: Single IGBT + diode

• Collector-Emitter Voltage (VCES): 600 V

• Collector Current (IC): 195 A

• VCE(sat): ~2.3 V at rated current

• Isolation Voltage: ≥2500 V AC

• Package: SEMITRANS 2

• Mounting: Chassis

• Operating Temperature: –40 °C to +150 °C

Applications

• Inverter systems

• Motor drives

• Power supplies

• Welding equipment

• Industrial automation

Why Choose the SKM195GB066D

• Proven Semikron quality and design

• Efficient thermal management

• High current handling in compact form

• Easy integration into power systems

Order Now

The Semikron SKM195GB066D IGBT module is available and ships worldwide.
