Semikron SKM150GB12T4G

Semikron SKM150GB12T4G

Overview

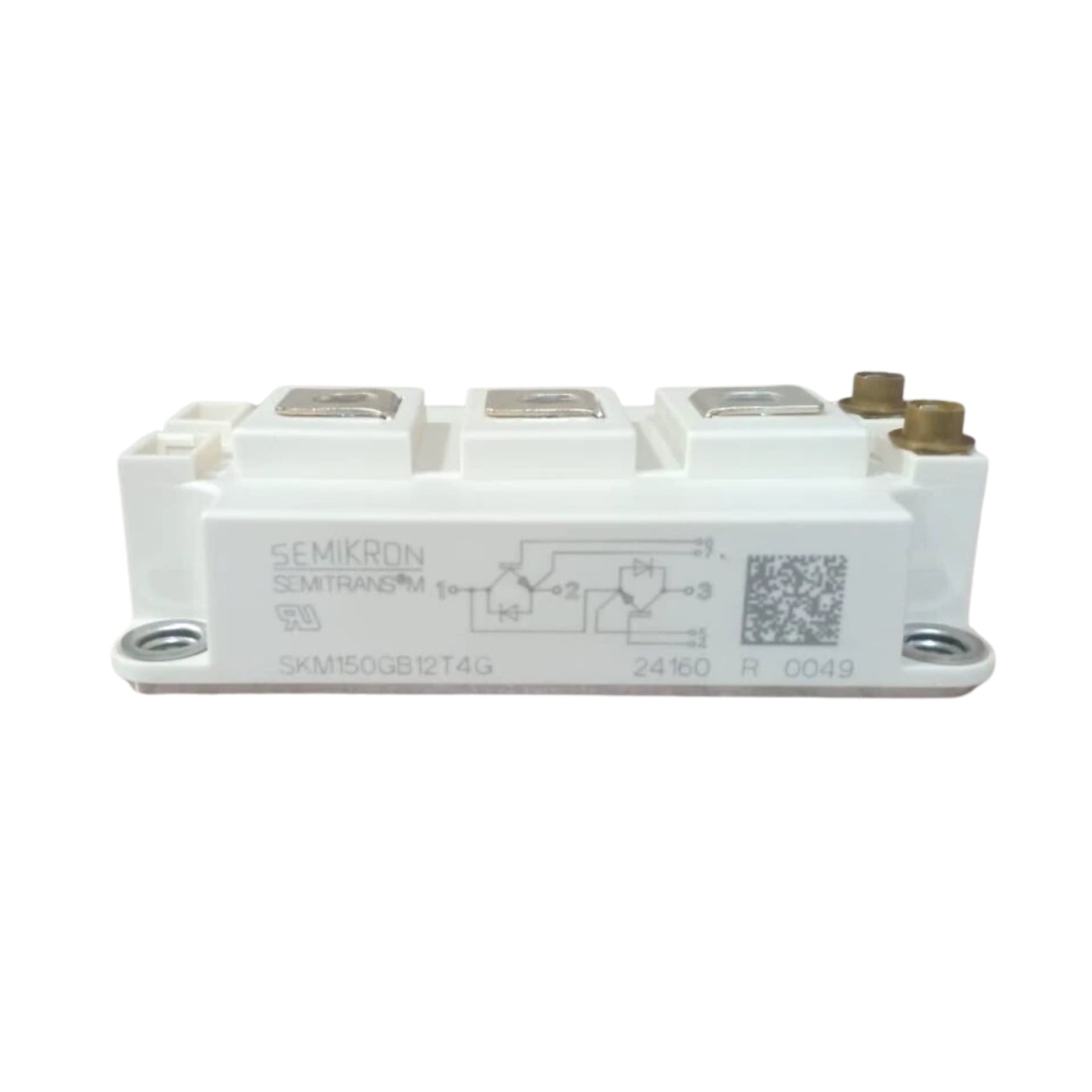

The Semikron SKM150GB12T4G is a single IGBT module rated at 150 A and 1200 V, built for robust and efficient operation in industrial power electronics. Featuring advanced trench and field-stop technology, it ensures low switching losses and high reliability in compact SEMITRANS 2 housing.

Key Features

• Voltage Rating: 1200 V

• Current Rating: 150 A

• Trench/field-stop IGBT design

• Integrated freewheeling diode

• Electrically isolated baseplate

• SEMITRANS 2 standard package

• Chassis mount with screw terminals

• Designed for low conduction and switching losses

Technical Specifications

• Part Number: SKM150GB12T4G

• VCE (Max): 1200 V

• IC: 150 A

• VCE(sat) (typical): ~1.8 V

• Isolation Voltage: ≥2500 V AC

• Mounting Type: Chassis

• Package: SEMITRANS 2

• Operating Temperature: –40 °C to +150 °C

• Integrated Diode: Yes

Applications

• Motor control and drives

• Renewable energy systems

• UPS and power supplies

• Welding machines

• General-purpose inverters

Why Choose the SKM150GB12T4G

• Proven performance with low losses

• Compact and easy to integrate

• Reliable design from SEMIKRON

• Ideal for medium-power industrial applications

Order Now

The Semikron SKM150GB12T4G IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
