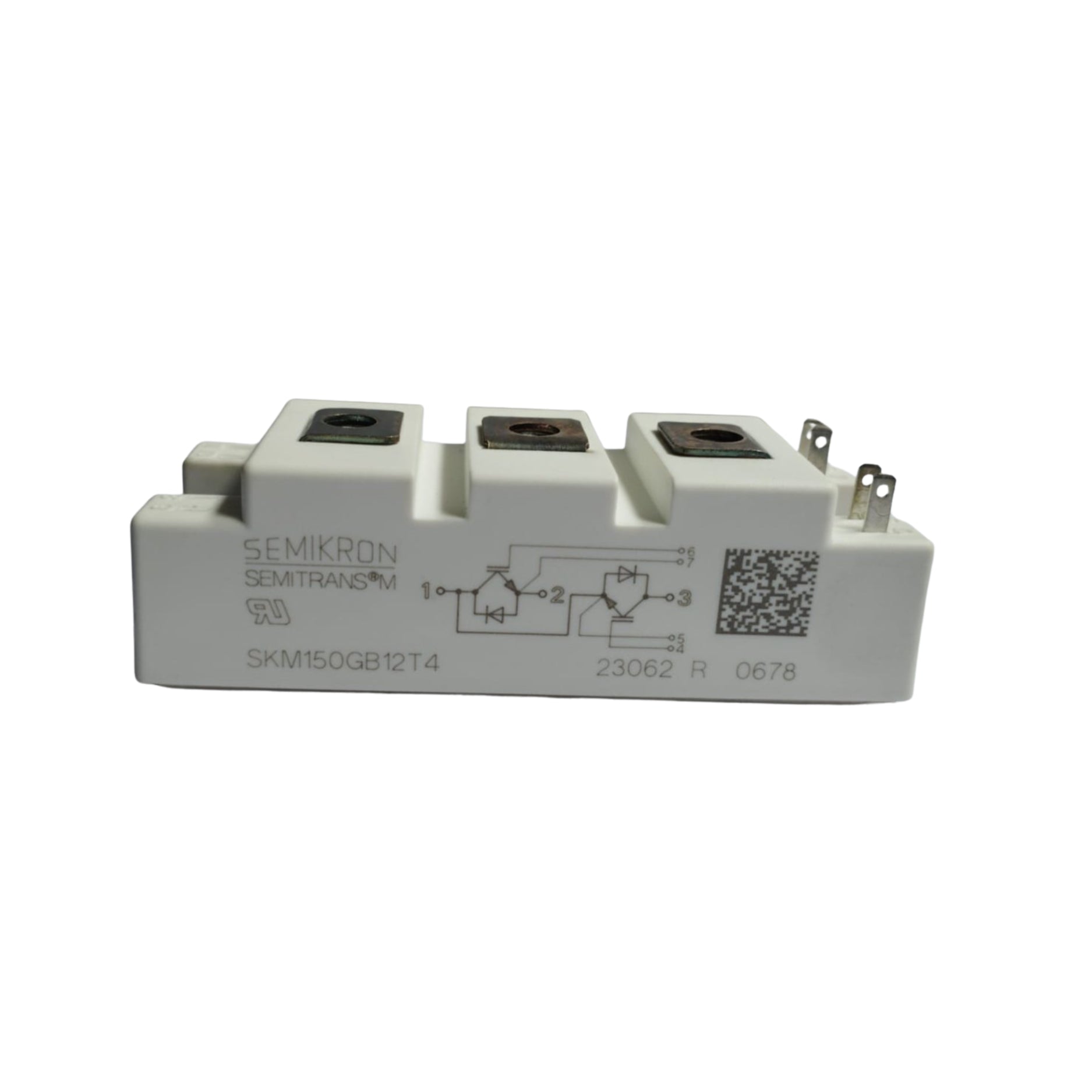

Semikron SKM150GB12T4

Semikron SKM150GB12T4

Overview

The Semikron SKM150GB12T4 is a single IGBT module rated for 150 A and 1200 V, designed for high-efficiency power control in industrial applications. Built in a SEMITRANS 2 housing, it features advanced trench gate technology, making it ideal for motor drives, UPS systems, and inverters requiring reliable switching and low power losses.

Key Features

• Voltage Rating: 1200 V

• Current Rating: 150 A

• Low VCE(sat) for efficient switching

• Trench gate field-stop IGBT

• Fast and soft recovery anti-parallel diode

• SEMITRANS 2 housing

• High thermal cycling and reliability

Technical Specifications

• Part Number: SKM150GB12T4

• Type: IGBT Module

• Collector-Emitter Voltage (VCES): 1200 V

• Collector Current (IC): 150 A

• Configuration: Single

• Housing: SEMITRANS 2

• Mounting: Chassis mount

• Operating Temperature: –40 °C to +150 °C

• Switching Frequency: up to 20 kHz

• Isolation Voltage: ≥2500 V AC

• Diode: Integrated fast recovery

Applications

• Variable frequency drives (VFDs)

• Industrial motor drives

• Renewable energy inverters

• Uninterruptible power supplies (UPS)

• Welding and automation equipment

Why Choose the SKM150GB12T4

• Proven reliability from Semikron

• Excellent performance for medium-power systems

• Advanced IGBT and diode integration

• Compact and robust SEMITRANS 2 housing

Order Now

The Semikron SKM150GB12T4 IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
