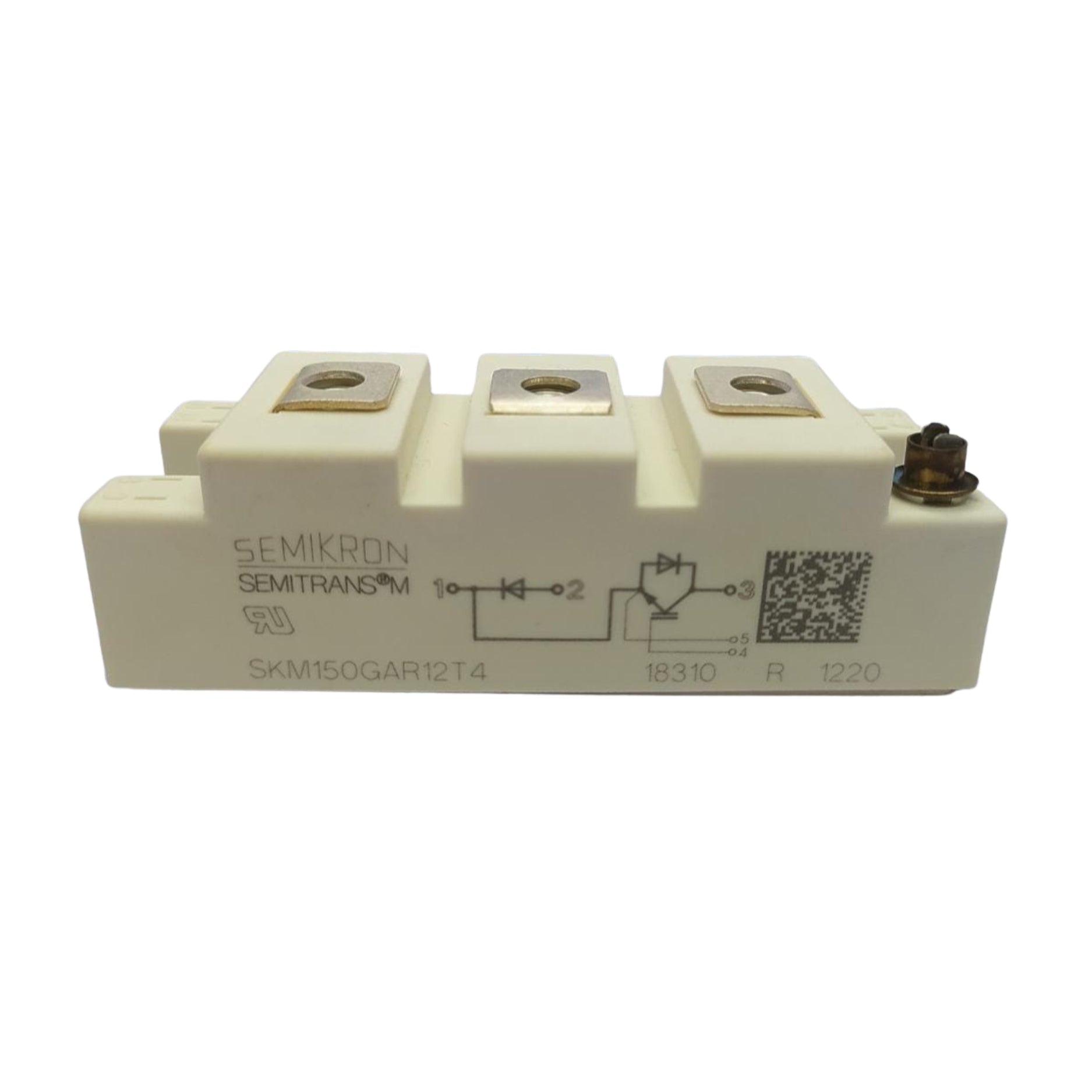

Semikron SKM150GAR12T4

Semikron SKM150GAR12T4

Overview

The Semikron SKM150GAR12T4 is a 1200 V, 150 A IGBT module designed for efficient and reliable power switching in industrial environments. It comes in a robust SEMITRANS 2 housing and is optimized for low-loss and high-speed switching, making it ideal for motor control and power conversion applications.

Key Features

• Collector-Emitter Voltage: 1200 V

• Collector Current: 150 A

• Low VCE(sat) for reduced conduction loss

• Built-in fast recovery diode

• Compact SEMITRANS 2 design

• Electrically isolated baseplate

• High thermal cycling capability

Technical Specifications

• Module Type: IGBT with diode

• VCES: 1200 V

• IC: 150 A

• VCE(sat): ~2.1 V

• Diode Reverse Recovery: Fast

• Package: SEMITRANS 2

• Mounting: Chassis

• Isolation Voltage: 2500 V RMS

• Operating Temperature: –40 °C to +150 °C

Applications

• AC and DC motor drives

• Renewable energy inverters

• Welding machines

• Power supplies and UPS systems

• General-purpose industrial power systems

Why Choose the SKM150GAR12T4

• High efficiency and fast-switching performance

• Compact and rugged SEMITRANS design

• Trusted Semikron durability and thermal stability

• Ideal for high-demand industrial applications

Order Now

The Semikron SKM150GAR12T4 IGBT module is available and ships worldwide.
