Semikron SKM150GAL12T4

Semikron SKM150GAL12T4

Overview

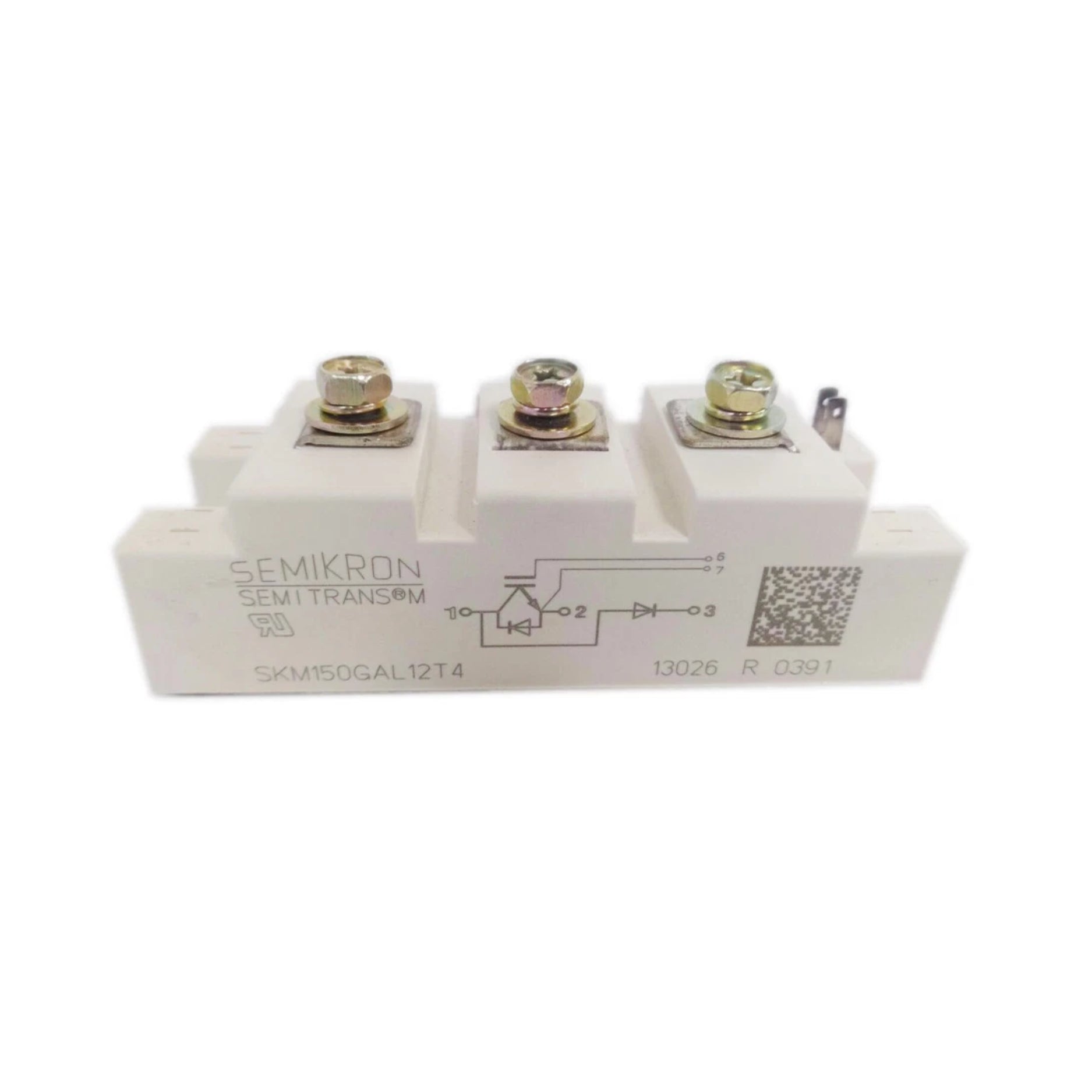

The Semikron SKM150GAL12T4 is a single IGBT module rated for 150 A and 1200 V, housed in a SEMITRANS 2 package. It is ideal for high-performance switching in industrial motor drives, inverters, and power conversion systems. Featuring field-stop trench technology, it provides low power losses and excellent thermal management.

Key Features

• Voltage Rating: 1200 V

• Current Rating: 150 A

• Field-stop trench IGBT technology

• Integrated freewheeling diode

• Electrically isolated baseplate

• SEMITRANS 2 compact housing

• Chassis mount for easy installation

• Low saturation voltage and switching losses

Technical Specifications

• Part Number: SKM150GAL12T4

• VCE (Max): 1200 V

• IC: 150 A

• VCE(sat) (typical): ~1.8 V

• Isolation Voltage: ≥2500 V AC

• Package: SEMITRANS 2

• Mounting Type: Chassis

• Operating Temperature: –40 °C to +150 °C

• Integrated Diode: Yes

Applications

• Industrial inverters

• Motor drives and servo systems

• Power converters

• Renewable energy systems

• UPS and welding equipment

Why Choose the SKM150GAL12T4

• High efficiency and thermal performance

• Robust SEMIKRON design for industrial use

• Easy to mount and integrate

• Cost-effective for mid-range power systems

Order Now

The Semikron SKM150GAL12T4 IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
