Semikron SKM145GB066D

Semikron SKM145GB066D

Overview

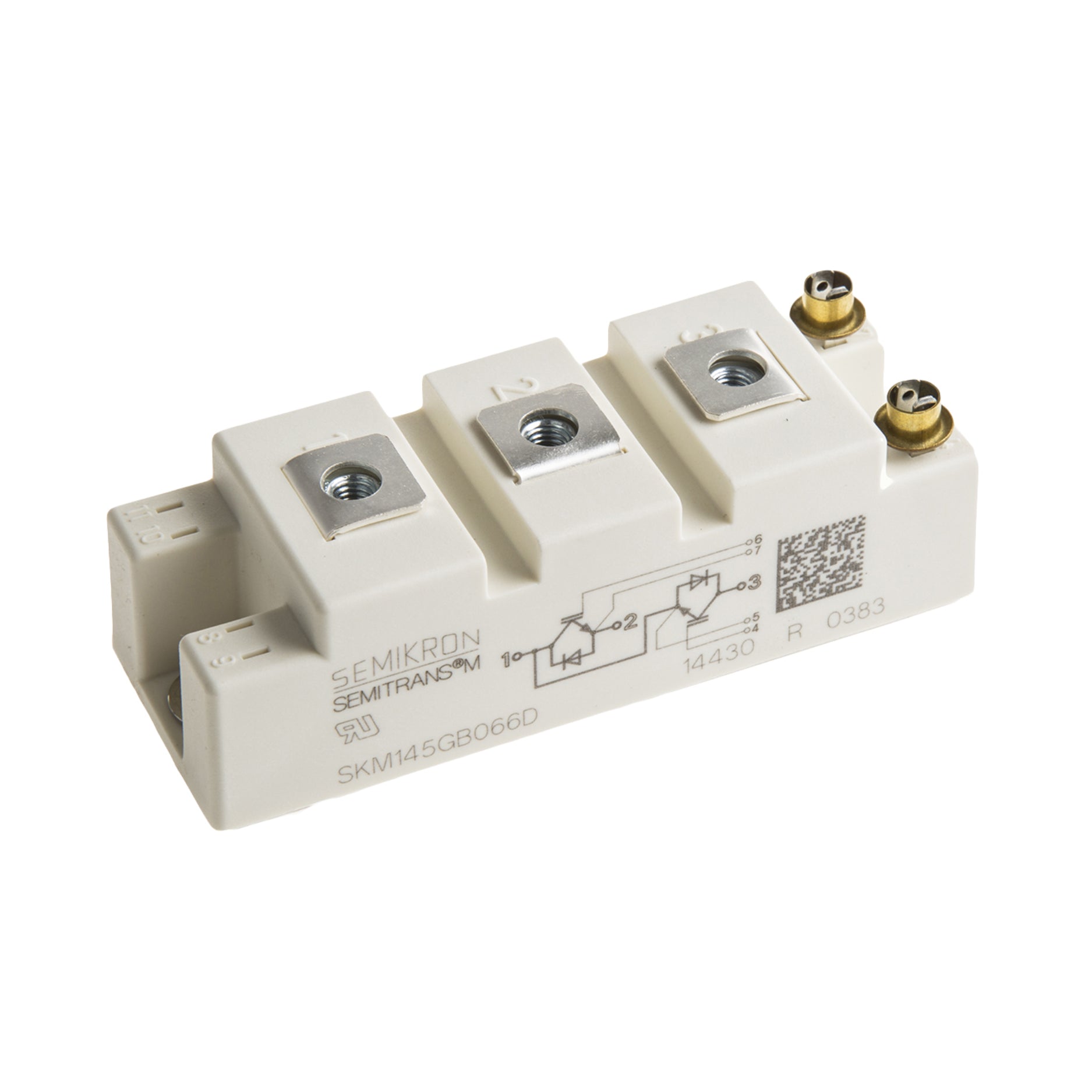

The Semikron SKM145GB066D is a single IGBT module rated at 600 V and 145 A, built in a SEMITRANS 2 package. It delivers reliable performance for industrial applications requiring medium power switching. With a low saturation voltage and integrated fast-recovery diode, this module is ideal for use in inverters, UPS systems, and power supplies.

Key Features

• Voltage Rating: 600 V

• Current Rating: 145 A

• Integrated freewheeling diode

• Low saturation voltage (VCE(sat))

• Electrically isolated baseplate

• Rugged SEMITRANS 2 housing

• High switching efficiency

• Screw terminal connections

Technical Specifications

• Part Number: SKM145GB066D

• Configuration: Single IGBT + Diode

• Collector-Emitter Voltage (VCES): 600 V

• Collector Current (IC): 145 A

• VCE(sat): ~2.0 V (typical)

• Isolation Voltage: ≥2500 V AC

• Package: SEMITRANS 2

• Mounting: Chassis

• Operating Temperature: –40 °C to +150 °C

Applications

• Inverter and converter systems

• Motor drives

• UPS systems

• Industrial welding machines

• Battery chargers

Why Choose the SKM145GB066D

• Compact and efficient thermal design

• Stable electrical performance

• Easy to install and maintain

• Suitable for high-frequency switching

Order Now

The Semikron SKM145GB066D IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
