Semikron SKKD162/16

Semikron SKKD162/16

Overview

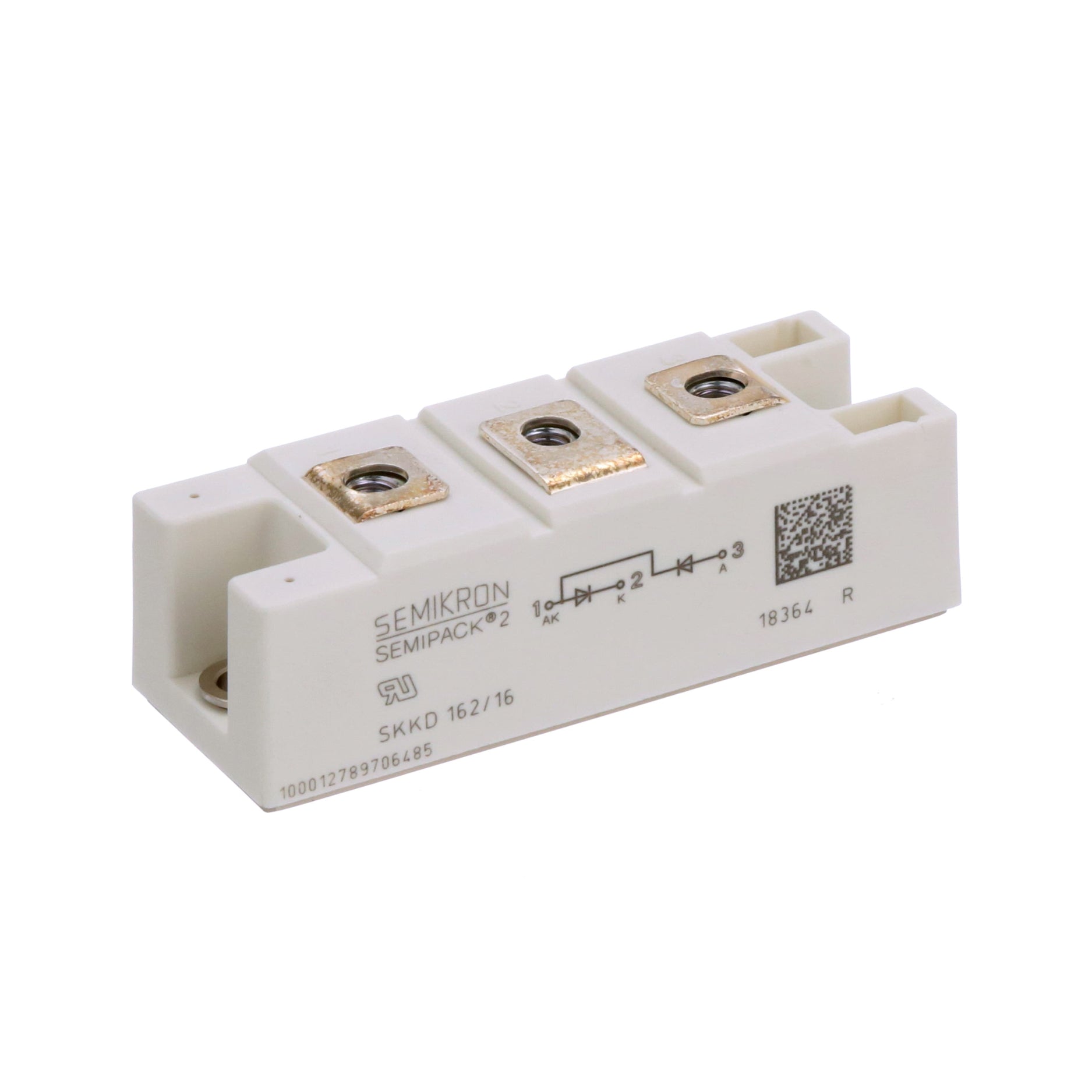

The Semikron SKKD162/16 is a single dual diode module designed for high-current rectification and freewheeling applications in industrial systems. It offers a 160 A current rating and 1600 V reverse voltage capability. Packaged in a robust SEMIPACK 2 housing, this module ensures high thermal efficiency, reliability, and easy mounting in power control assemblies.

Key Features

• Dual high-current diodes in one housing

• Reverse Voltage: 1600 V

• Average Forward Current: 160 A

• SEMIPACK 2 compact and robust case

• Electrically isolated baseplate

• High surge current tolerance

• Optimized for rectification and freewheeling

Technical Specifications

• Part Number: SKKD162/16

• Configuration: Dual Diode

• IF(AV): 160 A

• VRRM: 1600 V

• IFSM: ~3000 A (typical surge)

• Package: SEMIPACK 2

• Isolation Voltage: ≥2500 V AC

• Mounting: Chassis mount

• Operating Temperature: –40 °C to +125 °C

• Case Material: Molded plastic with metal base

Applications

• Input rectifiers for inverters

• Freewheeling and clamping circuits

• Welding machines

• Battery chargers

• AC and DC motor drive systems

Why Choose the SKKD162/16

• Compact, high-current dual diode solution

• Easy installation with isolated mounting base

• Proven Semikron SEMIPACK technology

• Excellent reliability and thermal performance

Order Now

The Semikron SKKD162/16 dual diode module is available and ships worldwide.
