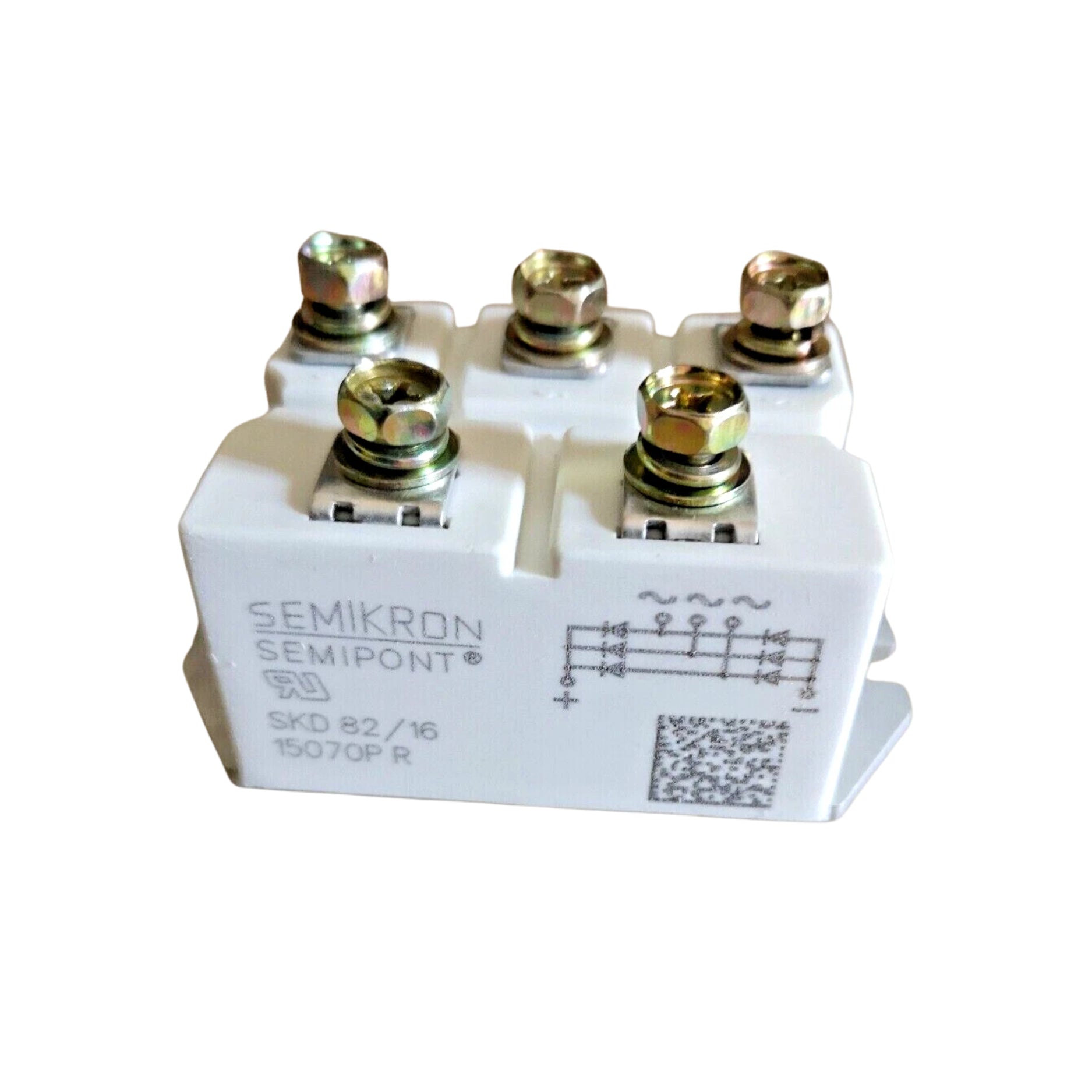

Semikron SKD82/16

Semikron SKD82/16

Overview

The Semikron SKD82/16 is a single diode module rated for 82 A and 1600 V, housed in a compact SEMIPACK 1 package. Designed with two fast recovery diodes in a dual configuration, this module supports efficient rectification in power supplies, motor drives, and industrial converters. It features an electrically isolated baseplate and robust terminal connections for easy integration.

Key Features

• Voltage Rating: 1600 V

• Current Rating: 82 A

• Dual-diode configuration

• Isolated baseplate for simplified heatsinking

• Compact SEMIPACK 1 package

• High surge current capability

• Chassis mount with screw terminals

Technical Specifications

• Part Number: SKD82/16

• Type: Diode module (dual)

• Repetitive Peak Reverse Voltage (VRRM): 1600 V

• Average Forward Current (IF(AV)): 82 A

• Surge Current: High capability

• Package: SEMIPACK 1

• Mounting: Chassis

• Baseplate Isolation Voltage: ≥2500 V AC

• Operating Temperature: –40 °C to +125 °C

Applications

• Input rectifiers for converters and inverters

• DC motor drives

• Battery chargers

• Industrial heating systems

• Welding equipment

Why Choose the SKD82/16

• Efficient and reliable rectifier solution

• Compact size for high power density

• Simplified thermal management

• Trusted Semikron quality

Order Now

The Semikron SKD82/16 diode module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
