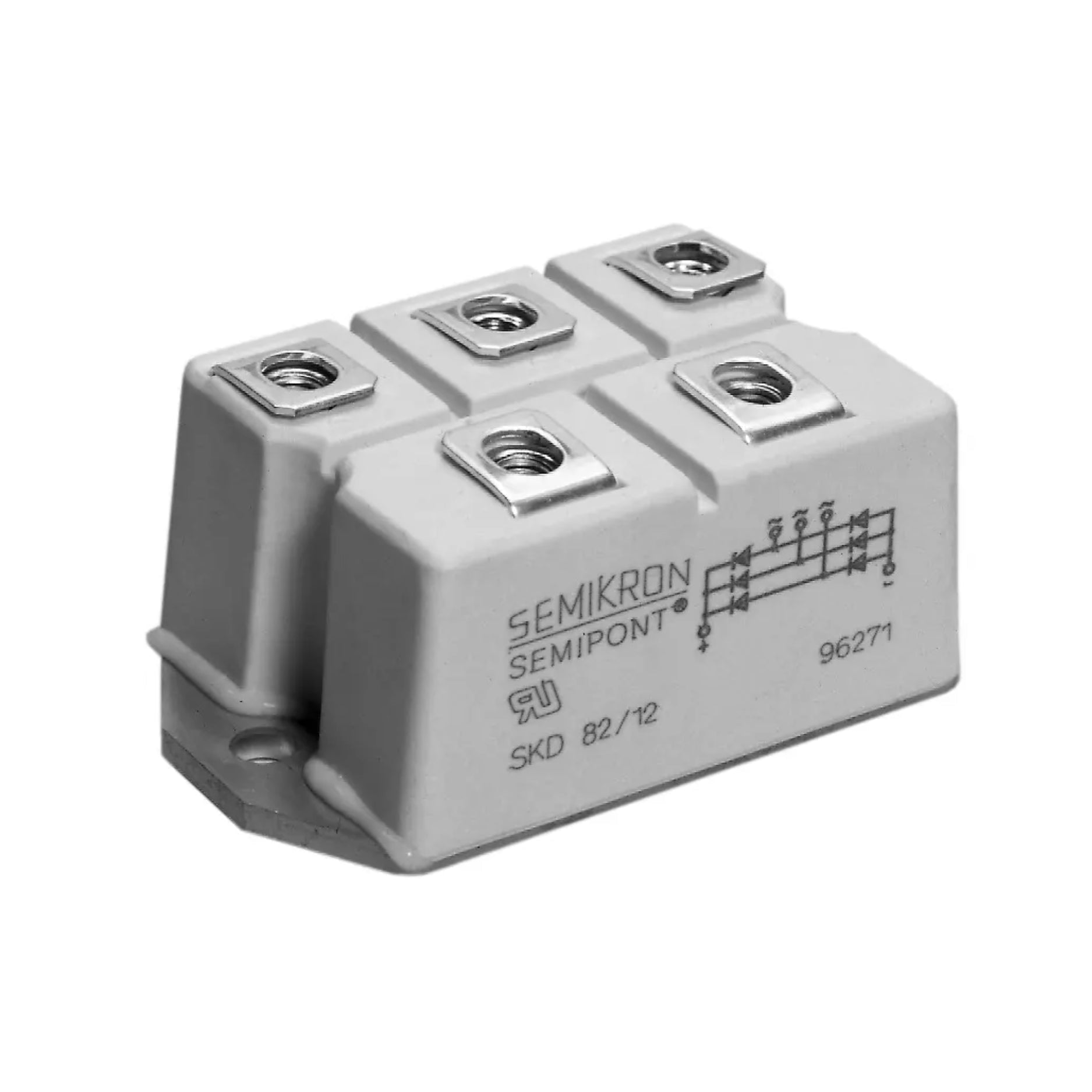

Semikron SKD 82/12

Semikron SKD 82/12

Overview

The Semikron SKD 82/12 is a robust diode module rated for 82 A and 1200 V, ideal for industrial rectification and freewheeling applications. Built in the compact SEMIPACK 1 housing, it offers reliable thermal performance, high surge current capability, and easy integration into power electronic systems.

Key Features

• Blocking Voltage: 1200 V

• Current Rating: 82 A

• Dual-diode configuration

• SEMIPACK 1 compact housing

• Electrically isolated baseplate

• High surge current and reliability

Technical Specifications

• Module Type: Diode

• VRRM: 1200 V

• IF(AV): 82 A

• Surge Current: >1200 A

• Isolation Voltage: 2500 V RMS

• Housing: SEMIPACK 1

• Mounting: Chassis mount

• Operating Temperature: –40 °C to +125 °C

Applications

• Input and output rectifiers

• Freewheeling diodes

• Power supplies

• Motor drives

• Industrial automation equipment

Why Choose the SKD 82/12

• High current capability in compact form

• Durable and thermally efficient design

• Trusted Semikron performance

• Compatible with various rectifier configurations

Order Now

The Semikron SKD 82/12 diode module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
