Semikron Semix151GD066HDS

Semikron Semix 151GD066HDS

Overview

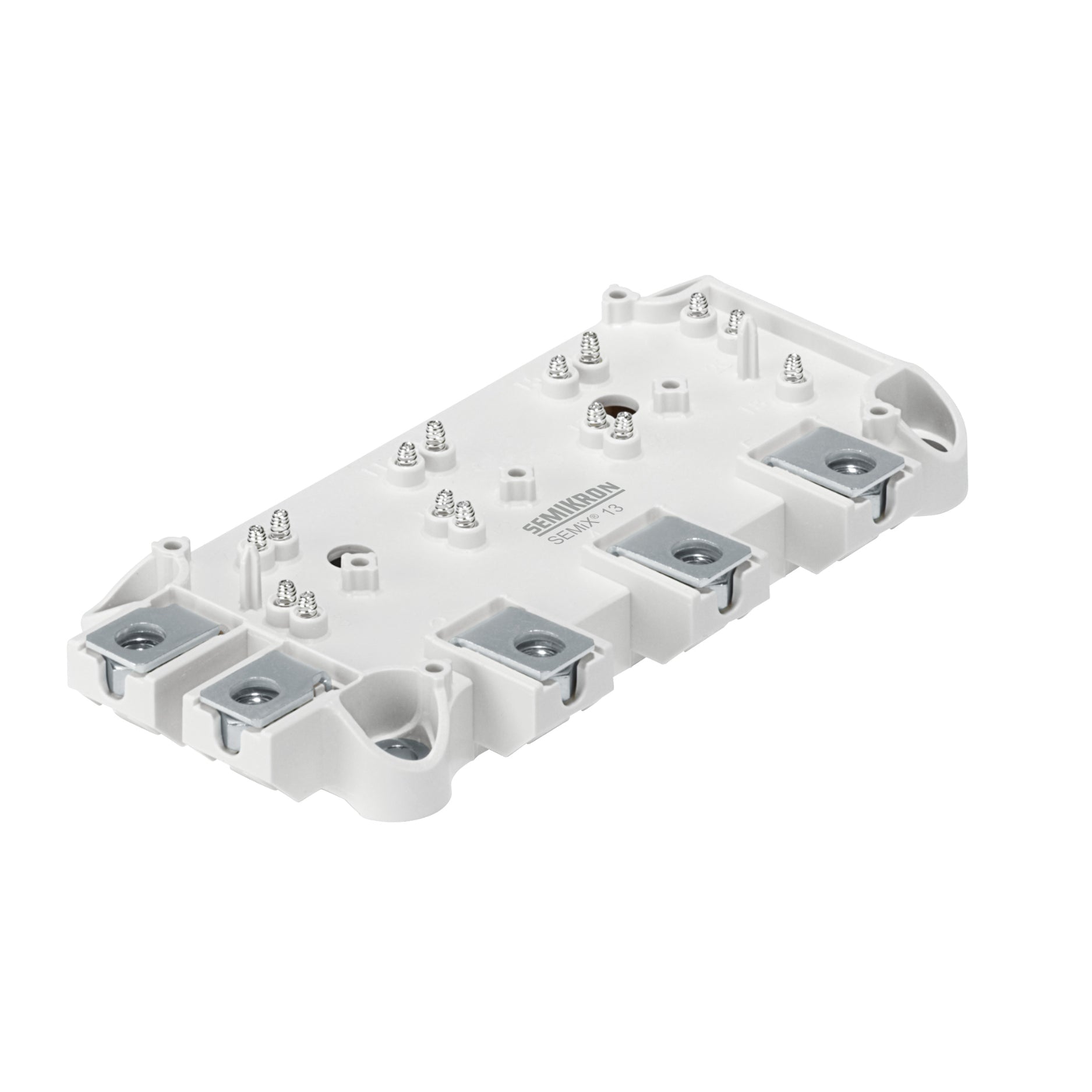

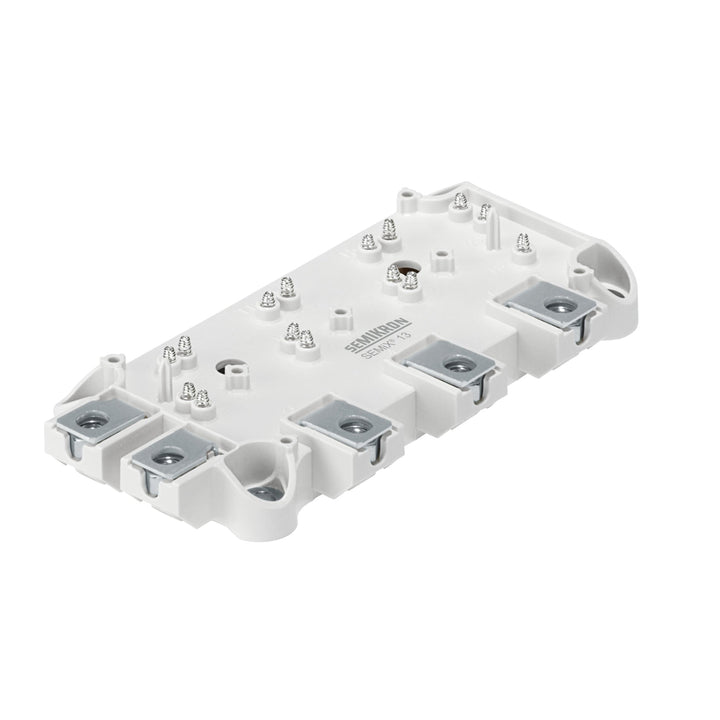

The Semikron Semix 151GD066HDS is a six-pack IGBT module rated at 150 A and 1200 V, built into the compact SEMiX 13 housing. It integrates six IGBT switches and freewheeling diodes in a single module, enabling space-efficient and thermally optimized three-phase inverter designs. Ideal for demanding industrial applications, this module offers low conduction losses, high switching performance, and robust thermal cycling.

Key Features

• Blocking Voltage: 1200 V

• Continuous Collector Current: 150 A

• Six-pack topology (3-phase bridge)

• Low VCE(sat) for reduced losses

• Electrically isolated baseplate

• SEMiX 13 compact form factor

• High thermal and power cycling capability

Technical Specifications

• Module Type: Six-Pack IGBT

• VCES: 1200 V

• IC: 150 A

• Configuration: Three-phase inverter

• Isolation Voltage: ≥2500 V RMS

• Case Style: SEMiX 13

• Mounting: Baseplate for heatsink integration

• Operating Temperature: –40 °C to +150 °C

• Reverse Diode Included: Yes

Applications

• Industrial motor drives

• Inverter and converter systems

• Renewable energy inverters

• UPS and power backup systems

• Power supplies and automation

Why Choose the Semix 151GD066HDS

• Integrated six-pack topology reduces component count

• Compact and efficient thermal design

• Suitable for high-performance inverter platforms

• Trusted Semikron quality for demanding applications

Order Now

The Semikron Semix 151GD066HDS IGBT module is available and ships worldwide.

Return to the Semikron IGBT Modules collection for more models, ratings, and configurations.

Explore the Power Electronics Components main category main category to discover diodes, thyristors, GTOs, MOSFETs, and other semiconductor solutions.
