Schneider Electric MC-4/11/22/400 VDM01D22AQ00

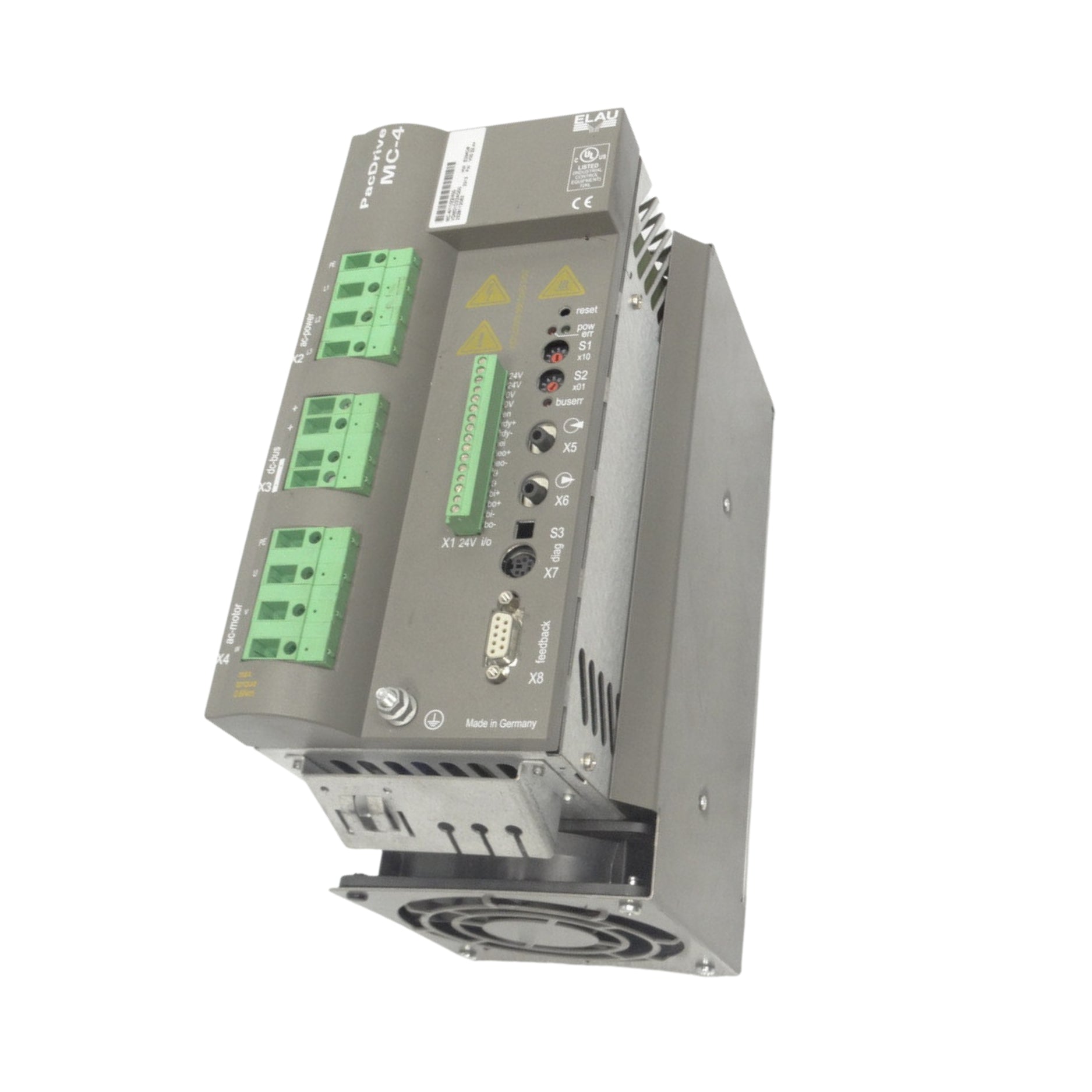

Schneider Electric VDM01D22AQ00  MC-4/11/22/400 – MC-4 Servo Drive

Overview

The Schneider Electric VDM01D22AQ00 is a high-performance servo drive from the MC-4 series, engineered for precise motor control in demanding industrial environments. With a 22 A output capacity, it operates on 3-phase 380–480 V AC input at 50/60 Hz, paired with a 24 V DC control supply. This drive provides an output of 0–480 V AC with frequencies up to 600 Hz, enabling highly dynamic and efficient motion control.

Designed for PacDrive automation systems, the VDM01D22AQ00 ensures reliable performance, accurate speed regulation, and seamless integration into complex multi-axis setups.

Key Features

• Model: VDM01D22AQ00

• Series: MC-4 Servo Drives

• Input: 3-phase, 380–480 V AC, 50/60 Hz

• Control Voltage: 24 V DC

• Rated Output Current: 22 A

• Output Voltage: 0–480 V AC

• Output Frequency: 0–600 Hz

• Auxiliary Output: 1 A

• Compact design for cabinet mounting

• Optimized for precision and reliability in automation

Technical Specifications

• Manufacturer: Schneider Electric

• Product Type: Servo Drive

• Catalog Number: VDM01D22AQ00

• Input Voltage: 380–480 V AC, 3-phase

• Input Frequency: 50/60 Hz

• Control Supply: 24 V DC

• Output Current: 22 A

• Output Frequency Range: 0–600 Hz

• Output Voltage: 0–480 V AC

• Auxiliary Output: 1 A

• Series: MC-4/11/22/400

• Cooling: Integrated air cooling

• Compliance: CE Marked, RoHS Compliant

Applications

• Robotics and automation systems

• High-speed packaging machinery

• Printing and converting equipment

• Multi-axis industrial motion control

• Assembly and handling systems

Why Choose the Schneider Electric VDM01D22AQ00

• Precise motion control with wide frequency range

• Robust 22 A output for high-performance applications

• Reliable integration with PacDrive MC-4 platforms

• Compact, efficient design for industrial environments

• Backed by Schneider Electric’s proven quality

Order Now

The Schneider Electric VDM01D22AQ00 MC-4 servo drive is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
