Schneider Electric VDM01D22AA00 MC-4/11/22/400

Schneider Electric VDM01D22AA00

Overview

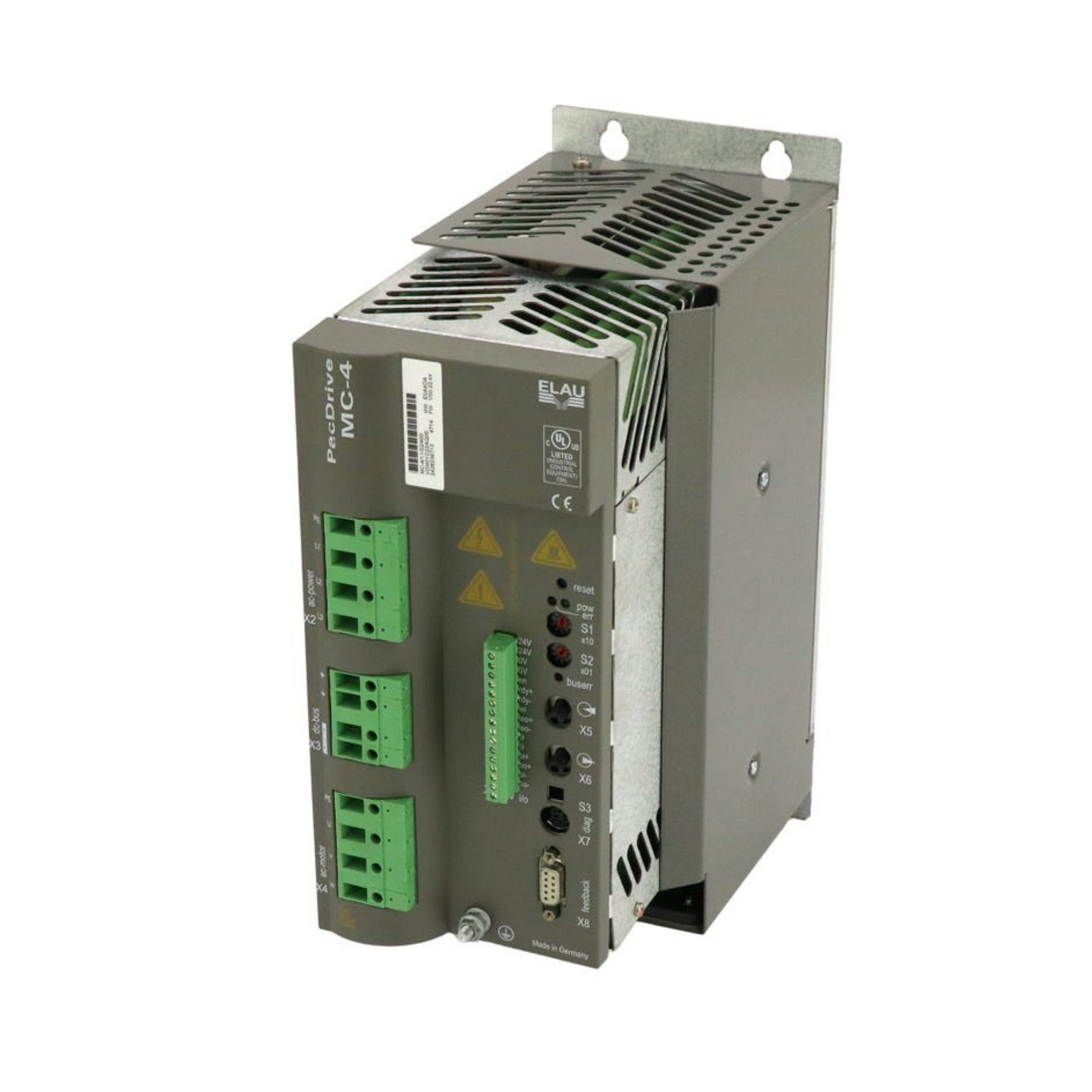

The Schneider Electric VDM01D22AA00, also known as the MC-4/11/22/400, is a digital servo drive from the PacDrive MC-4 series, designed for demanding automation and motion control tasks. Rated for 22 A output current with a 3-phase 380–480 V AC input, this drive delivers robust performance for medium to high-power servo applications.

Part of the ELAU PacDrive motion platform, the VDM01D22AA00 ensures precise, synchronized motion control and reliable operation in industrial environments such as packaging machinery, robotics, and automated production systems.

Key Features

• Model: MC-4/11/22/400

• Part Number: VDM01D22AA00

• Rated Output Current: 22 A

• Input Voltage: 3-phase 380–480 V AC, 50/60 Hz

• Output Voltage: 0–480 V AC

• Output Frequency: up to 600 Hz

• Control Voltage: 24 V DC logic supply

• Compact servo drive design for panel or wall mounting

• Part of the Schneider Electric ELAU PacDrive MC-4 family

Technical Specifications

• Manufacturer: Schneider Electric (ELAU)

• Part Number: VDM01D22AA00

• Model Reference: MC-4/11/22/400

• Rated Current: 22 A

• Rated Voltage: 3-phase, 380–480 V AC

• Control Supply: 24 V DC, ~1 A

• Output Voltage: 0–480 V AC

• Output Frequency: 0–600 Hz

• Ventilation: Internal fan cooling

• Application Platform: PacDrive MC-4

Applications

• Packaging machines and conveyor systems

• Robotics and CNC machinery

• Automated assembly lines

• High-precision motion control tasks

• OEM and retrofit industrial automation solutions

Why Choose the VDM01D22AA00

• High-current servo drive with 22 A capacity

• Seamless integration with PacDrive MC-4 motion systems

• Precise control with wide frequency output range

• Compact design ensures easy installation and serviceability

• Backed by Schneider Electric’s engineering reliability and global support

Order Now

The Schneider Electric VDM01D22AA00 MC-4/11/22/400 servo drive is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
