Schneider Electric VDM01D10AA00 MC-4/11/10/400

Schneider Electric VDM01D10AA00 MC-4/11/10/400

Overview

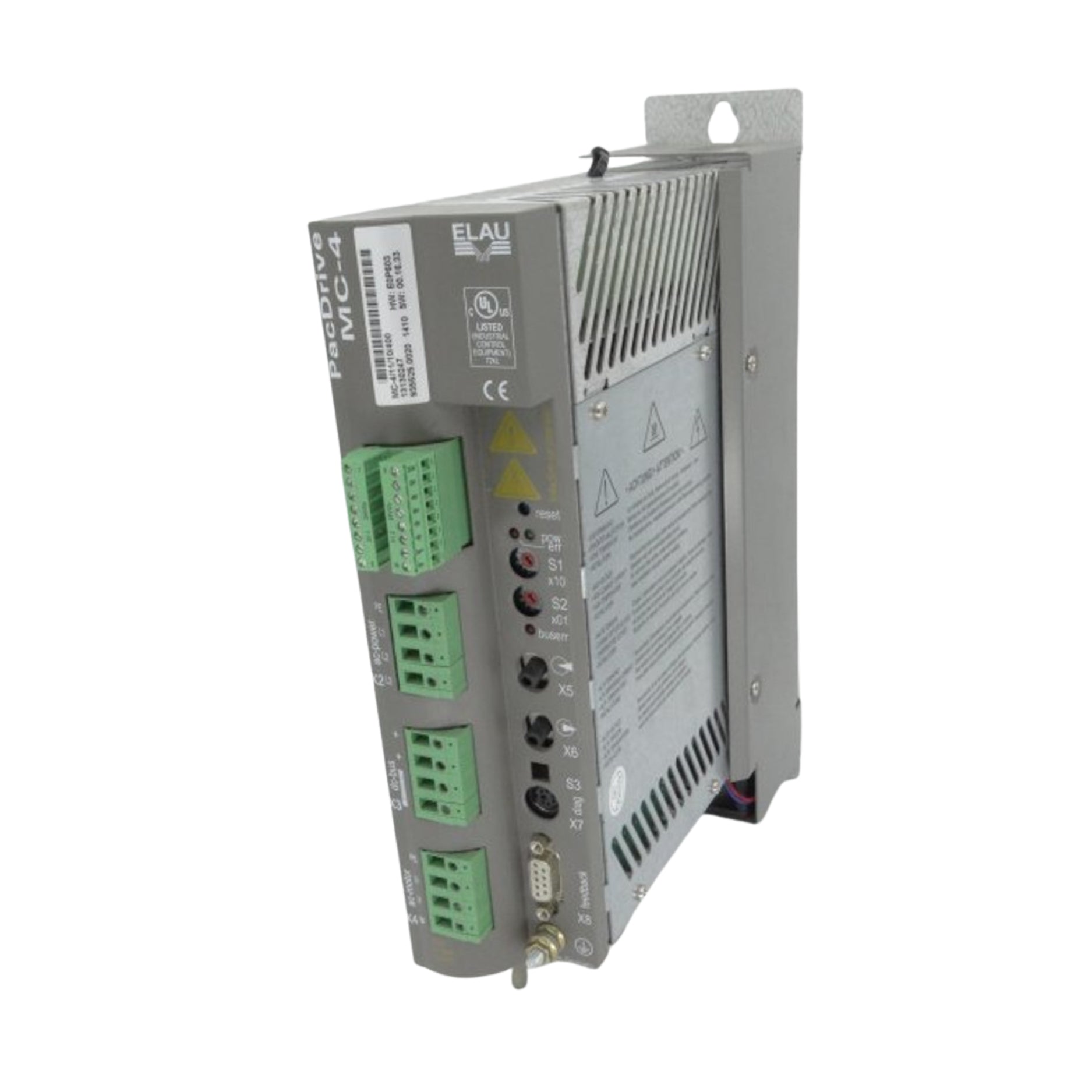

The Schneider Electric MC-4/11/10/400 is a digital servo drive built for precision motion control in demanding industrial automation applications. With a compact and autonomous structure, it is suitable for wall mounting and integrates leading-edge servo technology to deliver reliable and efficient performance.

Rated for 3-phase 380–480 V AC supply with 10 A current capacity, the drive offers stable operation across a wide input range. A 24 V DC control voltage ensures safe and responsive electronic control, while the integrated internal fan guarantees efficient cooling during operation.

Key Features

• Digital servo drive with compact autonomous design

• Input Voltage: 3-phase, 380 V (–10%) to 480 V (+10%)

• Rated Current: 10 A

• Control Voltage: 24 V DC (–15% / +25%), 1 A

• Electronics Supply Power: Approx. 12 W

• Mains Frequency: 48–62 Hz

• Cooling: Internal fan ventilation

• Ambient Operating Temperature: +5 °C to +45 °C

• Suitable for wall mounting

Technical Specifications

• Brand: Schneider Electric

• Part Number: VDM01D10AA00 MC-4/11/10/400

• Phases: 3

• Rated Connection Voltage: AC 380–480 V

• Rated Current: 10 A

• Control Voltage / Power: DC 24 V, 1 A

• Electronics Supply: ~12 W

• Mains Frequency: 48–62 Hz

• Cooling Method: Internal fan

• Ambient Temperature Range: +5 °C to +45 °C

Applications

• Industrial automation and motion control systems

• Robotics and CNC machinery

• Packaging and conveyor equipment

• Material handling and assembly lines

• OEM and retrofit installations requiring precision control

Why Choose the MC-4/11/10/400

• Compact wall-mountable servo drive with advanced technology

• Reliable 10 A output for medium power servo applications

• Stable across wide voltage and frequency ranges

• Integrated fan ensures optimal thermal management

• Backed by Schneider Electric’s global support and quality

Order Now

The Schneider Electric MC-4/11/10/400 digital servo drive is available and ships worldwide.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
