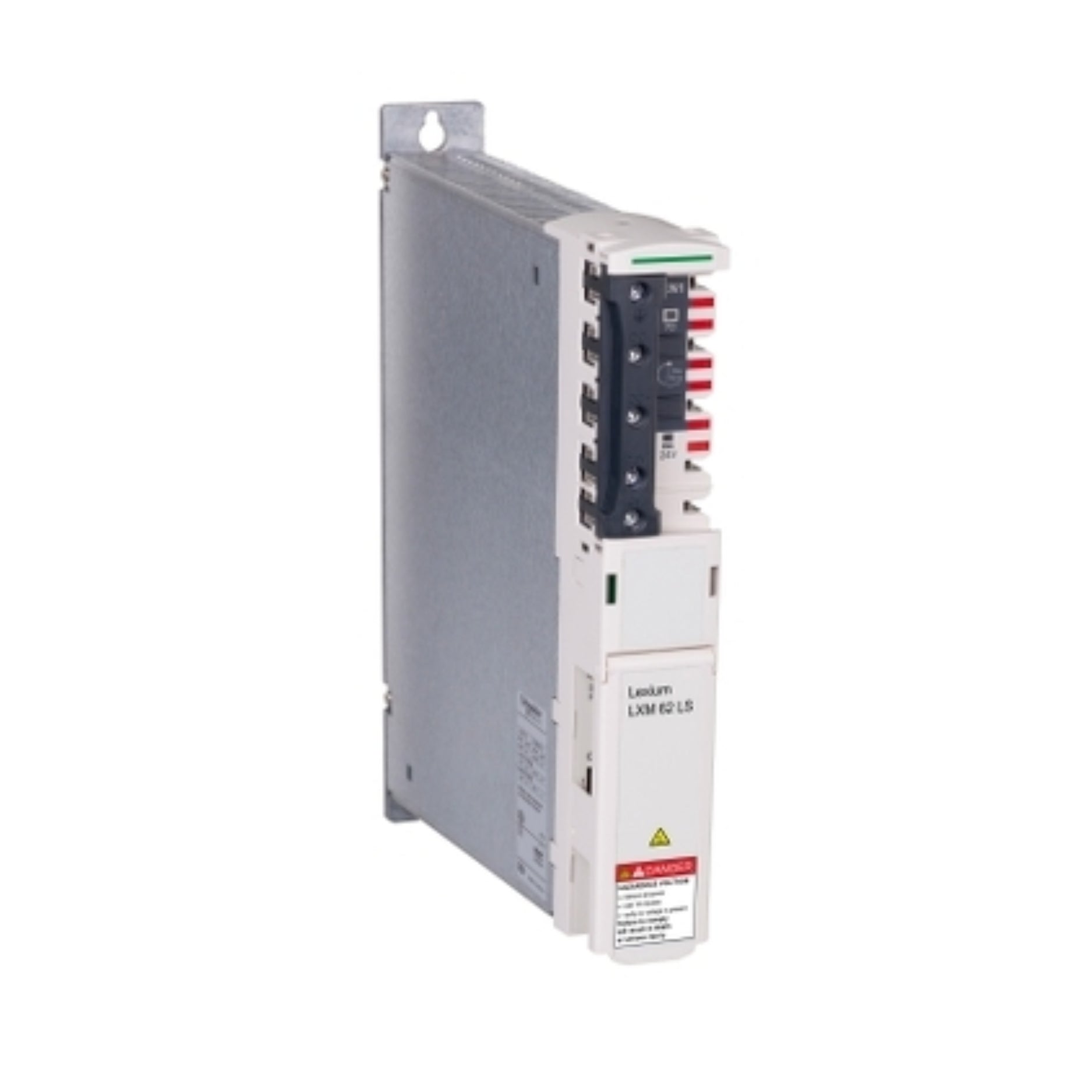

Schneider Electric LXM62LS18A01000

Overview

The Schneider Electric LXM62LS18A01000 is a high-performance double drive from the Lexium 62 PacDrive 3 range, delivering 9 A continuous output current and 4.3 kW of continuous power. Designed for multi-axis automation, this unit integrates with PacDrive 3 LMC motion controllers over SERCOS III communication, providing unmatched flexibility in demanding machine control environments.

Engineered for packaging, robotics, and material handling, it combines robust performance with a compact IP20 design. Built-in safety functions such as STO, SS1, SS2, SOS, SMS, SLS, and SDI ensure safe, reliable, and efficient operation.

Key Features

• Brand: Schneider Electric

• Series: Lexium 62, PacDrive 3

• Model: LXM62LS18A01000

• Drive Type: Double Drive

• Continuous Output Current: 9 A (4 kHz)

• Peak Current (3s): 27 A

• Continuous Power: 4.3 kW

• Supply Voltage: 230 V / 400 V (single or three-phase)

• Switching Frequency: 8 kHz

• Communication: Integrated SERCOS III

• Safety Functions: STO, SS1, SS2, SOS, SMS, SLS, SDI

• Protection Rating: IP20

• Weight: 3 kg (6.6 lb)

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Input Voltage: 24 VDC (−20%…+25%)

• Output Voltage: 24 VDC

• Electrical Terminals:

  • CN4: 0.2…15 mm² (AWG 24–16)

  • CN5: 0.5…16 mm² (AWG 20–6)

  • CN6: 0.75…16 mm² (AWG 18–6)

  • CN7: 0.2…6 mm² (AWG 24–10)

  • Torque: 2.5 N·m (22.1 lbf·in)

Certifications & Standards

• Certifications: CE, UL, CSA, TÜV, EAC

• Standards Compliance:

  • IEC 62061

  • IEC 61800-3

  • IEC 61800-5-1 / IEC 61800-5-2

  • ISO 13849-1 / ISO 13849-2

  • IEC 61508

  • UL 508C

  • CSA C22.2 No 14

Motor Compatibility

• SH3 Servo Motors:

  • 100 mm (3 & 4 stacks)

  • 140 mm (1 stack)

• MH3 Servo Motors:

  • 100 mm (2 stacks)

• SHS Servo Motors

Applications

• General machine control

• High-performance packaging automation

• Robotics and multi-axis motion control

• Material handling systems

Why Choose LXM62LS18A01000

• Double drive with 4.3 kW / 9 A output for demanding automation needs

• Full SERCOS III integration for fast, synchronized motion

• Wide servo motor compatibility across SH3, MH3, and SHS motors

• Advanced built-in safety functions ensure reliable operation

• Global certifications make it suitable for worldwide deployment
