Schneider Electric LXM62DU60F21000

Overview

The Schneider Electric LXM62DU60F21000 is a double drive from the PacDrive 3 Lexium 62 series, delivering 2 A continuous current at 4 kHz with a rated power of 0.95 kW. Designed for flexible multi-axis configurations, it integrates directly with PacDrive motion controllers via SERCOS III communication.

Built to optimize system performance, this drive supports advanced safety functions (STO, SS1, SS2, SOS, SMS, SLS, SDI) and ensures safe and reliable operation in packaging machinery, material handling, and high-speed automation applications.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DU60F21000

• Drive Type: Double Drive

• Continuous Output Current: 2 A at 4 kHz

• Peak Current (3s): 6 A

• Continuous Power: 0.95 kW

• Supply Voltage: 230 V / 400 V, single or three-phase

• Switching Frequency: 8 kHz

• Communication: Integrated SERCOS III

• Safety Functions: STO, SS1, SS2, SOS, SMS, SLS, SDI

• Weight: 3 kg (6.6 lb)

• Protection Rating: IP20

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Input Voltage: 24 VDC (−20%…+25%)

• Output Voltage: 24 VDC

• Electrical Connection:

  • CN4: 0.2…15 mm², AWG 24–AWG 16

  • CN5: 0.5…16 mm², AWG 20–AWG 6

  • CN6: 0.75…16 mm², AWG 18–AWG 6

  • CN7: 0.2…6 mm², AWG 24–AWG 10

  • Torque: 2.5 N·m (22.1 lbf·in)

Certifications & Standards

• Certifications: CE, UL, CSA, TÜV, EAC

• Standards:

  • UL 508C

  • CSA C22.2 No 14

  • IEC 61508

  • IEC 62061

  • IEC 61800-3

  • IEC 61800-5-1 / IEC 61800-5-2

  • ISO 13849-1 / ISO 13849-2

Motor Compatibility

• SH3 Servo Motors:

  • 55 mm (1, 2, 3 stacks)

  • 70 mm (1, 2, 3 stacks)

  • 100 mm (1 stack)

• MH3 Servo Motors:

  • 70 mm (1 stack)

• SHS Servo Motors

Applications

• Packaging machinery automation

• General machine control

• Material handling systems

• Multi-axis industrial motion solutions

Why Choose the LXM62DU60F21000

• Compact double drive solution with 0.95 kW power

• Advanced safety-certified functions integrated

• Compatible with a wide range of Lexium SH3/MH3/SHS servo motors

• Optimized for PacDrive 3 LMC controllers with SERCOS III

• Backed by global compliance (CE, UL, CSA, TÜV, EAC)

Order Now

The Schneider Electric LXM62DU60F21000 Lexium 62 Double Drive is available and ships worldwide.

SEO-Optimized Image Alt Text:

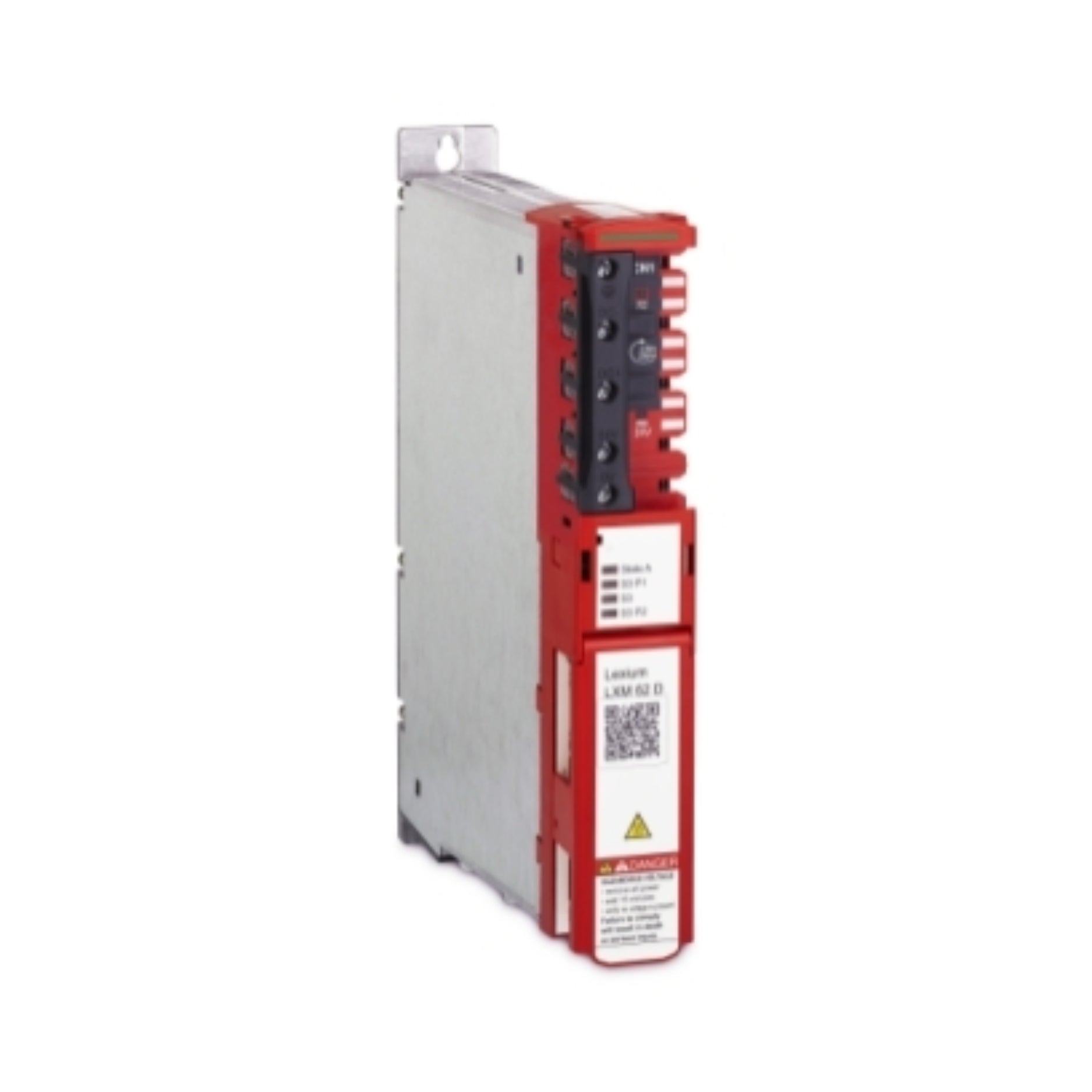

Schneider Electric LXM62DU60F21000 Lexium 62 double drive, 0.95 kW, 2 A, SERCOS III
