Schneider Electric LXM62DD45E21000

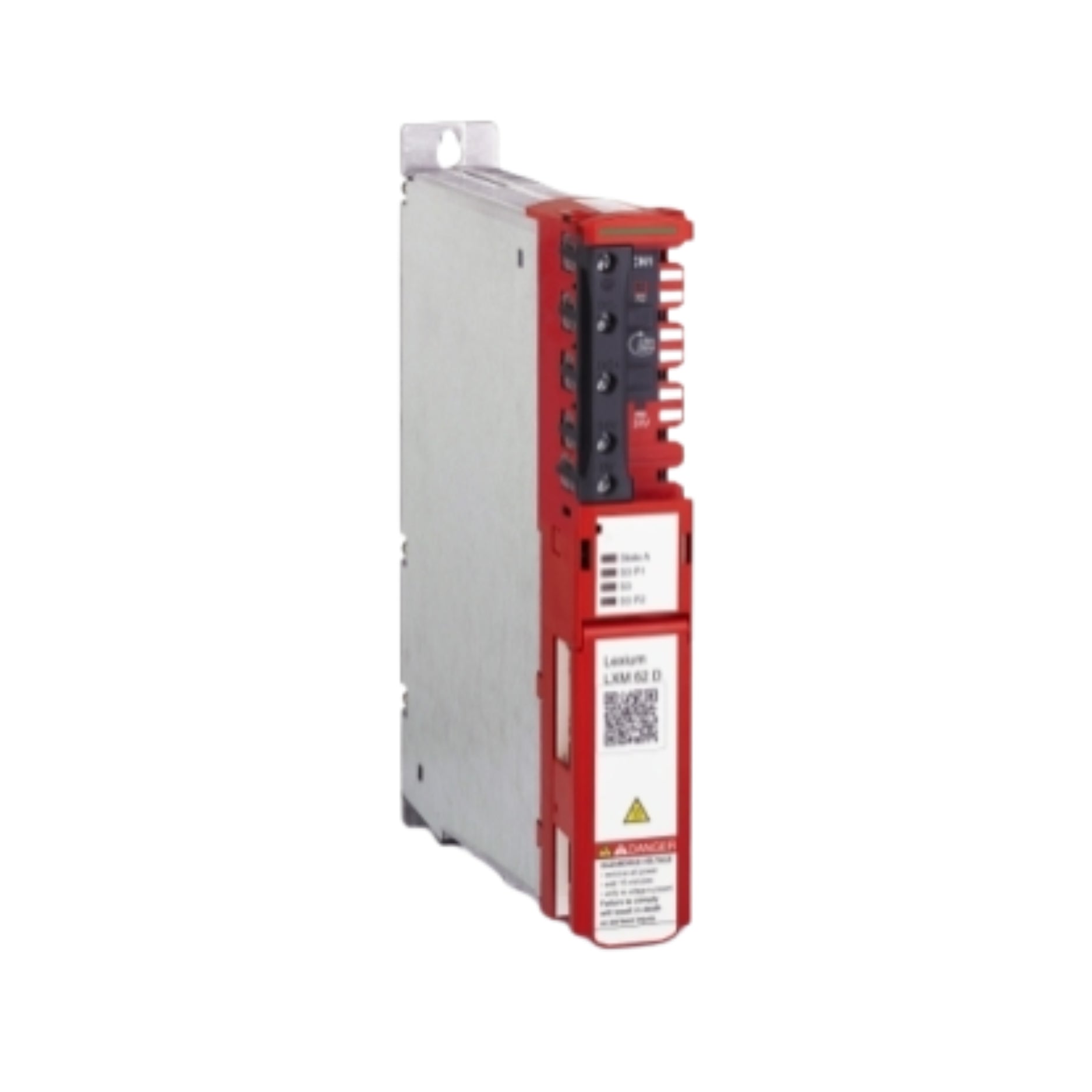

Schneider Electric LXM62DD45E21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DD45E21000 is a Lexium 62 single drive from the PacDrive 3 automation platform. With 20 A continuous output current at 4 kHz and a continuous power of 9.6 kW, it is engineered for high-performance industrial automation. Integrated SERCOS III communication ensures seamless multi-axis control with PacDrive 3 LMC motion controllers, making it ideal for packaging, handling, and complex machine automation.

This drive is compact, efficient, and IP20-rated, providing safe operation in demanding industrial environments. It comes furnished with connectors and includes an accessory kit for easier installation.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DD45E21000

• Device Type: Single Drive

• Continuous Current: 20 A at 4 kHz

• Peak Current: Higher transient handling capability

• Continuous Power: 9.6 kW

• Rated Supply Voltage: 24 V DC

• Communication: Integrated SERCOS III

• Weight: 3 kg (6.6 lb)

• Protection: IP20

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Electrical connection: Furnished with connectors

• Interface: SERCOS III physical layer

Certifications & Standards

• Certifications: CE, UL, CSA, TÜV, EAC

• Standards:

  • UL 508C

  • CSA C22.2 No 14

  • EN/ISO 13849-2

  • EN 62061

  • EN 61800-3

  • IEC 61508

  • EN 61800-5-1

Motor Compatibility

• SH3 servo motors:

  • 140 mm (4 motor stacks)

  • 205 mm (1 motor stack)

• MH3 servo motors:

  • 140 mm (2 motor stacks)

Applications

• Packaging machine automation

• General machine control

• Material handling systems

• Multi-axis coordinated control

Why Choose the LXM62DD45E21000

• 9.6 kW high-performance single drive in compact housing

• Certified for global compliance (CE, UL, CSA, TÜV, EAC)

• SERCOS III integration for PacDrive 3 automation systems

• Wide servo motor compatibility for flexible machine design

• Includes accessory kit for faster installation

Order Now

The Schneider Electric LXM62DD45E21000 Lexium 62 Single Drive is available and ships worldwide.
