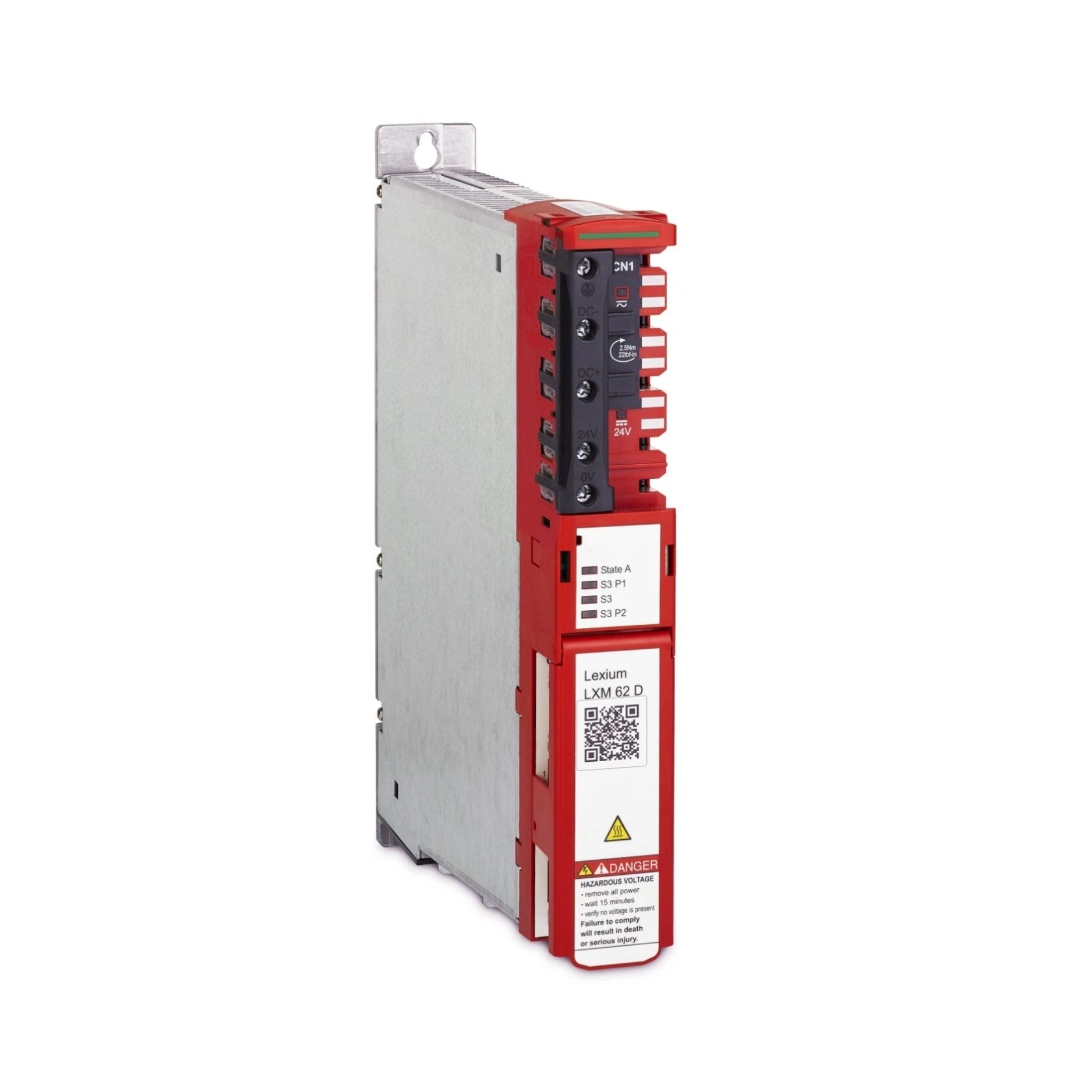

Schneider Electric LXM62DD27F21000

Overview

The Schneider Electric LXM62DD27F21000 is a double drive from the Lexium 62 PacDrive 3 series, designed for high-performance multi-axis automation. Delivering 9 A continuous output current at 4 kHz and 4.3 kW power, it integrates seamlessly with PacDrive 3 LMC controllers via SERCOS III communication.

This drive supports a wide range of servo motor compatibility (SH3, MH3, SHS) and is tailored for packaging machinery, robotics, and material handling applications. With advanced integrated safety functions, it ensures both machine efficiency and operational safety.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DD27F21000

• Drive Type: Double Drive

• Continuous Output Current: 9 A at 4 kHz

• Peak Current (3s): 27 A

• Continuous Power: 4.3 kW

• Supply Voltage: 230 V / 400 V (single or three-phase)

• Switching Frequency: 8 kHz

• Communication: Integrated SERCOS III

• Safety Functions: STO, SS1, SS2, SOS, SMS, SLS, SDI

• Weight: 3 kg (6.6 lb)

• Protection Rating: IP20

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Input Voltage: 24 VDC (−20%…+25%)

• Output Voltage: 24 VDC

• Electrical Terminals:

  • CN4: 0.2…15 mm² (AWG 24–16)

  • CN5: 0.5…16 mm² (AWG 20–6)

  • CN6: 0.75…16 mm² (AWG 18–6)

  • CN7: 0.2…6 mm² (AWG 24–10)

  • Torque: 2.5 N·m (22.1 lbf·in)

Certifications & Standards

• Certifications: CE, UL, CSA, TÜV, EAC

• Standards:

  • UL 508C

  • IEC 61508

  • IEC 62061

  • IEC 61800-3 / IEC 61800-5-1 / IEC 61800-5-2

  • ISO 13849-1 / ISO 13849-2

  • CSA C22.2 No 14

Motor Compatibility

• SH3 Servo Motors:

  • 100 mm (3, 4 stacks)

  • 140 mm (1 stack)

• MH3 Servo Motors:

  • 100 mm (2 stacks)

• SHS Servo Motors

Applications

• General machine control

• High-speed packaging automation

• Robotics and multi-axis motion

• Material handling systems

Why Choose the LXM62DD27F21000

• High-performance double drive for 4.3 kW / 9 A applications

• Seamless integration into PacDrive 3 automation systems

• Advanced integrated safety functions (STO, SS1, SS2, SOS, SLS, etc.)

• Wide servo motor compatibility across SH3, MH3, and SHS ranges

• Certified for global use (CE, UL, CSA, TÜV, EAC)

Order Now

The Schneider Electric LXM62DD27F21000 Lexium 62 Double Drive is available and ships worldwide.
