Schneider Electric LXM62DD27E21000

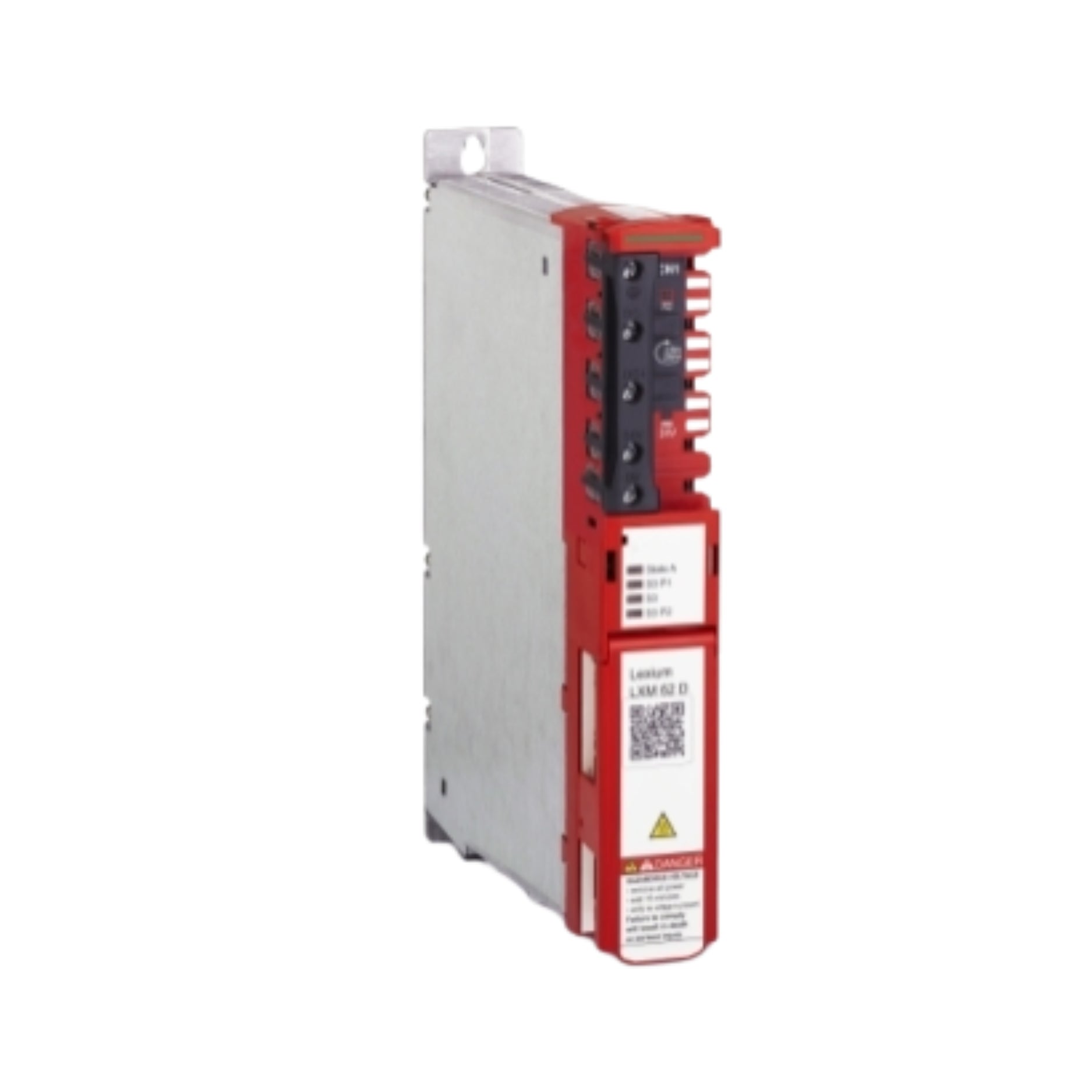

Schneider Electric LXM62DD27E21000 – Lexium 62 Single Drive

Overview

The Schneider Electric LXM62DD27E21000 is a single drive from the PacDrive 3 Lexium 62 family, delivering 9 A continuous output current at 4 kHz and a rated power of 4.3 kW. It integrates seamlessly into PacDrive-based automation systems via SERCOS III, ensuring precise, synchronized motion across multiple axes.

This unit is compact, lightweight, and IP20-rated, designed to meet the needs of general machine control, packaging automation, and material handling applications. Its advanced safety functions (STO, SS1, SS2, SOS, SMS, SLS, SDI) make it suitable for high-performance and safety-critical environments.

Key Features

• Brand: Schneider Electric

• Range: PacDrive 3 – Lexium 62

• Model: LXM62DD27E21000

• Device Type: Single Drive

• Continuous Output Current: 9 A at 4 kHz

• Peak Current (3s): 27 A

• Continuous Power: 4.3 kW

• Supply Voltage: 230 V / 400 V, single or three-phase

• Frequency: 50/60 Hz

• Communication: SERCOS III integrated

• Safety Functions: STO, SS1, SS2, SOS, SMS, SLS, SDI

• Weight: 3 kg (6.6 lb)

• Protection: IP20

I/O and Connectivity

• Inputs: 2 digital, 2 touch probe

• Outputs: 2 digital

• Discrete Input Voltage: 24 VDC (−20%…+25%)

• Interfaces: Integrated SERCOS III communication

• Electrical Connection: Terminals for CN4–CN7, torque spec 2.5 N·m

Certifications & Standards

• Certifications: CE, UL, CSA, EAC, TÜV

• Standards:

  • UL 508C

  • CSA C22.2 No 14

  • IEC 61508

  • IEC 62061

  • IEC 61800-5-1 / IEC 61800-5-2

  • IEC 61800-3

  • ISO 13849-1 / ISO 13849-2

Motor Compatibility

• SH3 Servo Motors:

  • 100 mm, 3-stack and 4-stack

  • 140 mm, 1-stack

• MH3 Servo Motors:

  • 100 mm, 2-stack

• SHS Servo Motors

Applications

• Packaging machinery automation

• Multi-axis general machine control

• Material handling systems

• High-performance motion control

Why Choose the LXM62DD27E21000

• 4.3 kW power with compact footprint

• Advanced safety-certified functions built-in

• Seamless integration with PacDrive 3 controllers via SERCOS III

• Wide servo motor compatibility for flexible system design

• Certified for global compliance (CE, UL, CSA, TÜV, EAC)

Order Now

The Schneider Electric LXM62DD27E21000 Lexium 62 Single Drive is available and ships worldwide.
