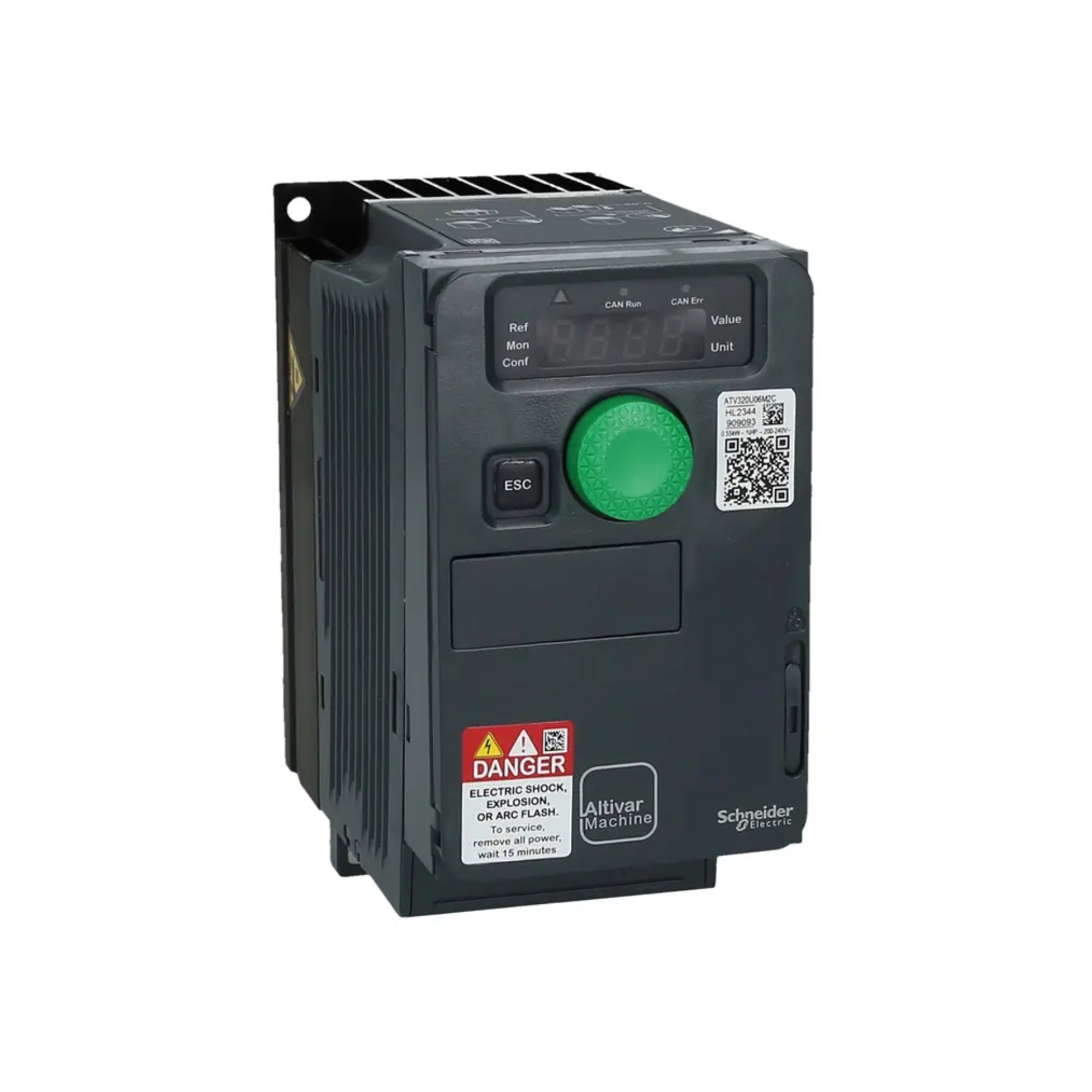

Schneider Electric ATV320U06M2C | 0.55 kW Variable Speed Drive

Schneider Electric ATV320U06M2C | 0.55 kW Variable Speed Drive – 200–240V AC Single-Phase Input, Altivar Machine ATV320 Series

Overview

The Schneider Electric ATV320U06M2C is a 0.55 kW (0.75 hp) variable speed drive from the Altivar Machine ATV320 series, designed to provide efficient and reliable motor control for asynchronous and synchronous motors. Operating with a 200–240V AC single-phase input, this compact drive is suitable for various industrial applications requiring precise speed and torque management.

Key Features

• Power Rating: 0.55 kW (0.75 hp)

• Input Voltage: 200–240V AC, single-phase

• Output Voltage: Up to 240V AC, three-phase

• Output Frequency: 0.5 to 599 Hz

• Control Type: Sensorless vector control for asynchronous and synchronous motors

• Integrated EMC Filter: Class C2

• Communication Protocols: Modbus Serial, CANopen

• Safety Functions: Safe Torque Off (STO)

• Mounting: Compact design for wall mounting

• Protection Rating: IP20

Technical Specifications

• Model Number: ATV320U06M2C

• Series: Altivar Machine ATV320

• Input Voltage Range: 200–240V AC (-15% to +10%)

• Input Frequency: 50/60 Hz ±5%

• Output Voltage: 0 to input voltage

• Output Frequency Range: 0.5 to 599 Hz

• Nominal Output Current: 3.7 A

• Overload Capacity: 150% of nominal motor torque for 60 seconds

• Control Inputs: 7 discrete inputs (configurable), 3 analog inputs

• Control Outputs: 3 discrete outputs (2 open collector, 1 relay), 1 analog output

• Cooling Method: Forced convection

• Operating Temperature: -10°C to +50°C without derating

• Dimensions (H x W x D): 143 mm x 72 mm x 138 mm

• Weight: Approximately 1.1 kg

• Certifications: CE, UL, CSA, EAC, RCM, ATEX

Applications

• Pumps and Fans: Efficient control of flow and pressure

• Conveyors: Smooth speed regulation for material handling

• HVAC Systems: Energy-efficient climate control

• General Machinery: Versatile motor control for various industrial equipment

Why Choose the Schneider Electric ATV320U06M2C?

• Energy Efficiency: Optimizes motor performance to reduce energy consumption

• Compact Design: Saves space in control panels

• Flexible Integration: Supports multiple communication protocols for seamless integration

• Enhanced Safety: Integrated Safe Torque Off (STO) function ensures safe operation

Order Now

Available for immediate worldwide shipping. Contact us for accessories, spare parts, and technical support to ensure seamless integration into your system.
