Schneider Electric ATV320U04M2C

Schneider Electric ATV320U04M2C | Altivar Machine ATV320 Variable Speed Drive

Overview

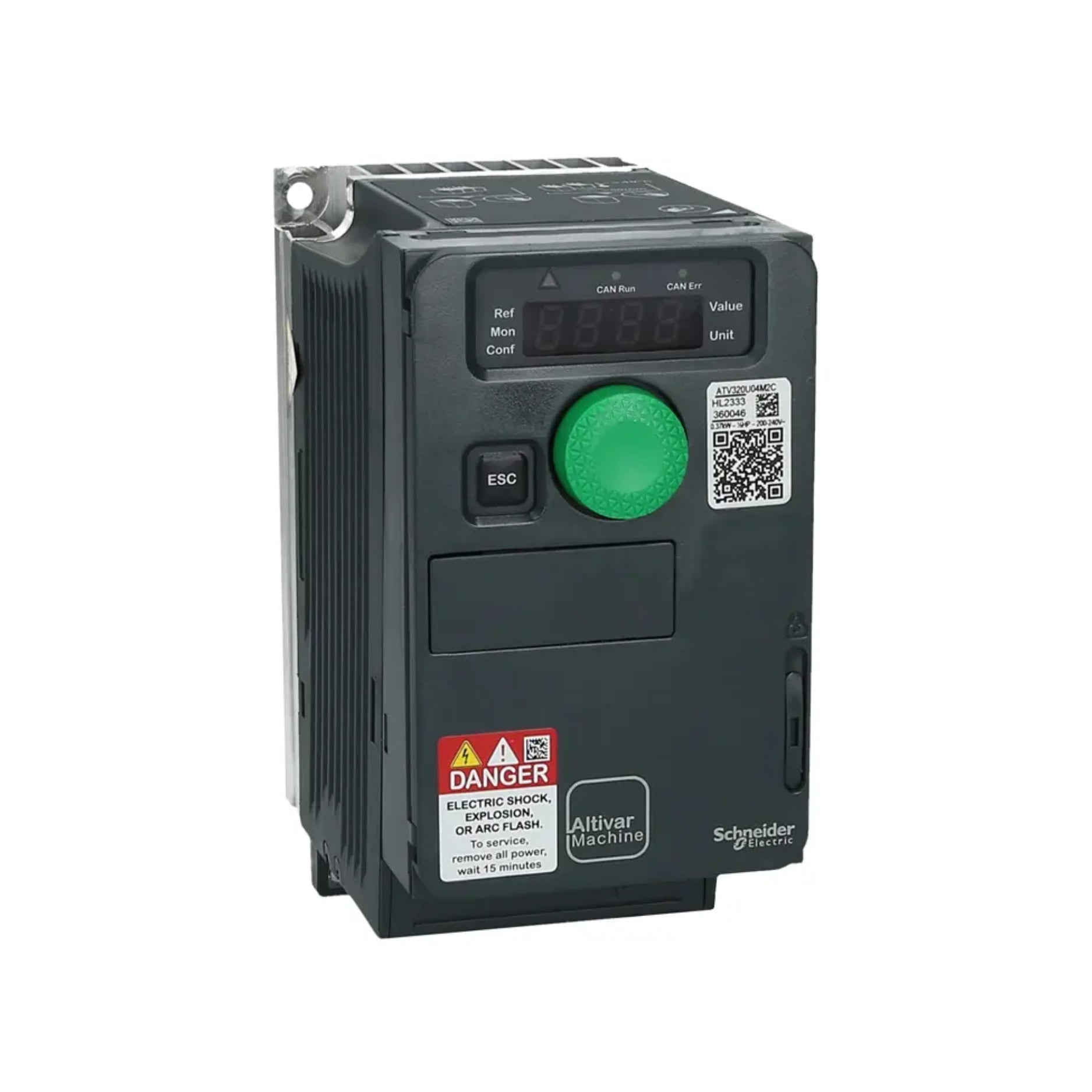

The Schneider Electric ATV320U04M2C is a 0.37 kW (0.5 HP) variable speed drive from the Altivar Machine ATV320 series, designed for compact machines requiring reliable and precise motor control. It features a single-phase 200–240V input, 3-phase output, and supports both asynchronous and synchronous motors, making it ideal for OEM applications.

Key Features

• Power Rating: 0.37 kW (0.5 HP)

• Input Voltage: 200–240V, single-phase

• Output Voltage: 3-phase, 200–240V

• Output Frequency: 0.1 to 599 Hz

• Control Modes:

  • V/f (Voltage/Frequency)

  • Sensorless Flux Vector Control (SFVC)

  • Flux Vector Control with Encoder (FVC)

• Motor Types: Asynchronous and synchronous (permanent magnet)

• EMC Filter: Integrated, Class C2

• Safety Function: Safe Torque Off (STO)

• Communication:

  • Embedded Modbus RTU and CANopen

  • Expandable with optional modules (EtherNet/IP, Profinet, etc.)

Technical Specifications

• Model: ATV320U04M2C

• Series: Altivar Machine ATV320

• Nominal Output Current: 1.9 A

• Max Transient Current: 2.85 A (for 60 seconds)

• Switching Frequency: Default 4 kHz (adjustable 2–16 kHz)

• Protection Rating: IP20

• Operating Temperature: -10°C to +50°C without derating

• Altitude: Up to 1000 m without derating

• Mounting: DIN rail or panel mount

• Dimensions (W x H x D): 72 mm x 143 mm x 158 mm

• Weight: Approx. 1.2 kg

Applications

• Fans and Small Pumps

• Conveyors and Light-Duty Machines

• HVAC Systems

• OEM Equipment with Space Constraints

Why Choose the Schneider Electric ATV320U04M2C?

• Compact and Versatile for Small Machines

• Integrated Safety and EMC Compliance

• Flexible Motor Control Modes

• Supports Modbus and CANopen Communication

Order Now

Fast shipping and worldwide delivery available.

Explore Schneider Electric Altivar 320 VFDs

Return to Schneider Electric Variable Frequency Drives

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
