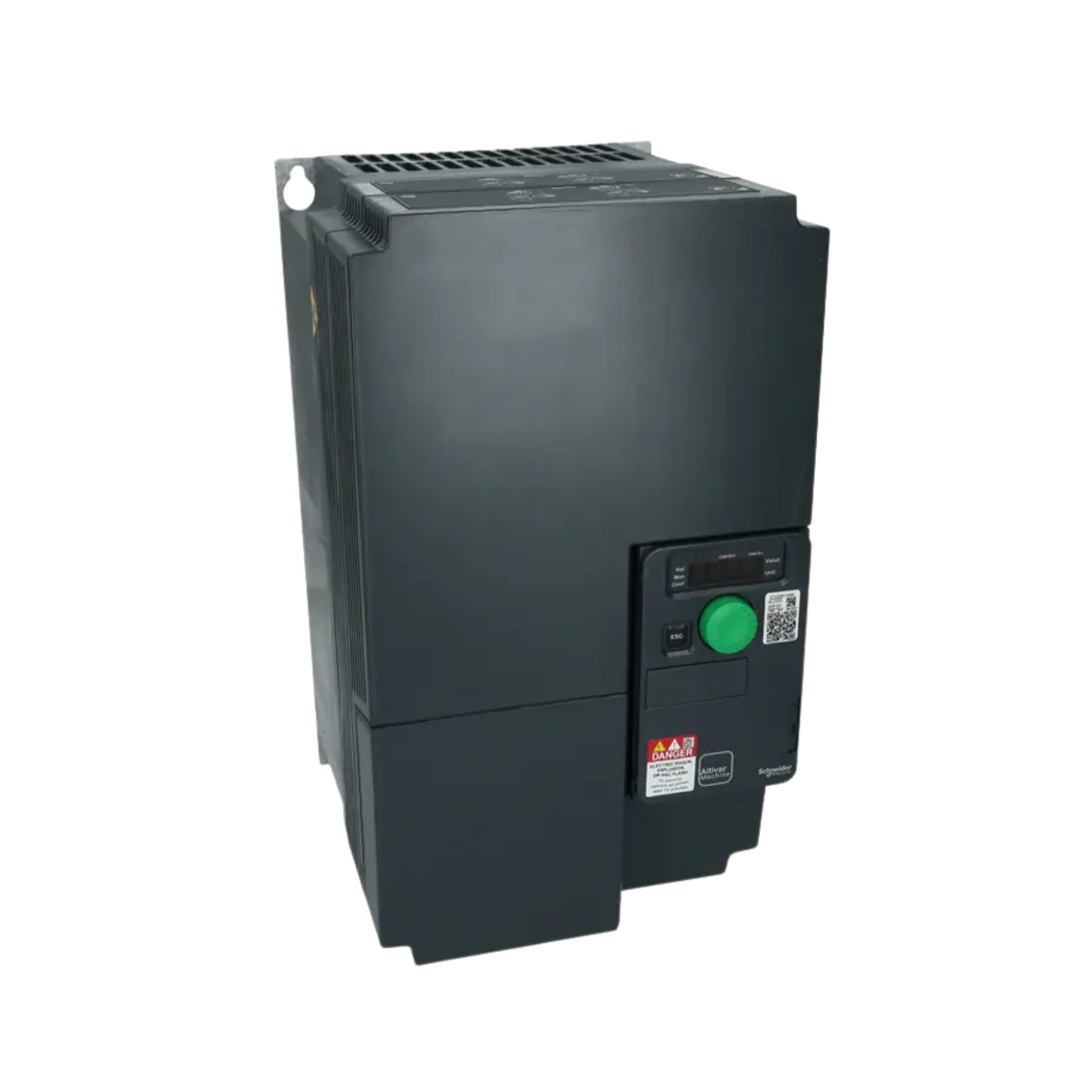

Schneider Electric ATV320D15N4C

Schneider Electric ATV320D15N4C | Altivar Machine ATV320 Variable Speed Drive

Overview

The Schneider Electric ATV320D15N4C is a 15 kW (20 HP) variable speed drive from the Altivar Machine ATV320 series, engineered for industrial motor control applications. Designed to support both asynchronous and permanent magnet motors, it features a 380–500V 3-phase input, integrated EMC filter, and flexible communication options, making it ideal for machine builders and OEMs.

Key Features

• Power Rating: 15 kW (20 HP)

• Input Voltage: 3-phase, 380–500V ±10%

• Output Frequency: 0.1 to 599 Hz

• Motor Types: Asynchronous and synchronous (permanent magnet)

• Control Modes:

  • V/f (Voltage/Frequency)

  • Sensorless Flux Vector Control (SFVC)

  • Flux Vector Control with Encoder (FVC)

• EMC Filter: Integrated Class C2

• Built-in Safety: Safe Torque Off (STO)

• Communication Protocols:

  • Embedded Modbus RTU & CANopen

  • Optional cards for Ethernet/IP, Profinet, Profibus, and more

Technical Specifications

• Model: ATV320D15N4C

• Series: Altivar Machine ATV320

• Nominal Output Current: 31 A

• Max Transient Current: 46.5 A (for 60 seconds)

• Switching Frequency: 4 kHz default (adjustable 2–16 kHz)

• Protection Rating: IP20

• Operating Temperature: -10°C to +50°C (without derating)

• Altitude: Up to 1000 m without derating

• Mounting: Panel or DIN rail

• Dimensions (W x H x D): Approx. 130 mm x 270 mm x 232 mm

• Weight: Approx. 5.3 kg

Applications

• Conveyors and Material Handling

• Pumps and Compressors

• Machine Tools and Packaging Equipment

• HVAC and Fan Control Systems

Why Choose the Schneider Electric ATV320D15N4C?

• Compact and Robust for Industrial Environments

• Versatile Motor Compatibility and Control Modes

• Built-In EMC Filter and STO for Safety and Compliance

• Flexible Networking with Multiple Communication Options

Order Now

Fast shipping and worldwide delivery available.

Explore Schneider Electric Altivar 320 VFDs

Return to Schneider Electric Variable Frequency Drives

New:

New product in original sealed packaging. The product may be of an older version or design. Packaging may show markings, discoloration, or signs of wear due to storage.

Refurbished:

Refurbished product fully tested, cleaned, and verified for proper operation. Not in original packaging. The item may show minor cosmetic signs resulting from previous handling or use.

Warranty:

DDPARTSSOLUTION Warranty: 1 Year.

Manufacturer’s warranty and support DO NOT apply.
