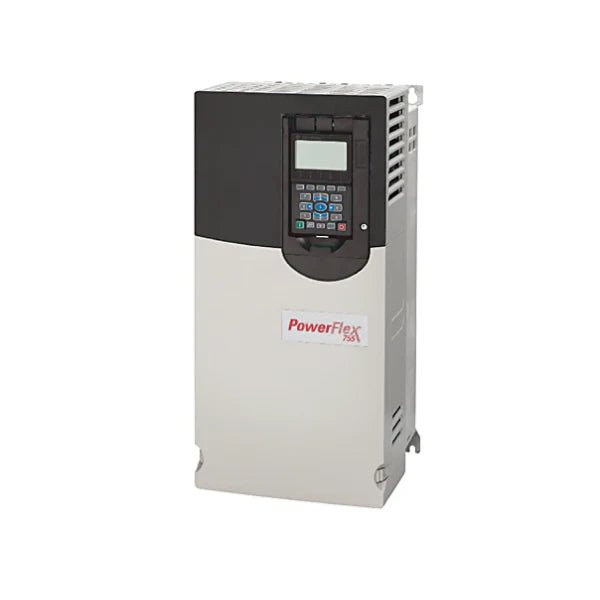

Allen Bradley PowerFlex 755 20G1ANF142JN0NNNNN AC Drive - 132kW ND/110kW HD, 690V

Product Description:

Rockwell Automation PowerFlex 755 20G1ANF142JN0NNNNN AC Drive – Powerful Motor Control for High-Voltage Industrial Applications with Embedded Ethernet/IP

DDPARTSSOLUTION offers the Rockwell Automation PowerFlex 755 20G1ANF142JN0NNNNN AC Drive, a powerful and robust solution engineered for demanding industrial automation applications operating at 690V. This air-cooled, open-type drive provides reliable and efficient motor control for high-power applications. A key feature of this model is embedded Ethernet/IP, enabling seamless network integration. This is a Frame 6 drive. Its dual Normal Duty (ND) and Heavy Duty (HD) ratings provide excellent versatility for handling diverse load requirements. Notably, this model has no DC terminals and is designed for 690V AC operation.

Key Features:

• Embedded Ethernet/IP: Enables seamless integration into EtherNet/IP networks for advanced control, monitoring, and data acquisition.
• Air Cooled, Open Type (IP00): Efficient cooling suitable for standard industrial environments (requires appropriate enclosure for protection).
• 690V AC Input, 3-Phase: Compatible with 690V industrial power systems. This high-voltage capability is a key differentiator.
• Dual Rating (132kW ND / 110kW HD): Offers flexibility for different load profiles and application requirements.
• AC Input with Precharge: Ensures smooth and controlled motor startup, minimizing stress on the motor and drive components.
• No DC Terminals: This drive is designed without DC bus connections.
• Integrated Filtering: Reduces electromagnetic interference (EMI) for improved system performance and reliability in industrial environments.
• CM Jumper Installed (Preferred): Simplifies grounding and enhances electromagnetic compatibility (EMC) compliance.
• Frame 6 Design: This drive is a Frame 6 size. Carefully consider installation space and mounting requirements.

Technical Specifications:

• Manufacturer: Rockwell Automation
• Series: PowerFlex 755
• Model: 20G1ANF142JN0NNNNN
• Type: AC Drive
• Cooling: Air Cooled
• Enclosure: Open Type (IP00 - Requires enclosure for protection)
• Frame Size: 6
• Main Power Supply: 690 V AC, 3-Phase
• Current: 142 A
• Capacity: 132 kW (Normal Duty), 110 kW (Heavy Duty)
• Output Frequency: 0-325 Hz
• Overload Capacity: 110% for 1 minute
• Braking Transistor: Not Included
• Filtering: Included
• CM Jumper: Installed
• HIM (Human Interface Module): Not Included (Blank)
• Embedded Communications: Ethernet/IP
• DC Terminals: Not Included

Applications:

This AC drive is ideally suited for a diverse range of industrial applications operating at 690V, including:

• High-power pumps and fans in industrial processes, HVAC systems, and water/wastewater treatment plants.
• Heavy-duty conveyors and material handling systems in manufacturing, warehousing, and logistics operations.
• Large packaging machinery, automated assembly lines, and other automated production equipment.
• High-power machine automation and process control systems.
• Textile machinery, woodworking equipment, metalworking machinery, and other industrial equipment with demanding load profiles.

Benefits:

• Operational Flexibility: Dual ND/HD rating provides versatility for diverse load requirements and application needs, optimizing performance and cost-effectiveness.
• Reliable Performance: Engineered for robust and dependable operation in demanding industrial environments, ensuring minimal downtime.
• Enhanced System Performance: Integrated filtering minimizes electromagnetic interference for improved system stability and reliability.
• Seamless Network Integration: Embedded Ethernet/IP simplifies communication, control, and data acquisition within industrial networks.
