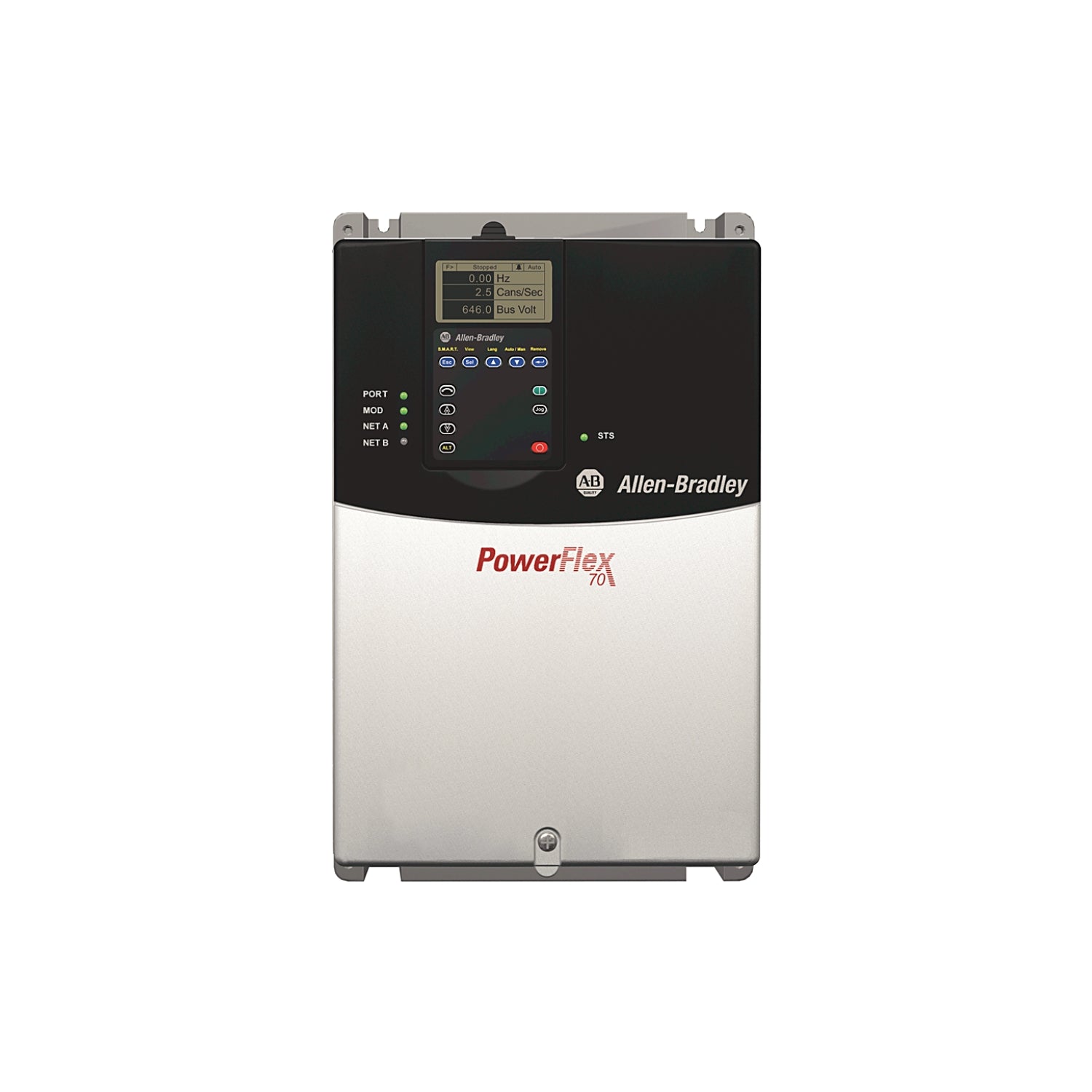

PowerFlex 70 AC Drive 70 20AB022A0AYNANC0 AC Drive - 7.5HP ND/5HP

Product Description:

Allen-Bradley PowerFlex 70 20AB022A0AYNANC0 AC Drive – Compact, Cost-Effective, and EMC Compliant Motor Control

DDPARTSSOLUTION offers the Allen-Bradley PowerFlex 70 20AB022A0AYNANC0 AC Drive, a compact and economical solution well-suited for a wide range of general-purpose industrial applications requiring EMC compliance. This drive provides reliable and efficient motor control in a small footprint, making it ideal for space-constrained installations.¹ Designed for panel mounting, it includes a built-in brake IGBT for dynamic braking capabilities (requires an external resistor). A key feature of this model is the integrated Second Environment Filter, ensuring compliance with CE EMC directives.²

Key Features:

• Compact Design: Small footprint for optimal panel space utilization.³
• 208-240V AC, 3-Phase Input: Compatible with standard North American industrial power systems.⁴
• Dual Rating (7.5 HP ND / 5 HP HD): Offers operational flexibility for handling various load profiles.
• Panel Mount - IP20 / NEMA Type 1: Designed for mounting within protected industrial environments.
• Brake IGBT Installed: Provides dynamic braking capability for controlled deceleration; an external brake resistor is required for operation.
• Enhanced Control: Offers advanced control features for optimized motor performance.⁵
• No Feedback: Operates in open-loop control mode.
• No HIM (Blank Plate): Does not include a Human Interface Module (HIM); configuration is typically performed via software.
• Without Drive Mounted Brake Resistor: Requires the use of an external brake resistor for dynamic braking functionality.
• Second Environment Filter (CE EMC Directive 89/336/EEC): Includes a filter for compliance with CE EMC standards for use in second environment industrial locations.⁶
• No Communication Module: Lacks an optional communication module for network connectivity.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁷
• Series: PowerFlex 70
• Model: 20AB022A0AYNANC0
• Input Voltage: 208-240V AC, 3-Phase
• Output Current: 22 A
• Capacity: 7.5 HP (Normal Duty), 5 HP (Heavy Duty)⁸
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁹
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module
• Control: Enhanced Control
• Feedback: No Feedback

Applications:

The Allen-Bradley PowerFlex 70 20AB022A0AYNANC0 AC Drive is well-suited for a variety of general-purpose industrial applications requiring CE compliance, including:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications
• Applications requiring compliance with European EMC directives

Benefits:

• Cost-Effective Solution: Provides an economical solution for basic motor control requirements.
• Compact Size: Conserves valuable panel space in installations.
• Simplified Installation: Designed for straightforward panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT allows for controlled deceleration when paired with an appropriately sized external resistor.
• CE EMC Compliance: Integrated Second Environment Filter ensures compliance with European EMC directives.¹⁰
