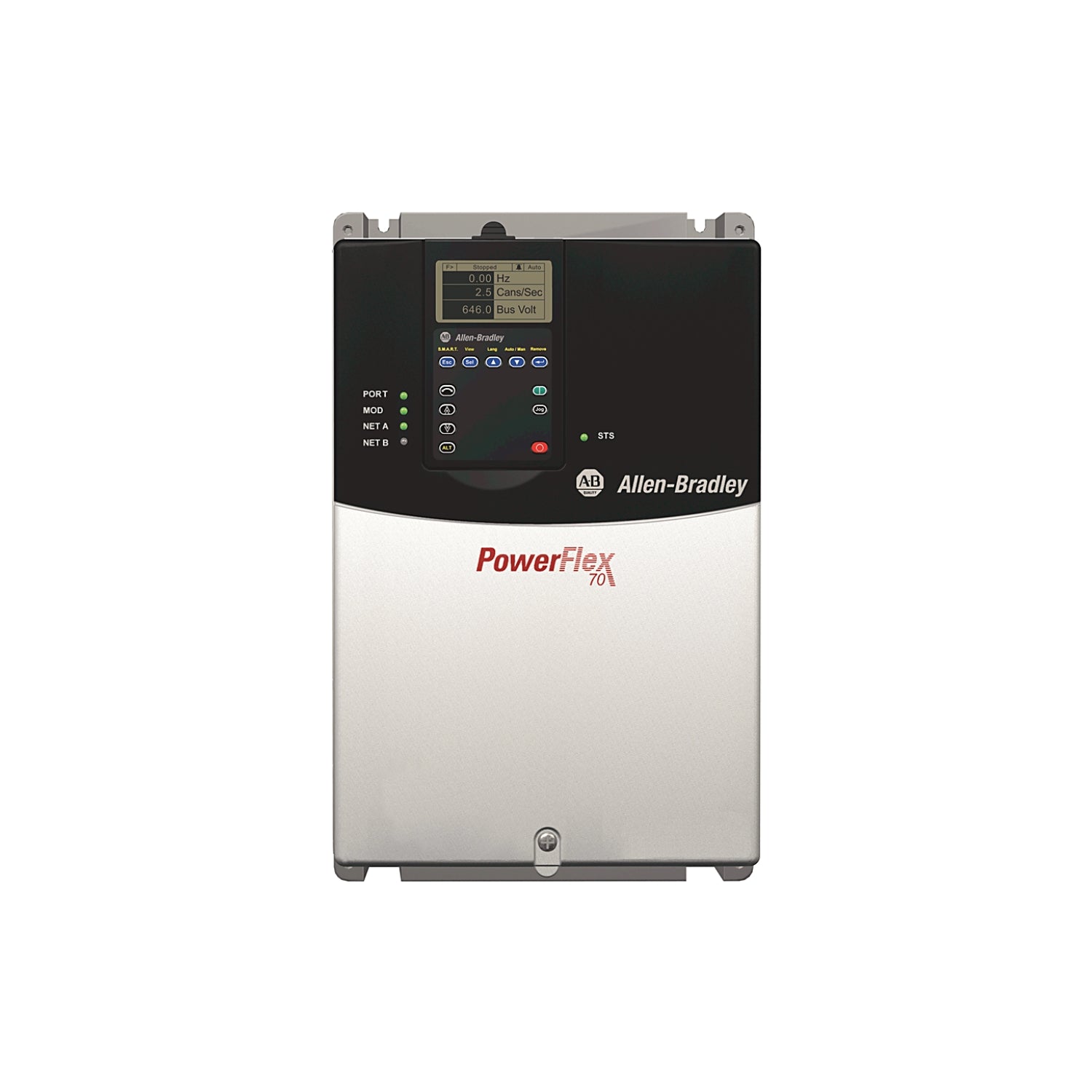

Allen Bradley PowerFlex 70 20AC030A0AYNANC0 AC Drive - 15kW/20HP

Product Description:

Allen-Bradley PowerFlex 70 20AC030A0AYNANC0 AC Drive – Compact, Cost-Effective, and EMC-Compliant Motor Control with Conformal Coating for Demanding Environments

DDPARTSSOLUTION offers the Allen-Bradley PowerFlex 70 20AC030A0AYNANC0 AC Drive, a compact and economical solution ideally suited for a wide range of general-purpose industrial applications requiring compliance with European EMC directives. This drive provides reliable and efficient motor control in a small footprint, making it ideal for space-constrained installations. Designed for panel mounting, it includes a built-in brake IGBT for dynamic braking capabilities (requires an external resistor). A key feature of this model is the integrated Second Environment Filter, ensuring compliance with CE EMC directives (89/336/EEC). This model also features conformal coating for enhanced protection against harsh environmental conditions.¹

Key Features:

• Compact Design: Small footprint optimizes panel space utilization.²
• 400V AC, 3-Phase Input: Designed for compatibility with standard European industrial power systems.
• Dual Rating (15kW / 20HP ND / 11kW / 15HP HD): Offers operational flexibility for handling various load profiles.³ Note: HP ratings are approximate conversions.
• Panel Mount - IP20 / NEMA Type 1: Designed for mounting within protected industrial environments.
• Brake IGBT Installed: Provides dynamic braking capability for controlled deceleration; an external brake resistor is required for operation.
• Enhanced Control: Offers advanced control features for optimized motor performance.
• No Feedback: Operates in open-loop control mode.
• No HIM (Blank Plate): Does not include a Human Interface Module (HIM); configuration is typically performed via software.
• Without Drive Mounted Brake Resistor: Requires the use of an external brake resistor for dynamic braking functionality.⁴
• Second Environment Filter (CE EMC Directive 89/336/EEC): Includes a filter for compliance with CE EMC standards for use in second environment industrial locations.⁵
• No Communication Module: Lacks an optional communication module for network connectivity.
• Conformal Coating: Provides enhanced protection against harsh environments, including humidity, dust, and corrosive substances.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁶
• Series: PowerFlex 70
• Model: 20AC030A0AYNANC0
• Input Voltage: 400V AC, 3-Phase⁷
• Output Current: 30 A
• Capacity: 15kW / 20HP (Normal Duty), 11kW / 15HP (Heavy Duty)⁸
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁹
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Second Environment Filter (CE EMC Directive 89/336/EEC)
• Communication: No Communication Module¹⁰
• Control: Enhanced Control
• Feedback: No Feedback
• Conformal Coating: Yes

Applications:

The Allen-Bradley PowerFlex 70 20AC030A0AYNANC0 AC Drive is well-suited for a variety of general-purpose industrial applications requiring CE compliance, especially those in harsh environments, including:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications
• Applications requiring compliance with European EMC directives
• Applications in humid, dusty, or corrosive environments

Benefits:

• Cost-Effective Solution: Provides an economical solution for basic motor control requirements.
• Compact Size: Conserves valuable panel space.
• Simplified Installation: Designed for straightforward panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT allows for controlled deceleration when paired with an appropriately sized external resistor.
• CE EMC Compliance: Integrated Second Environment Filter ensures compliance with European EMC directives.
• Enhanced Durability: Conformal coating provides added protection against harsh environmental conditions.
