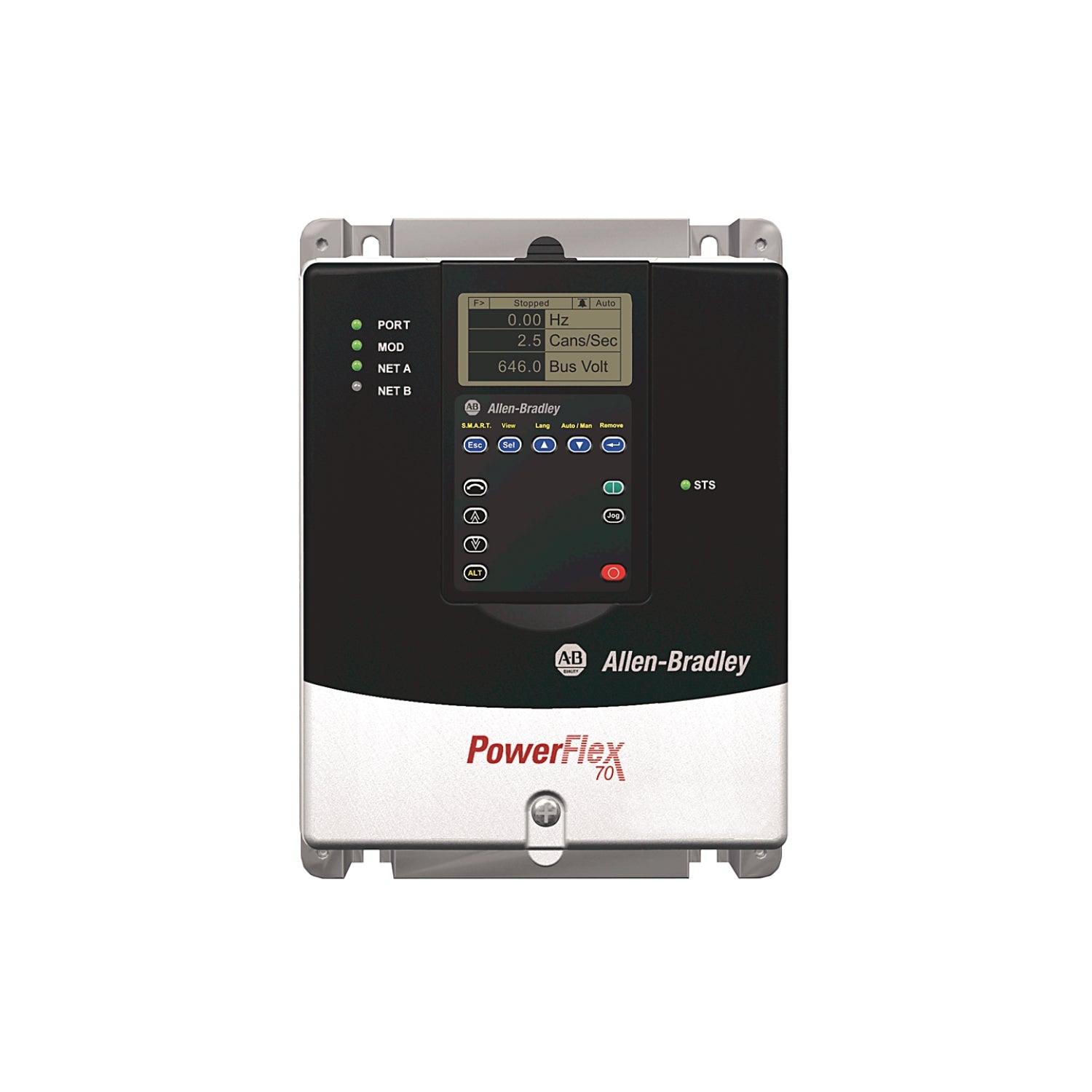

Allen Bradley PowerFlex 70 20AB6P8A0AYNNNC0 AC Drive - 2HP

Product Description:

Allen-Bradley PowerFlex 70 20AB6P8A0AYNNNC0 AC Drive – Compact and Economical Motor Control for General Purpose Applications

DDPARTSSOLUTION offers the Allen-Bradley PowerFlex 70 20AB6P8A0AYNNNC0 AC Drive, a compact and economical solution suitable for a wide range of general-purpose industrial applications. This drive provides reliable and efficient motor control in a small footprint, making it ideal for space-constrained installations. Designed for panel mounting, it includes a built-in brake IGBT for dynamic braking capabilities (requires an external resistor).

Key Features:

• Compact Design: Small footprint maximizes panel space utilization.
• 240 (208)V AC, 3-Phase Input: Compatible with standard North American industrial power systems.¹
• Dual Rating (2 HP ND / 1.5 HP HD): Offers operational flexibility for various load profiles.
• Panel Mount - IP20 / NEMA Type 1: Designed for mounting within protected industrial environments.
• Brake IGBT Installed: Provides dynamic braking capability for controlled deceleration; an external brake resistor is required for operation.
• Enhanced Control: Offers advanced control features for optimized motor performance.²
• No Feedback: Operates in open-loop control mode.
• No HIM (Blank Plate): Does not include a Human Interface Module (HIM); configuration is typically performed via software.
• Without Drive Mounted Brake Resistor: Requires the use of an external brake resistor for dynamic braking functionality.³
• Without CE Compliant Filter: Does not include a CE compliant filter for EMC compliance.
• No Communication Module: Lacks an optional communication module for network connectivity.

Technical Specifications:

• Manufacturer: Allen-Bradley (Rockwell Automation)⁴
• Series: PowerFlex 70
• Model: 20AB6P8A0AYNNNC0
• Input Voltage: 240 (208)V AC, 3-Phase
• Output Current: 6.8 A⁵
• Capacity: 2 HP (Normal Duty), 1.5 HP (Heavy Duty)
• Enclosure: Panel Mount - IP20 / NEMA Type 1⁶
• Braking: Brake IGBT Installed, External Brake Resistor Required
• Filtering: Without CE Compliant Filter
• Communication: No Communication Module
• Control: Enhanced Control
• Feedback: No Feedback

Applications:

The Allen-Bradley PowerFlex 70 20AB6P8A0AYNNNC0 AC Drive is well-suited for a variety of general-purpose industrial applications, including:

• Conveyors
• Pumps
• Fans
• Material handling equipment
• Small machines
• Simple positioning applications

Benefits:

• Cost-Effective Solution: Provides an economical solution for basic motor control requirements.
• Compact Size: Saves valuable panel space in installations.
• Simplified Installation: Designed for straightforward panel mounting.
• Dynamic Braking Capability: Built-in brake IGBT allows for controlled deceleration when paired with an appropriately sized external resistor.
