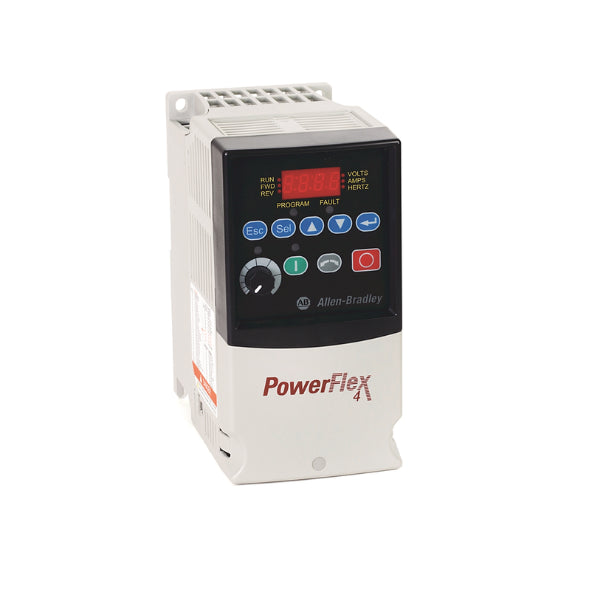

Allen-Bradley 22A-D1P4N104 PowerFlex 4 AC Drive

Product Description:

The Allen-Bradley 22A-D1P4N104 is a compact and cost-effective PowerFlex 4 AC drive designed for basic motor speed control in a variety of industrial applications.¹ This drive accepts 480V AC, 3-phase input and provides an output of 1.4 Amps, making it suitable for motors up to 0.5 HP (0.37 kW).² It features a compact Frame Size A, is designed for panel mounting with an IP20 open-type enclosure, has a fixed digital keypad with an LED display, and includes RS485 communication.³ It does not have a CE compliant filter.

Key Features:

• PowerFlex 4 Series: A well-established series of compact and reliable AC drives.⁴
• 480V AC, 3-Phase Input: Compatible with standard industrial three-phase power systems.⁵
• 1.4 Amp Output: Suitable for motors up to 0.5 HP (0.37 kW).⁶
• Compact Frame Size A: Allows for space-saving installations.⁷
• Panel Mount - IP20 (NEMA/UL Type Open): Requires installation within a protective enclosure.
• Fixed Digital Keypad with LED Display: Provides basic programming and monitoring capabilities directly on the drive.⁸
• RS485 Communication: Offers connectivity for network communication.
• No CE Compliant Filter: This means the drive is not intended for use in CE-regulated markets without additional filtering.

Technical Specifications:

• Product Type: AC Drive / Variable Frequency Drive (VFD)
• Catalog Number: 22A-D1P4N104
• Series: PowerFlex 4
• Input Voltage: 480V AC, 3-Phase⁹
• Output Current: 1.4 Amps
• Power Rating: 0.37 kW (0.5 HP)
• Frame Size: A
• Enclosure: Panel Mount - IP20 (NEMA/UL Type Open)
• Keypad: Fixed Digital Keypad with LED Display¹⁰
• Communication: RS485
• Filtering: No CE Compliant Filter
• Output Frequency: 0-400 Hz

Applications:

• Small Conveyors
• Small Pumps and Fans
• Simple Machine Control
• Basic Material Handling Equipment
