Bosch Rexroth R900567512 | 4WE6D6X/OFEG24N9K4

Bosch Rexroth R900567512 | High-Performance Directional Spool Valve

Overview

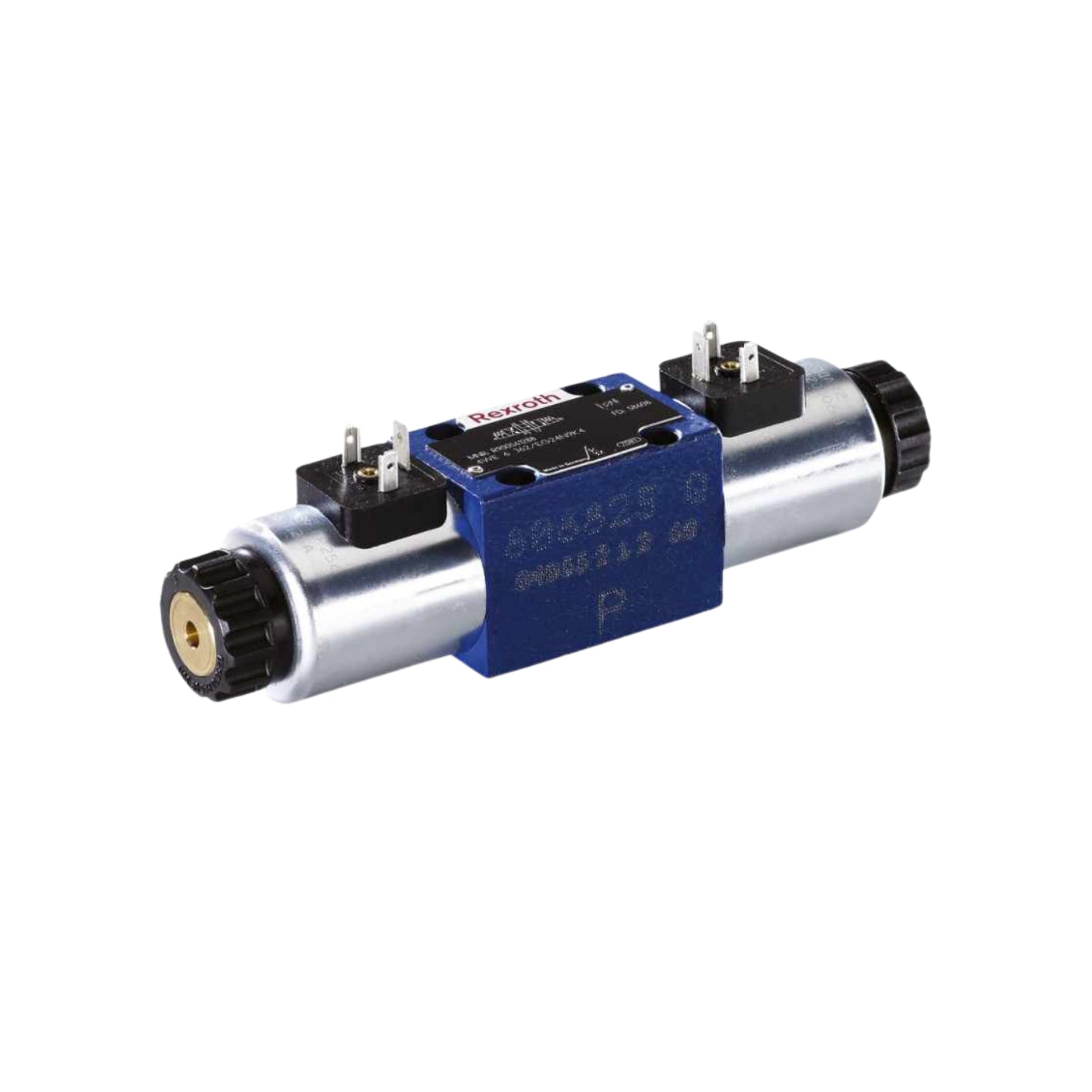

The Bosch Rexroth R900567512 is a 4WE6D6X/OFEG24N9K4 directional spool valve designed for precise hydraulic flow control in industrial applications. Featuring a detent mechanism and 24V DC solenoid actuation, this valve ensures reliable switching and flow direction control. Its compact size and robust construction make it suitable for various hydraulic systems requiring high performance and durability.

Key Features

• Valve Type: 4/2-way directional spool valve

• Spool Symbol: D (standard configuration)

• Actuation: Solenoid-operated with detent (impulse spool)

• Solenoid Voltage: 24V DC

• Manual Override: Protected hand override

• Mounting: Subplate mounting according to ISO 4401-03-02-0-05

• Electrical Connection: Connector 3-pole (2 + PE) per EN 175301-803

• Enclosure Rating: IP65 with appropriate mating connector

• Weight: Approximately 2 kg

Technical Specifications

• Size: 6

• Component Series: 6X

• Maximum Operating Pressure:

  • Ports A, B, P: 350 bar

  • Port T: 210 bar

• Maximum Flow Rate:

  • DC Operation: 80 l/min

  • AC Operation: 60 l/min

• Hydraulic Fluids: Suitable for HFC, HL, HLP, HLPD, HVLP, HVLPD

• Fluid Temperature Range: -20°C to +80°C

• Ambient Temperature Range: -20°C to +50°C

• Seal Material: NBR (standard), FKM (optional)

Applications

• Industrial Hydraulic Systems

• Machine Tools

• Material Handling Equipment

• Presses and Injection Molding Machines

• Mobile Machinery

Why Choose the R900567512?

• Detent Mechanism: Maintains spool position without continuous power supply

• High Flow Capacity: Handles up to 80 l/min for efficient system performance

• Robust Design: Suitable for demanding industrial environments

• Standardized Mounting: Easy integration into existing systems

• Reliable Operation: Ensures precise control of hydraulic actuators

Order Now

Available and ready to ship globally.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
