Siemens 3LD2103-0TK53 | SENTRON 3LD Emergency Switching-Off

Siemens 3LD2103-0TK53 | SENTRON 3LD Emergency Switching-Off Switch

Overview:

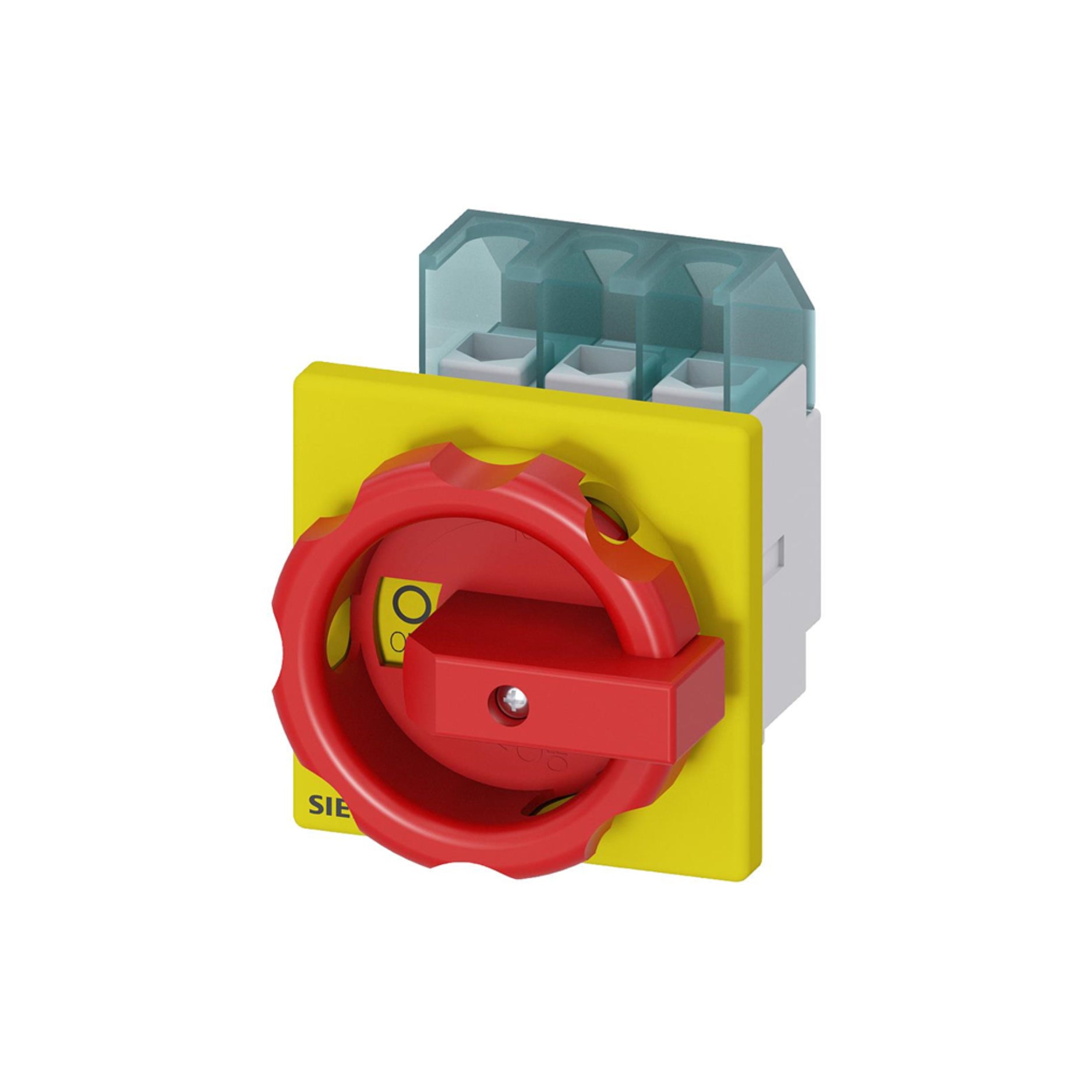

The Siemens 3LD2103-0TK53 is part of the SENTRON 3LD series, engineered to provide dependable emergency switching-off capabilities in industrial environments. This 3-pole switch disconnector is rated for a continuous operational current of 25 A and delivers an operating power of 9.5 kW at AC-23A 400 V. Its design includes a red/yellow rotary actuator for clear visibility and ease of operation during emergency situations. The switch is intended for front mounting with a 4-hole mounting pattern, facilitating straightforward installation in control panels and machinery.

Key Features:

• 3-Pole Configuration: Ensures comprehensive disconnection in three-phase systems.
• Rated Operational Current: 25 A, suitable for various industrial applications.
• Operating Power: 9.5 kW at AC-23A 400 V, accommodating substantial power requirements.
• Rotary Actuator: Red/yellow design enhances visibility and provides intuitive operation.
• Front Mounting: 4-hole mounting pattern allows for secure and accessible installation.
• High Protection Class: Achieves IP65 rating, ensuring resistance against dust and water ingress.

Technical Specifications:

• Product Type: Switch Disconnector
• Part Number: 3LD2103-0TK53
• Number of Poles: 3
• Rated Operational Current (Iu): 25 A
• Operating Power at AC-23A 400 V: 9.5 kW
• Mounting Type: Front-mounted with 4-hole pattern
• Actuator Type: Rotary, red/yellow
• Protection Class: IP65
• Dimensions (W x H x D): 67 mm x 84 mm x 92.5 mm
• Net Weight: Approximately 187 g
• Standards Compliance: UL, CSA, CE, EAC, CCC, VDE

Applications:

• Industrial Automation: Serves as a reliable main switch or emergency stop switch in automated systems.
• Machine Control Panels: Provides essential disconnection means for maintenance and emergency scenarios.
• Power Distribution Units: Ensures safe isolation of electrical circuits during servicing or faults.

The Siemens 3LD2103-0TK53 switch disconnector combines robust construction with essential safety features, making it a dependable choice for emergency switching applications in diverse industrial settings.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
