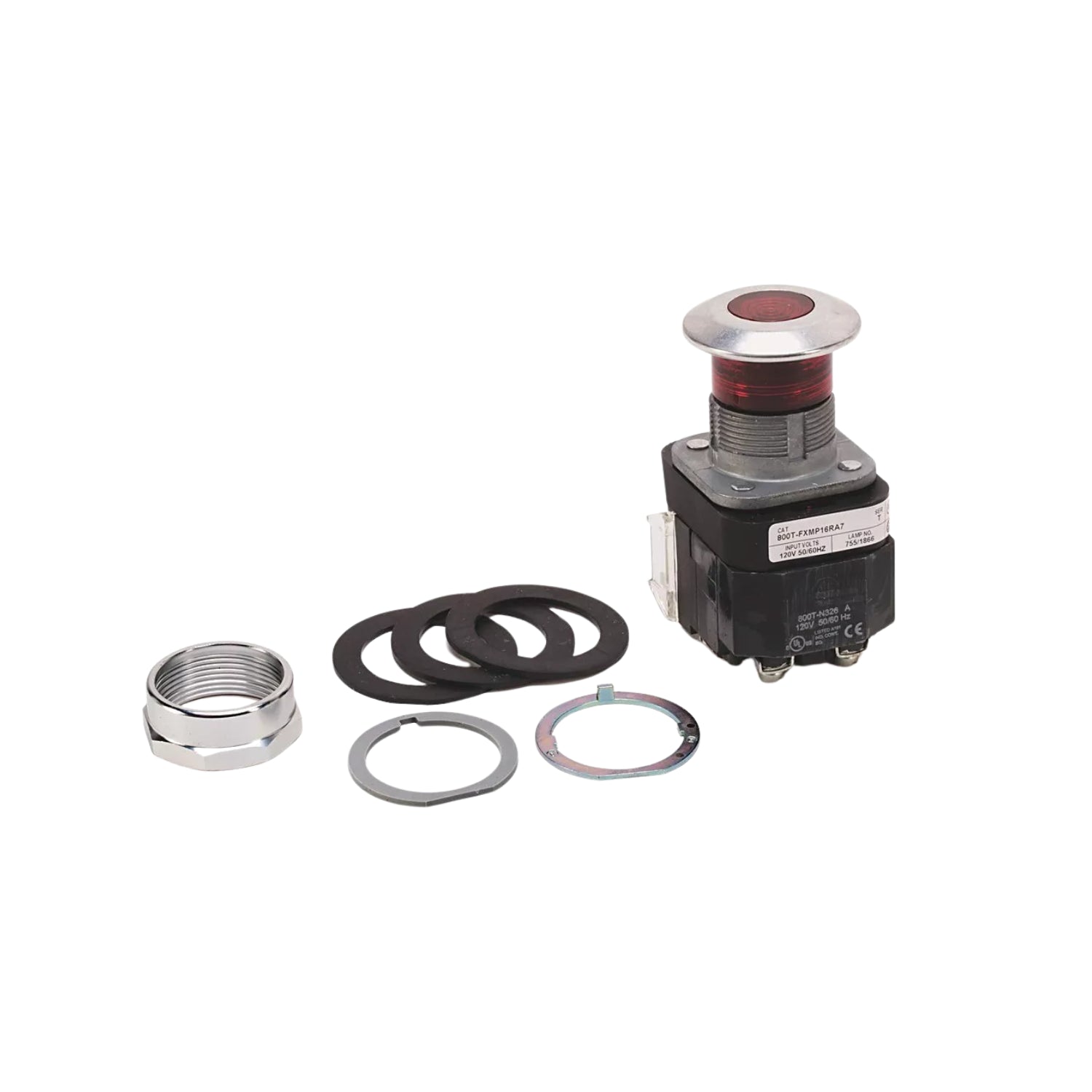

Allen-Bradley 800T-FXMP16RA7 | 3-Position Illuminated Push-Pull Button

Overview:

The Allen-Bradley 800T-FXMP16RA7 is a high-durability 30.5mm illuminated push-pull button, designed for industrial control applications requiring multiple actuation states. Featuring a 3-position operation (Out/Center/In) with momentary and maintained functions, this switch provides clear control indication with a red mushroom head and an incandescent illumination system. Operating at 120V AC (50/60 Hz), it ensures reliable visibility in various industrial environments.

Key Features:

• 30.5mm Push-Pull Operator – Standard industrial panel size
• 3-Position Operation: Out (Momentary), Center (Maintained), In (Maintained)
• Red Mushroom Head – Provides clear operator control
• Incandescent Illumination (120V AC, 50/60 Hz) – Ensures visibility in low-light environments
• 1 NCLB - 1 NC Contacts – Supports flexible circuit integration
• Type 4/13 Enclosure Rating – Protects against dust, water, and oil in industrial settings

Technical Specifications:

• Model: 800T-FXMP16RA7
• Series: 800T Push Button Operators
• Mounting Size: 30.5mm
• Operation Type: Push-Pull (3 Positions)
• Actuation Modes: Out (Momentary) / Center (Maintained) / In (Maintained)
• Head Type: Red Mushroom Head
• Illumination Type: Incandescent
• Operating Voltage: 120V AC, 50/60 Hz
• Contact Configuration: 1 Normally Closed Late Break (NCLB) - 1 Normally Closed (NC)
• Enclosure Rating: Type 4/13

Applications:

• Industrial control panels and automation systems
• Machine start/stop and emergency stop applications
• Operator control stations for manufacturing equipment
• Hazardous environments requiring illuminated controls

Why Choose the 800T-FXMP16RA7?

The Allen-Bradley 800T-FXMP16RA7 Illuminated Push-Pull Button offers high durability, multiple operational positions, and clear visual indication, making it an ideal solution for industrial control applications.
