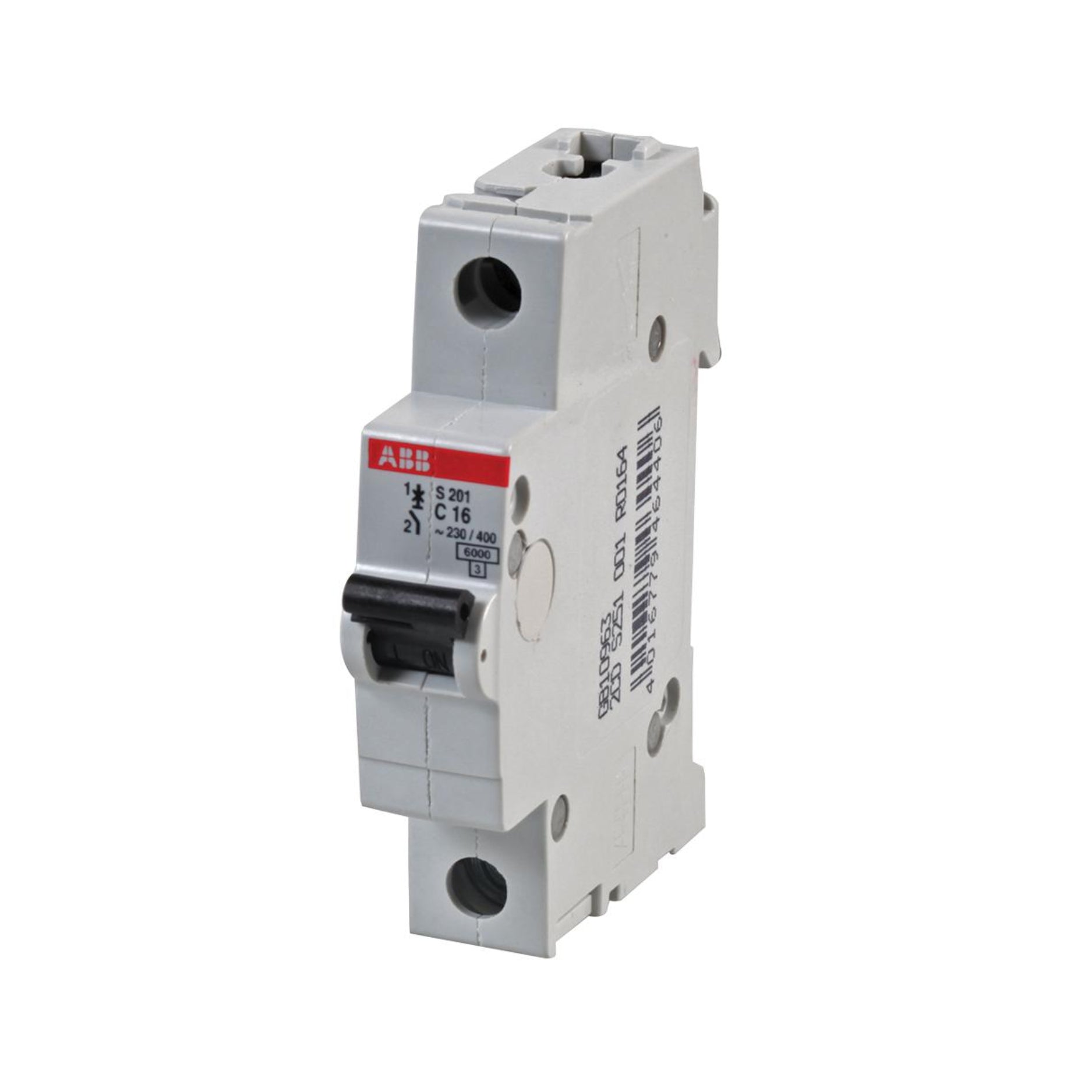

ABB S201-C16 | 2CDS251001R0164 | 16A Miniature Circuit Breaker, 1-Pole, 6 kA

ABB S201-C16 | 16A Miniature Circuit Breaker, 1-Pole, 6 kA

Global Commercial Alias: S201-C16
Product ID: 2CDS251001R0164
ABB Type Designation: S201-C16
Catalog Description: Miniature circuit breaker, 1P, C-curve, 16 A, 6 kA

Overview

The ABB S201-C16 is a 16A 1-pole miniature circuit breaker (MCB) designed for short-circuit and overload protection in residential, commercial, and industrial applications. It features a C-curve tripping characteristic, making it ideal for protecting circuits with moderate inrush currents.

Key Features

• Rated Current: 16 A

• Number of Poles: 1

• Breaking Capacity: 6 kA (IEC/EN 60898-1)

• Tripping Curve: C (moderate inrush current protection)

• Rated Voltage: 230/400 V AC

• Frequency: 50/60 Hz

• Mounting: DIN rail (35 mm)

• Terminal Type: Screw terminal, lift type

• Housing: Flame-retardant thermoplastic

Technical Specifications

• Model Number: S201-C16

• Operating Temperature: -25°C to +55°C

• Electrical Endurance: 10,000 operations

• Mechanical Endurance: 20,000 operations

• IP Rating: IP20

• Standards Compliance: IEC 60898-1, IEC 60947-2

• Certifications: CE, UL, RoHS

Applications

• Residential and commercial electrical distribution

• Industrial control panels

• Lighting and power distribution systems

• Motor and appliance protection

Product Description

The ABB S201-C16 miniature circuit breaker provides reliable short-circuit and overload protection with high breaking capacity and durability. Its compact DIN-rail design ensures easy installation in distribution boards, and the C-curve tripping mechanism makes it suitable for a wide range of electrical loads.

Why Choose ABB S201-C16?

• High-quality, reliable circuit protection

• Quick and easy installation on DIN rail

• Compliance with international safety standards

• Long electrical and mechanical lifespan
