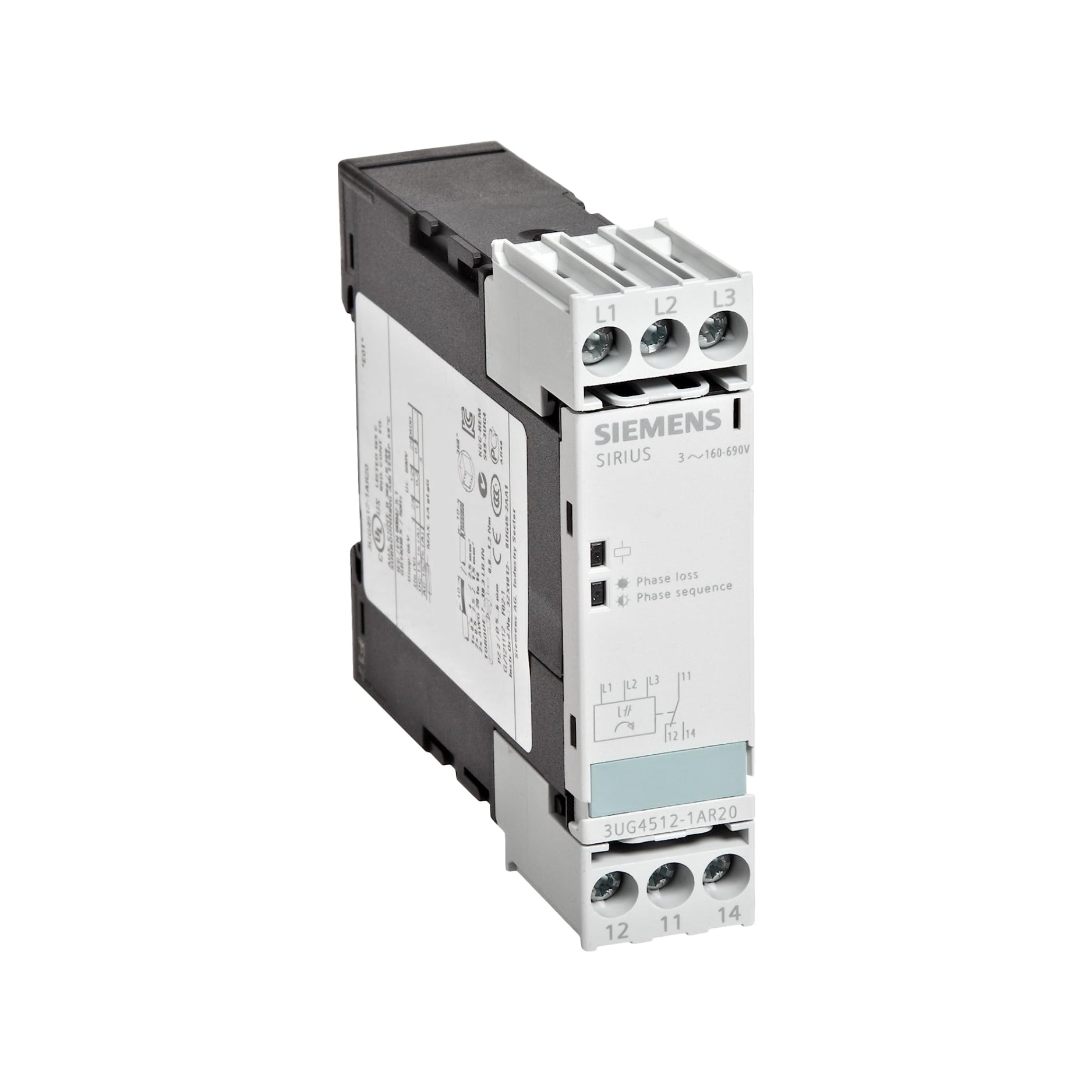

Siemens 3UG4512-1AR20 | SIRIUS Phase Failure and Sequence Monitoring Relay
Overview:
The Siemens 3UG4512-1AR20 is a SIRIUS series monitoring relay engineered to oversee phase failure and sequence in three-phase AC systems. Operating within a voltage range of 160 to 690 V AC at 50 to 60 Hz, this relay is essential for safeguarding motors and other critical equipment from phase-related issues. Its design includes a single changeover contact and screw terminal connections, facilitating straightforward integration into existing control panels.
Key Features:
- Phase Monitoring: Detects incorrect phase sequences and phase failures, preventing potential equipment damage.
- Wide Voltage Range: Accommodates systems operating between 160 to 690 V AC, offering versatility across various applications.
- Compact Design: Features a 22.5 mm width, allowing for space-efficient installation in control cabinets.
- User-Friendly Interface: Equipped with an analog display for real-time monitoring and diagnostics.
- Reliable Contacts: Includes one changeover contact rated for 3 A at 400 V AC, ensuring dependable switching performance.
Technical Specifications:
- Product Type: Phase Failure and Sequence Monitoring Relay
- Part Number: 3UG4512-1AR20
- Voltage Range: 160–690 V AC
- Frequency: 50–60 Hz
- Output Contact: 1 Changeover (SPDT)
- Contact Rating: 3 A at 400 V AC
- Connection Type: Screw Terminals
- Width: 22.5 mm
- Mounting: DIN Rail
- Operating Temperature: -25°C to +60°C
- Protection Rating: IP20
Applications:
- Industrial Automation: Protects motors and machinery from phase loss or incorrect wiring sequences.
- Pumping Systems: Ensures pumps operate with the correct phase sequence, preventing mechanical damage.
- HVAC Systems: Maintains proper operation of compressors and fans by monitoring phase integrity.
- Material Handling: Safeguards conveyors and hoists from phase-related malfunctions.
