Siemens 3SB3400-0A

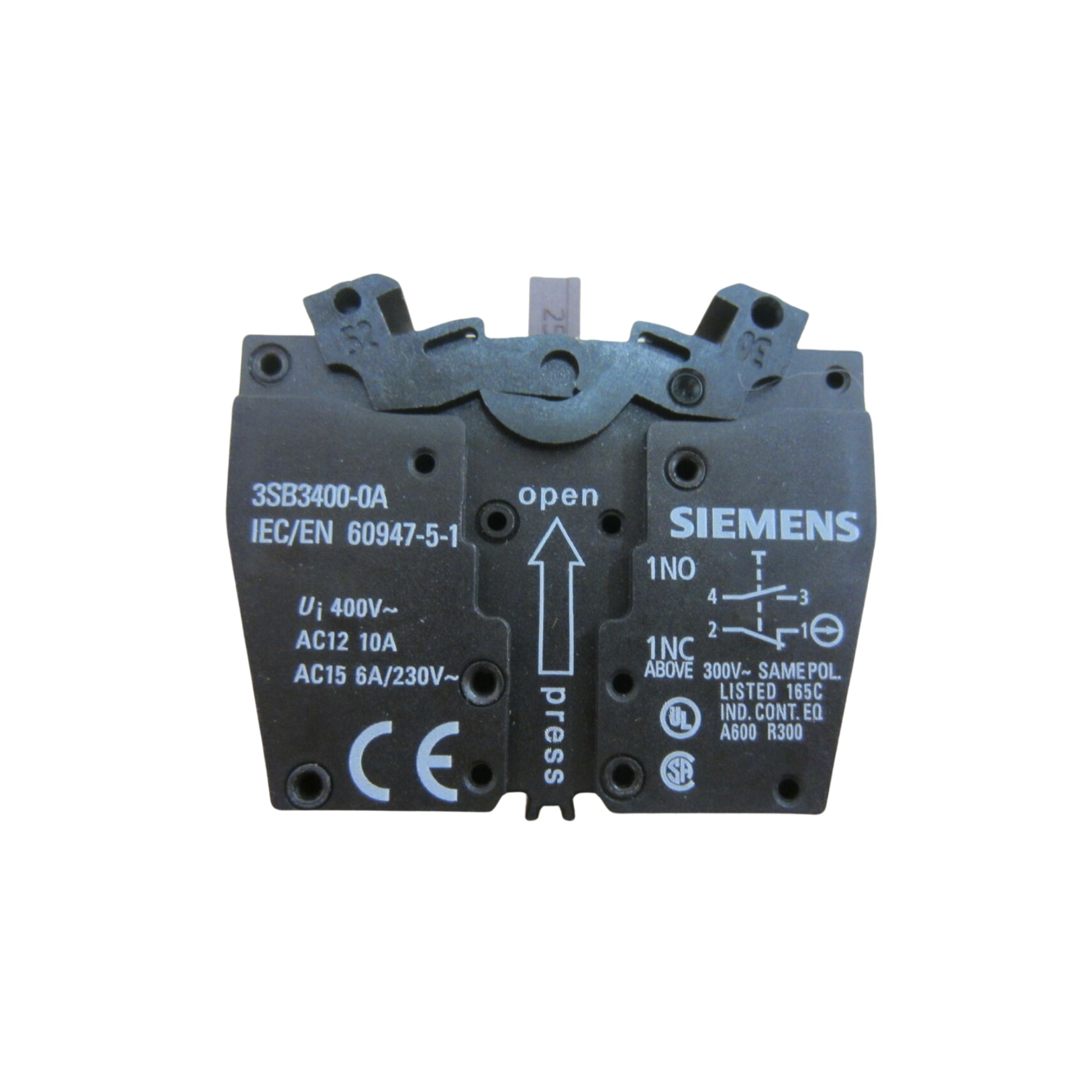

Siemens 3SB3400-0A | Contact Block with 1 NO + 1 NC Contacts

Overview:

The Siemens 3SB3400-0A contact block is engineered to provide reliable switching operations in industrial control systems. It features 1 Normally Open (NO) and 1 Normally Closed (NC) contact, facilitating versatile control configurations. Designed for front plate mounting, it ensures straightforward installation and maintenance. The screw terminal connections offer secure and durable wiring.

Key Features:

• Dual Contact Configuration: Incorporates both NO and NC contacts for flexible control schemes.
• Front Plate Mounting: Simplifies installation in control panels and operator stations.
• Screw Terminals: Provides robust and reliable electrical connections.
• Compact Design: Optimized for space-saving integration into various control setups.

Technical Specifications:

• Product Type: Contact Block
• Part Number: 3SB3400-0A
• Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Mounting Type: Front Plate Mounting
• Terminal Type: Screw Terminals
• Thermal Current Rating: 10 A
• Insulation Voltage: 400 V
• Surge Voltage Resistance: 4 kV
• Degree of Protection: IP20 (Terminal), IP40 (Enclosure)
• Operating Temperature Range: -25°C to +70°C
• Standards Compliance: UL Listed, CSA Certified, IEC/EN Compliant

Applications:

• Industrial Automation: Ideal for use in control circuits requiring both NO and NC contacts.
• Machine Control Panels: Suitable for start/stop operations and interlocking functions.
• Process Control Systems: Enhances control reliability in various industrial processes.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
