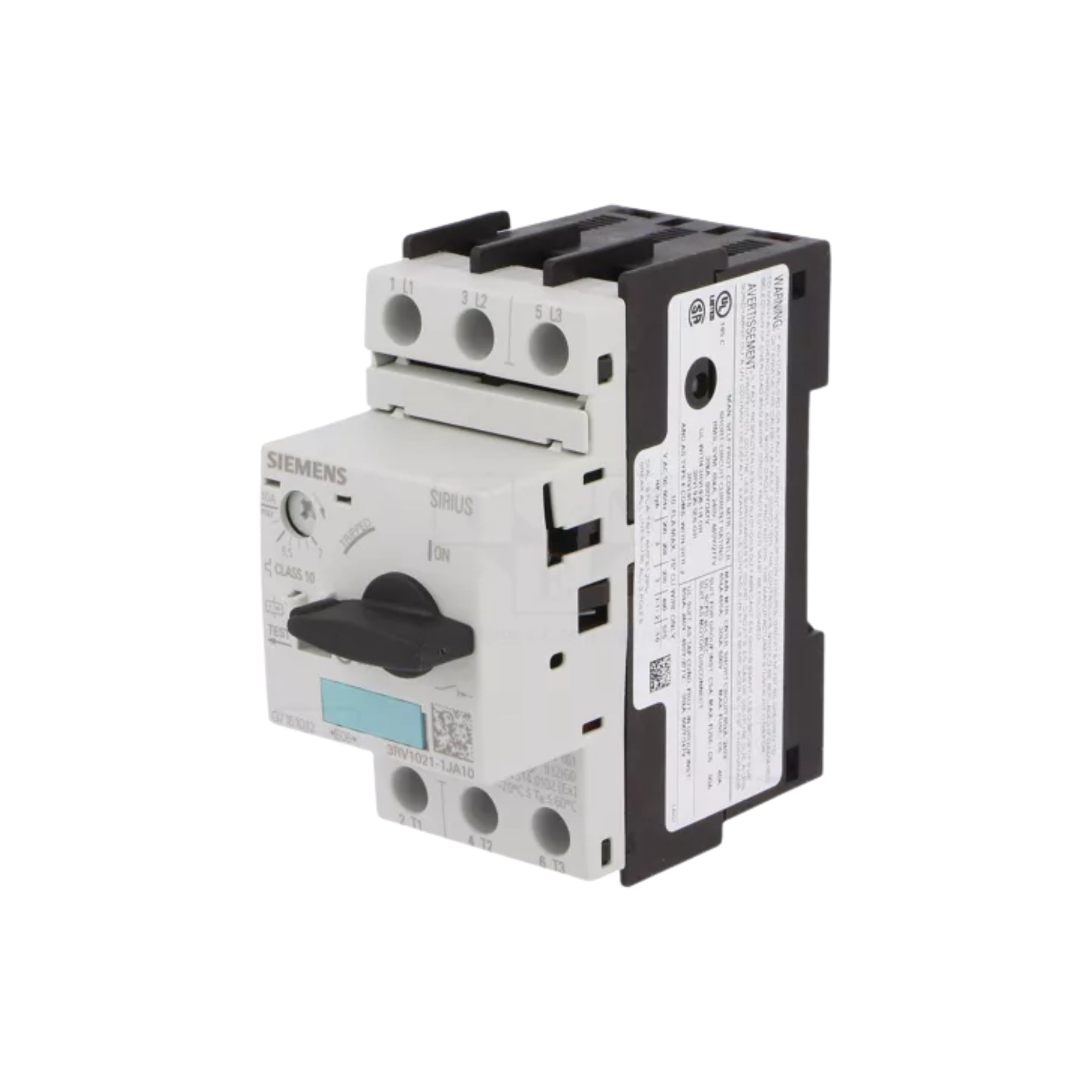

Siemens 3RV1021-1JA10 | Motor Protection Circuit Breaker

Siemens 3RV1021-1JA10 | Motor Protection Circuit Breaker

OVERVIEW

The Siemens 3RV1021-1JA10 is a highly reliable motor protection circuit breaker designed to provide overload and short circuit protection for motors and electrical circuits in industrial applications. This device is ideal for protecting motors against damage caused by overcurrent conditions, ensuring continuous and safe operation. With adjustable settings, it offers flexibility to meet the specific protection needs of various motor types and applications. The 3RV1021-1JA10 is built with a compact design for easy integration into control panels, delivering robust protection in space-constrained environments.

KEY FEATURES

• Model: Siemens 3RV1021-1JA10
• Type: Motor protection circuit breaker
• Overload Protection: Adjustable overload protection settings to safeguard motors from excessive current
• Short Circuit Protection: Protects against short circuits by interrupting the electrical supply
• Compact Design: Saves space and simplifies integration into control systems and panels
• Wide Range of Current Ratings: Suitable for various motor sizes and electrical systems
• Indication and Resetting: LED indicators for operational status, and manual resetting function

TECHNICAL INFORMATION

• Rated Voltage: 230V AC
• Rated Current: 6A
• Mounting Type: DIN rail mountable
• Breaking Capacity: 25kA at 400V AC
• Adjustable Overload Protection: Yes, adjustable from 4A to 6A
• Operating Temperature Range: -25°C to +60°C
• Protection Class: IP20
• Dimensions: 45 x 75 x 120 mm
• Weight: 0.3 kg
• Compliance: CE, UL

APPLICATIONS

• Motor Protection: Ideal for protecting motors in industrial environments against overloads and short circuits
• Control Panels: Used in control panels to ensure reliable protection of electrical circuits and systems
• Automation Systems: Suitable for automation applications where motor protection is critical for system reliability
• Conveyor Systems: Provides protection for motors in material handling and conveyor systems
• HVAC Systems: Protects motors in heating, ventilation, and air conditioning systems

BENEFITS

• Enhanced Motor Protection: Safeguards motors from overloads and short circuits, preventing damage and downtime
• Flexible Settings: Adjustable overload protection settings ensure compatibility with different motor specifications
• Reliable Operation: Designed for continuous and reliable operation in demanding industrial applications
• Space-Efficient: Compact design allows for easy installation and saves space in control panels
• User-Friendly: LED indicators and manual resetting for simple operation and maintenance

The Siemens 3RV1021-1JA10 motor protection circuit breaker ensures optimal protection for motors and electrical circuits, promoting safe and efficient operation in industrial settings.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
