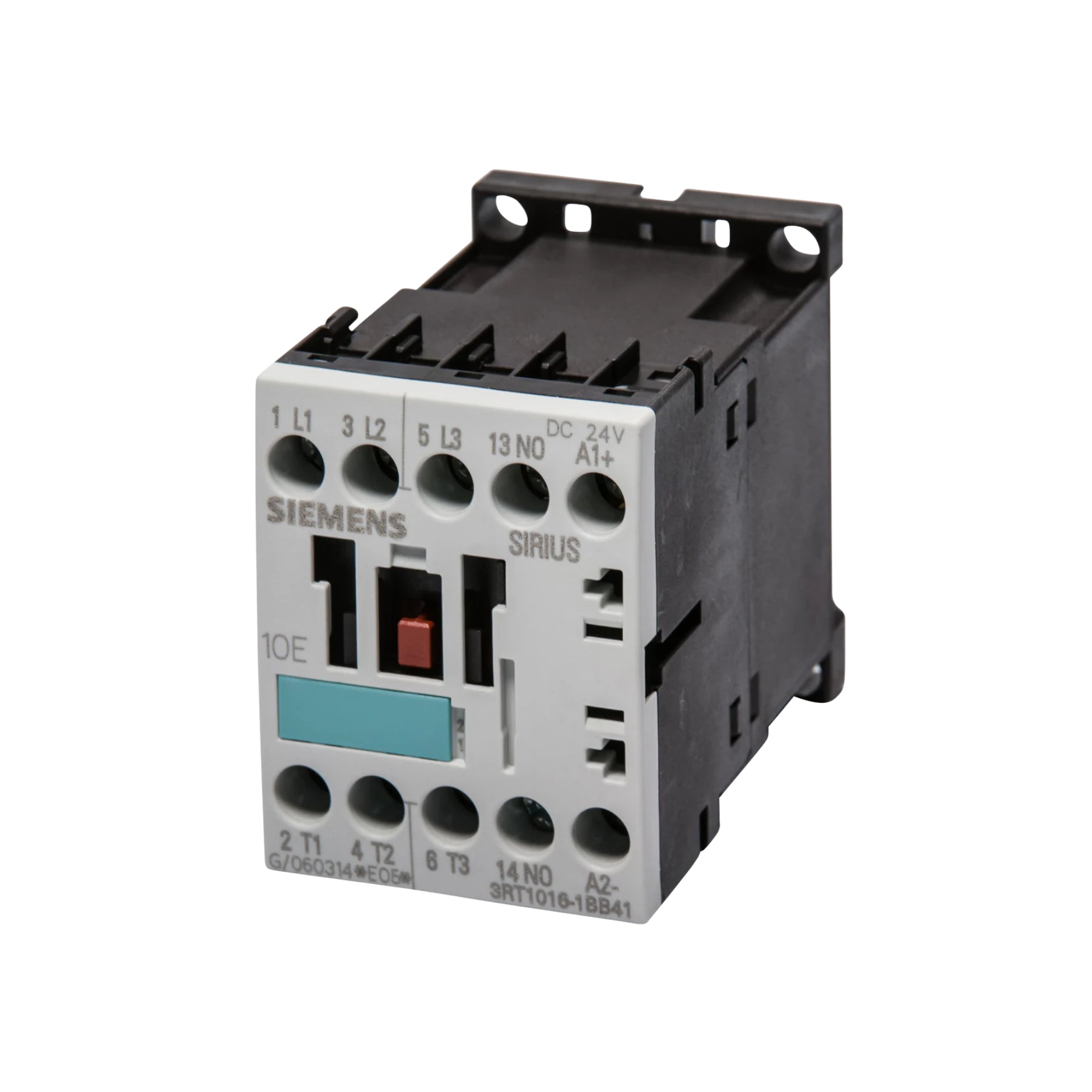

Siemens 3RT1016-1BB41

Siemens 3RT1016-1BB41 | Power Contactor – 3-Pole, 9A, 24V DC Coil, 1NO Auxiliary Contact, Size S00, IP20

Overview

The Siemens 3RT1016-1BB41 is a 3-pole power contactor from the SIRIUS 3RT1 series, designed for switching motors and industrial loads. It features a 24V DC coil, a 9A AC-3 current rating, and includes 1 normally open (1NO) auxiliary contact. Compact and reliable, it fits standard control panel configurations and is well-suited for general industrial automation.

Key Features

• Rated Current (AC-3): 9A @ 400V

• Rated Power: Up to 4 kW @ 400V (AC-3)

• Control Voltage: 24V DC

• Main Contacts: 3 NO (main poles)

• Auxiliary Contact: 1 NO built-in

• Contactor Size: S00 (compact)

• Protection Rating: IP20

• Mounting: DIN rail or screw mount

Technical Specifications

• Part Number: 3RT1016-1BB41

• Series: SIRIUS 3RT1

• Terminal Type: Screw terminals

• Electrical Life: Up to 1 million operations

• Mechanical Life: Up to 10 million operations

• Ambient Temperature: –25°C to +60°C

• Dimensions (W x H x D): Approx. 45 x 58 x 73 mm

• Weight: Approx. 250 g

• Certifications: CE, UL, CSA, RoHS

Applications

• Direct-on-line motor starting

• HVAC and pump control

• Conveyor systems

• General machine control

• Automation panels and switching cabinets

Why Choose the 3RT1016-1BB41?

• Compact Size: Ideal for space-limited enclosures

• Reliable Coil Operation: 24V DC coil ensures safe, consistent switching

• Integrated Auxiliary Contact: Saves space and simplifies wiring

• Versatile Mounting: DIN rail or panel mount ready

• Siemens Quality: Built for performance and long service life

Order Now

The Siemens 3RT1016-1BB41 contactor is in stock and ready for international delivery.

NEW product in original sealed packaging. The product may be of older version or design. The packaging may have markings, signs of discoloration, and wear. DDPARTSSOLUTION Warranty: 1 Year. Manufacturer's Warranty and Support NEVER apply
