Overview

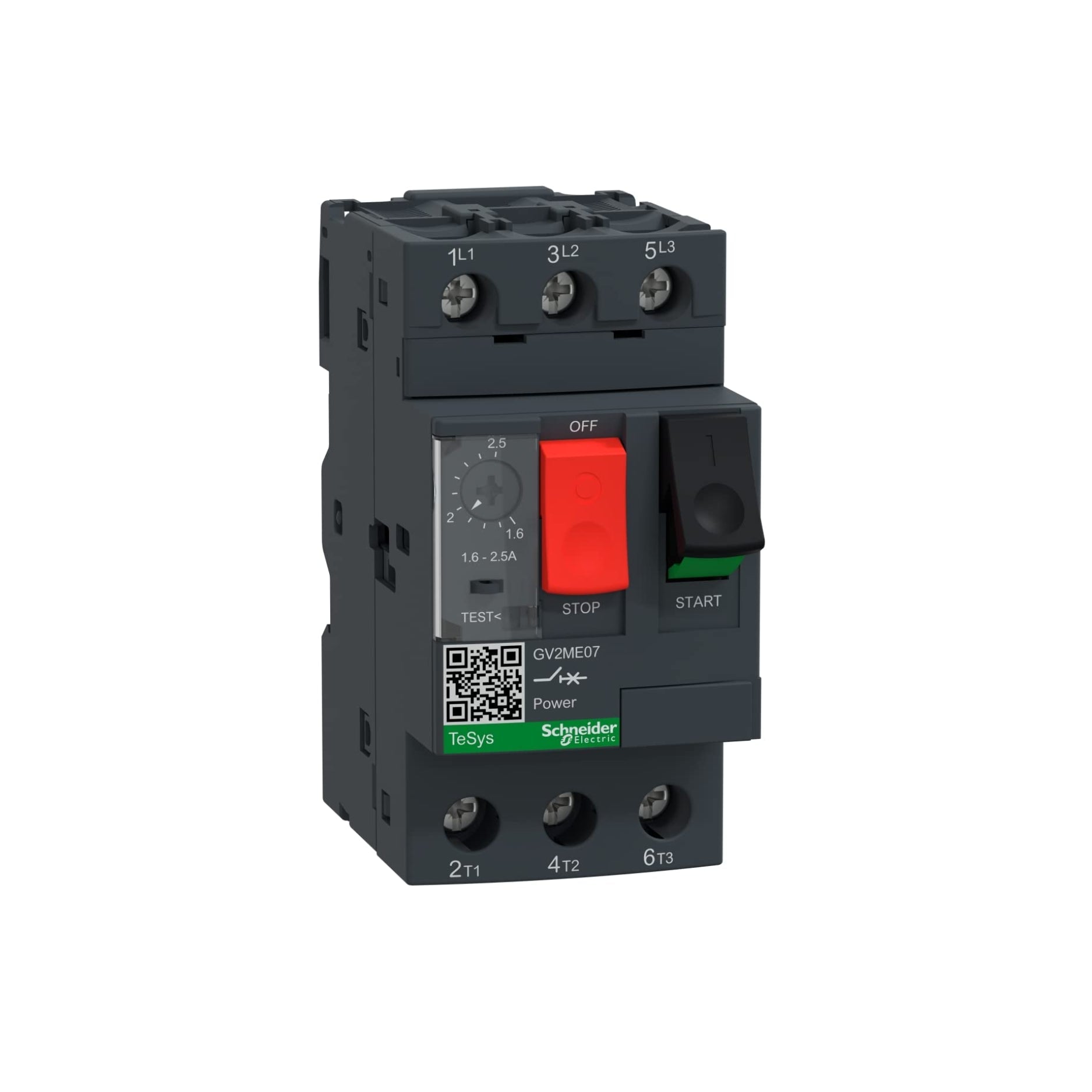

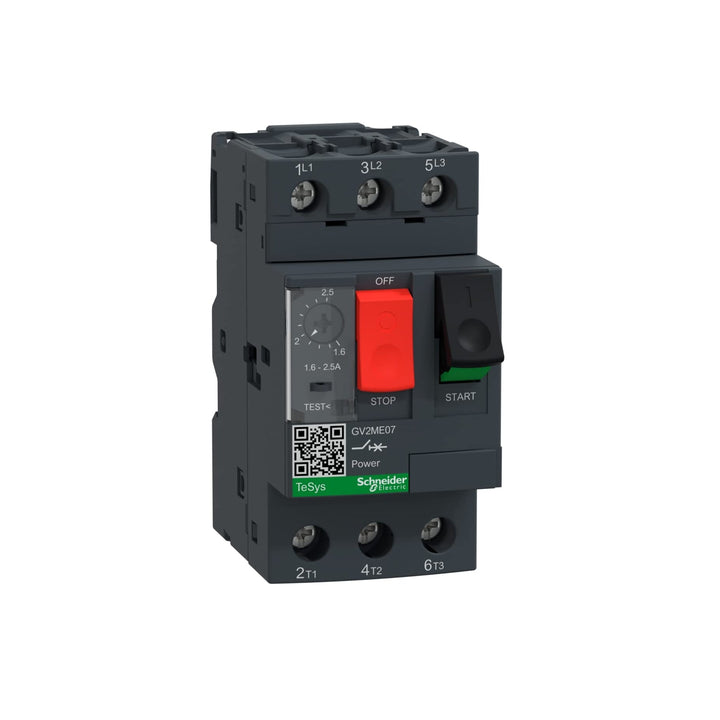

The Schneider Electric GV2ME07 is a 3-pole motor circuit breaker from the TeSys Deca series, designed to provide manual motor control and protection against overloads and short circuits. With a thermal-magnetic trip unit, it offers an adjustable thermal protection range of 1.6 to 2.5 A, making it suitable for motors up to 0.75 kW at 400 V AC.

Key Features

• Adjustable Thermal Protection: 1.6 to 2.5 A

• Magnetic Tripping Current: Fixed at 33.5 A

• Breaking Capacity: Up to 100 kA at 400/415 V AC

• Control Type: Push-button operation

• Mounting Options: DIN rail or panel mounting

• Terminal Type: Screw clamp terminals

Technical Specifications

• Rated Operational Voltage (Ue): Up to 690 V AC 50/60 Hz

• Rated Insulation Voltage (Ui): 690 V AC

• Rated Impulse Withstand Voltage (Uimp): 6 kV

• Utilization Category: AC-3 (IEC 60947-4-1), Category A (IEC 60947-2)

• Mechanical Durability: 100,000 cycles

• Electrical Durability: 100,000 cycles at AC-3, 415 V

• Operating Temperature: -20°C to +60°C

• Protection Degree: IP20 (IEC 60529)

• Dimensions (W x H x D): 45 mm x 89 mm x 78.5 mm

• Weight: Approximately 0.26 kg

Applications

• Motor Protection: Provides overload and short-circuit protection for motors up to 0.75 kW at 400 V AC.

• Industrial Automation: Suitable for use in motor control centers and industrial machinery.

• Process Control: Ensures reliable motor operation in various process control applications.

Why Choose the Schneider Electric GV2ME07?

• Comprehensive Protection: Combines manual isolation, motor control, and thermal overcurrent protection in one compact unit.

• High Breaking Capacity: Offers up to 100 kA breaking capacity at 400/415 V AC, ensuring robust performance in demanding environments.

• Flexible Installation: Supports both DIN rail and panel mounting, providing versatility in various installation scenarios.

• Reliable Performance: Designed for high mechanical and electrical durability, ensuring long service life.
